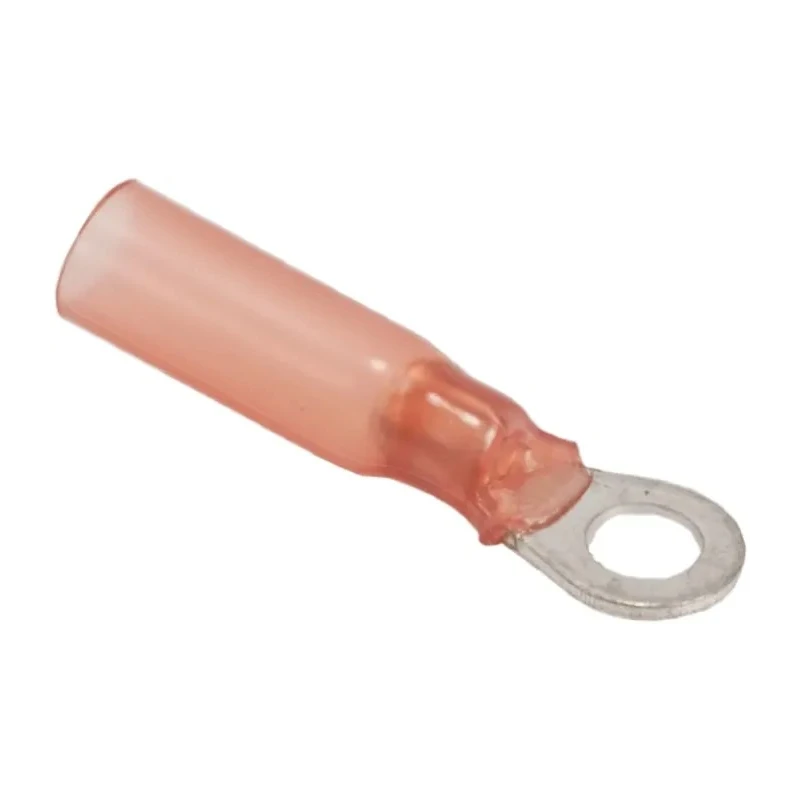

TE Connectivity DuraSeal Insulated Ring Terminal 4 mm Stud Size 22 AWG 18 AWG Wire Red 138601-000
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 0.79mm |
| Insulation | Insulated |
| Overall Length | 31.98mm |
| Contact Material | Copper |
| Series | DuraSeal |
| Maximum Operating Temperature | 125°C |
| Insulation Material | Nylon |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Outer Ring Diameter | 8mm |
| Inner Ring Diameter | 4.3mm |
| Stud Size | 4 mm |
Key Features
- Constructed with copper contact material for excellent conductivity.
- Contact plating is tin for corrosion resistance.
- Insulation made from durable heat-shrinkable nylon tubing with hot-melt adhesive lining.
- Designed to withstand harsh environments with resistance to water, salt, vibration, and mechanical abuse.
- Overall length of 31.98 mm for secure cable connections.
- Suitable operating temperature range from -55°C to 125°C.
- Inner ring diameter of 4.3 mm and outer ring diameter of 8 mm.
- Compatible with wire sizes from 0.5 mm² (22 AWG) to 1 mm² (18 AWG).
Product Description
TE Connectivity 138601-000 DuraSeal Insulated Ring Terminal features a nylon insulated design with heat-shrinkable tubing lined with hot-melt adhesive, ensuring a secure, waterproof, and corrosion-resistant termination. This ring terminal supports wire sizes from 22 AWG to 18 AWG (0.5 mm² to 1 mm²) and fits a 4 mm stud, making it ideal for robust industrial, automotive, marine, and electrical applications where environmental protection is paramount.
The terminal's copper contact with tin plating provides excellent electrical conductivity and long-term corrosion resistance. Its rugged insulation protects connections from mechanical stress, abrasion, vibration, and environmental elements, enhancing reliability in demanding conditions. The temperature rating from -55°C up to 125°C guarantees performance under extreme temperatures.
The DuraSeal series's carefully engineered construction with an overall length of 31.98 mm and inner and outer ring diameters of 4.3 mm and 8 mm respectively ensures a secure, professionally finished connection.
TE Connectivity's ring terminals are UL Listed and designed for use in automotive assembly lines and marine electrical systems, supporting efficient and reliable cable termination with environmental sealing. The heat-shrinkable sleeve is activated by heating after crimping to create a watertight seal with adhesive flow.
Constructed with copper contact material for excellent conductivity. Contact plating is tin for corrosion resistance. Durable nylon insulation with heat-shrinkable tubing and hot-melt adhesive lining. Strong resistance to water, salt, abrasion, vibration, and mechanical abuse.
Fits wire sizes from 22 AWG to 18 AWG with 4 mm stud size. Operating temperature range between -55°C and 125°C. Overall length of 31.98 mm with precise ring diameters. UL Listed quality standard ensuring safety and performance.
Suitable for automotive and marine environmental sealing applications. Easy installation with heat-activated shrink tubing sealing the connection.
This ring terminal from TE Connectivity is an essential component for electrical assemblies requiring reliable, sealed connections in harsh environments. Explore more Ring Terminal options and TE Connectivity products on EnvMart for comprehensive industrial electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 125°C.
It is compatible with wire sizes from 22 AWG (0.5 mm²) to 18 AWG (1 mm²).
The stud size for this terminal is 4 mm.
The terminal features a copper contact material with tin plating for corrosion resistance, and it is insulated with nylon.
The inner ring diameter is 4.3 mm and the outer ring diameter is 8 mm.
The overall length of this model is 31.98 mm.
Yes, it is designed to withstand harsh environments with resistance to water, salt, vibration, and mechanical abuse.
The insulation is made from durable heat-shrinkable nylon tubing with a hot-melt adhesive lining.
The minimum operating temperature is -55°C.
This terminal is UL Listed, ensuring it meets safety and performance standards.
It is suitable for automotive, marine, and electrical applications requiring reliable sealed connections in demanding conditions.
The heat-shrinkable sleeve is activated by heating after crimping to create a watertight seal with adhesive flow.
