TE Connectivity PIDG Insulated Ring Terminal M3.5 Stud Size 26 AWG to 22 AWG Yellow Nylon Sleeve 16.41mm Overall 323915

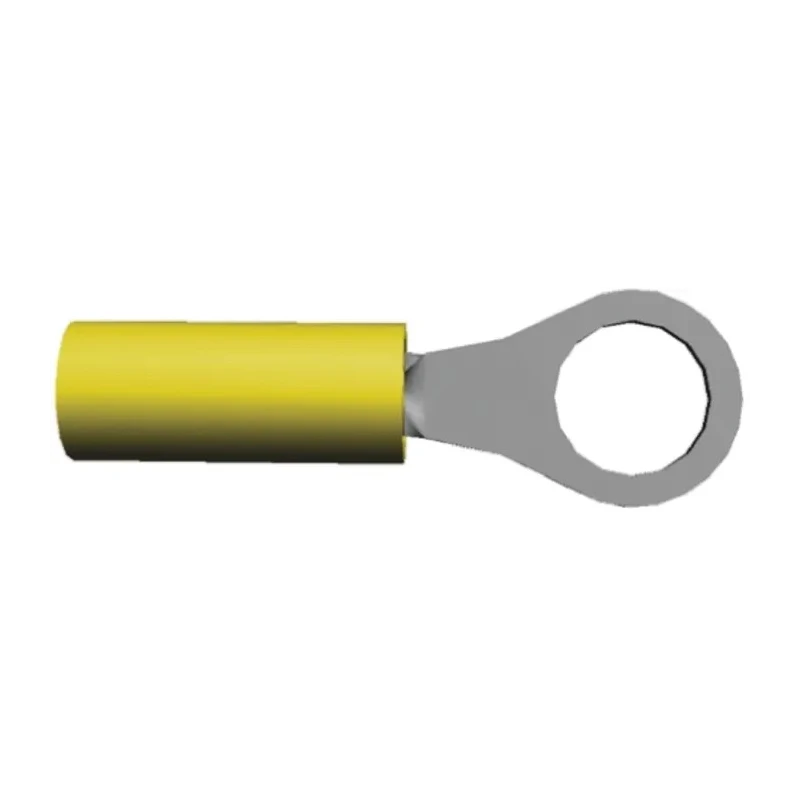

TE Connectivity 323915 PIDG Insulated Ring Terminal is engineered for reliable and consistent wire crimping in electronic components and power connector applications. This terminal is suitable for wire sizes from 26 AWG to 22 AWG and features an M3.5 stud size with a 16.41mm overall length. The ring terminal is insulated with a durable yellow nylon sleeve, enhancing wire identification and protection.

The copper body of the terminal provides high electrical conductivity, while the copper sleeve supports insulation integrity and prevents wire fraying. Serrations inside the barrel ensure strong mechanical and electrical connections by maximizing contact surface and tensile strength after crimping. The funnelled wire entry design facilitates easy and fast wire insertion, optimizing production speed without sacrificing quality.

These PIDG (Pre-Insulated Diamond Grip) terminals comply with stringent wiring standards and meet or exceed MIL-T-7928 requirements for Type II, Class 1 and 2 terminals. They are commonly used across multiple industries including instrumentation, control panels, lighting equipment, power supplies, transportation, motors, aerospace, and household appliances, offering versatile connectivity solutions.

The operating temperature limit of 105°C guarantees performance reliability under elevated thermal conditions. With specialized tool compatibility and precise construction, these ring terminals deliver uniform, secure crimps required in demanding electrical and electronic environments.

High conductivity copper body for efficient electrical flow. Copper sleeve provides improved insulation support to prevent fraying. Serrated wire barrel maximizes contact and tensile strength. Color-coded nylon insulation sleeve for identification and protection.

Funnelled entry design for quick and secure wire insertion. Meets or exceeds MIL-T-7928, Type II, Class 1 and 2 standards. Suitable for instrumentation, control, lighting, power supply, aerospace, and motor applications.

Maximum operating temperature of 105°C for high-temperature environments. Explore related Ring Terminal products and connectors available on EnvMart for your electronic component needs.
