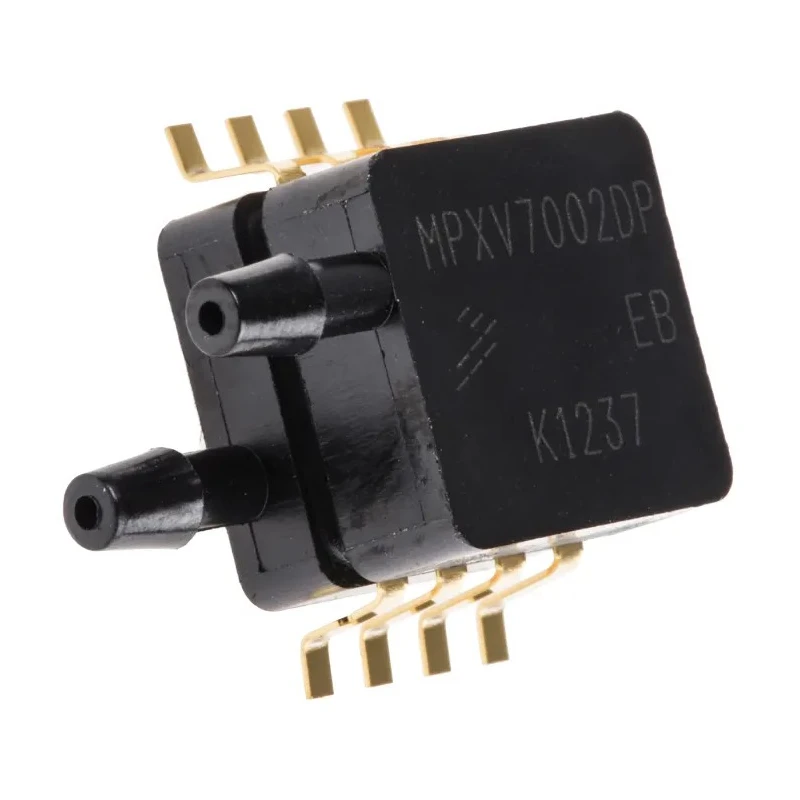

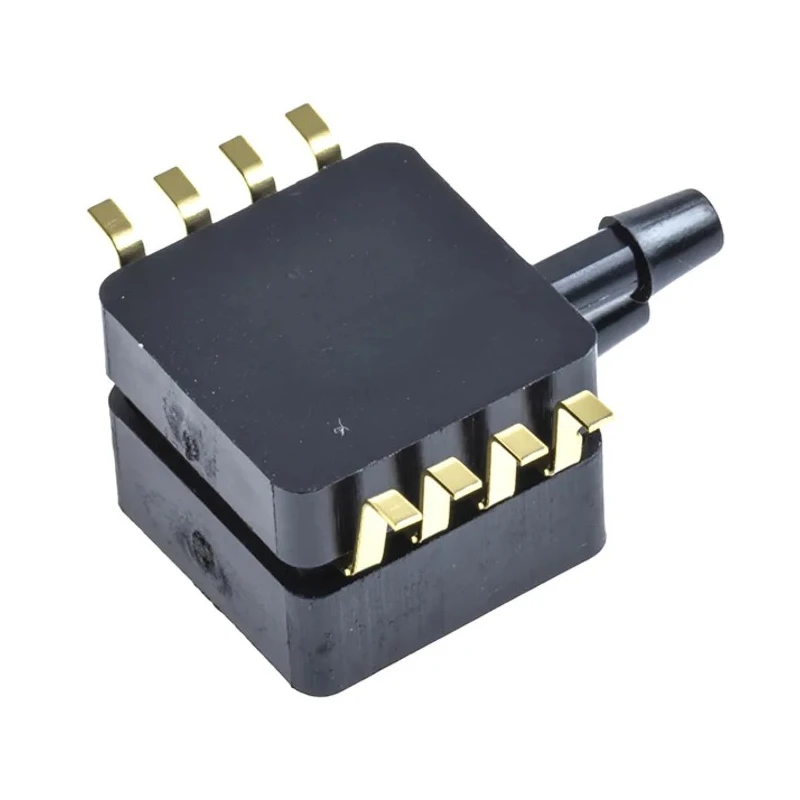

NXP Differential Pressure Sensor Surface Mount 8 Pin DIP MPXV7002DP

The NXP MPXV7002DP is a precise differential pressure sensor designed for surface mount applications providing accurate pressure measurement with a compact 8-pin DIP package. It operates efficiently within supply voltages from 4.5V to 5.25V, delivering a maximum output voltage of 4.5V. This sensor measures differential pressures in the range of -2 kPa to 2 kPa with an accuracy of ±2.5%, making it suitable for sensitive industrial, laboratory, HVAC, and analytical instrumentation uses.

Measuring just 700μm in length, 400μm in width, and 300μm in height, the sensor provides easy PCB integration while offering robust performance. Its dual radial barbed ports facilitate connection to pressure sources, ideal for vacuum or gauge differential pressure sensing. The device withstands a maximum overload pressure of 75 kPa, ensuring durability.

This sensor operates over a temperature range of 10°C to 60°C, making it suitable for varied environmental conditions in manufacturing and process monitoring. It is particularly valuable in applications requiring precise differential pressure readings for flow, level, or pressure regulation systems.

Highly accurate differential pressure sensing with ±2.5% accuracy. Compact surface mount 8 pin DIP package for PCB mounting. Wide operating voltage range from 4.5V to 5.25V supply. Robust dual radial barbed ports for reliable pressure connections.

Compact physical dimensions enhance integration capabilities. Suitable for vacuum and gauge pressure measurements. Designed for industrial, laboratory, HVAC, and manufacturing use. Durable construction with a 75 kPa maximum overload pressure rating.

Operating temperature range supports most ambient industrial environments.

This NXP differential pressure sensor is essential in electronic and industrial instrumentation for accurate pressure monitoring and control. Explore more Pressure Sensor ICs on EnvMart for your applications.
