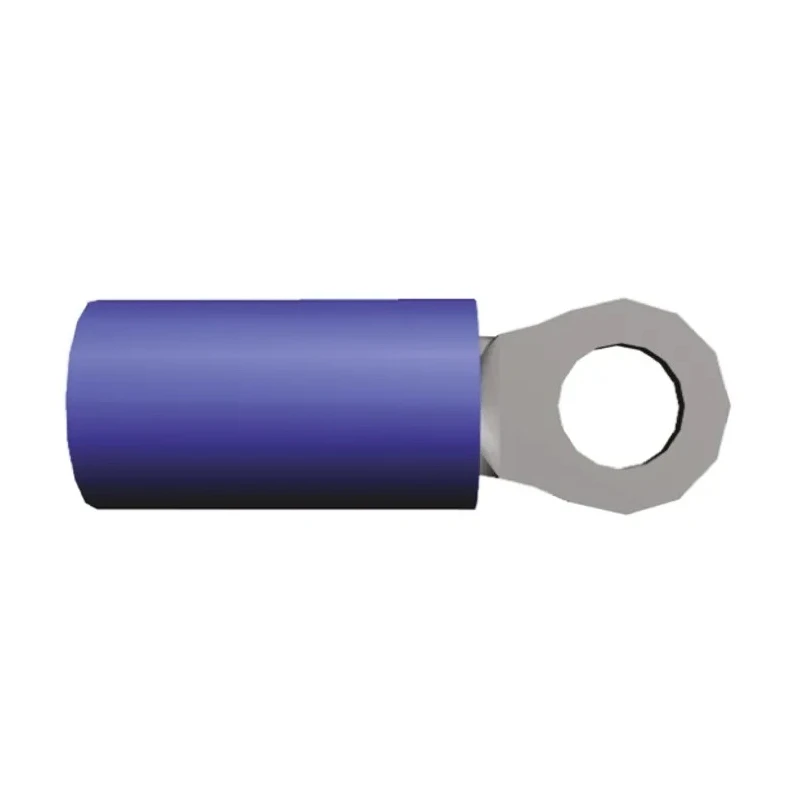

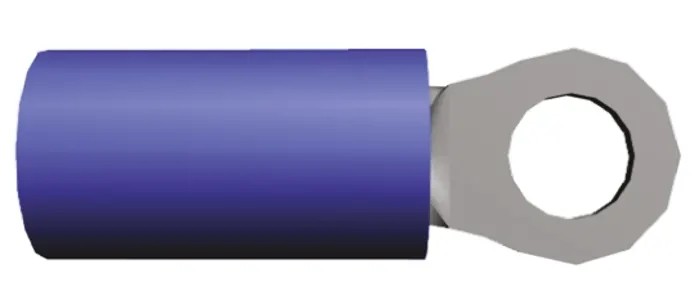

TE Connectivity PLASTI-GRIP Insulated Ring Terminal M5 Stud Size 16 AWG 14 AWG Wire Size Blue 342144-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| THICKNESS | 0.79mm |
| Model | 342144-1 |
| Insulation | Insulated |
| Overall Length | 22.4mm |
| Contact Material | Copper |
| Series | PLASTI-GRIP |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Vinyl |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Stud Size | M5 |
Key Features
- The terminal supports wire sizes ranging from 16 AWG to 14 AWG.
- M5 stud size offers secure mechanical connection.
- Constructed with high conductivity tin-plated copper for excellent electrical performance.
- Overall length of 22.4 mm and thickness of 0.79 mm for compact installation.
- Operating temperature rated up to 105°C for reliability in demanding environments.
- Vinyl insulation sleeve rated to 94V-0 for high dielectric strength.
- Serrated inner barrel improves tensile strength and electrical contact after crimping.
- Blue color coding allows for easy identification of wire size compatibility.
Product Description
TE Connectivity 342144-1 PLASTI-GRIP Insulated Ring Terminal is engineered for reliable electrical connectivity in industrial, electronics, manufacturing, and power distribution applications. It features a high dielectric strength vinyl insulation sleeve that offers protection against electrical shorts and environmental factors.
The copper contact is tin plated to resist corrosion and ensure low electrical resistance. This ring terminal is designed to accommodate wire sizes ranging from 16 AWG (1.0 mm²) to 14 AWG (2.5 mm²) making it suitable for moderate current carrying conductors.
The M5 stud size provides a secure mechanical fastening point suitable for industrial control panels and wiring harnesses. The overall length of 22.4 mm and 0.79 mm thickness allow for installation in confined areas without sacrificing mechanical robustness.
The serrated inner barrel facilitates maximum electrical contact and tensile strength once crimped, enhancing long-term reliability in electrical connections. The vinyl insulation sleeve is 94V-0 rated for flame resistance and rated for operating temperatures up to 105°C, suitable for demanding operational environments.
The terminal supports wire sizes ranging from 16 AWG to 14 AWG. M5 stud size ensures strong mechanical connection. High conductivity copper contact with tin plating for durability. Compact size of 22.4 mm length and 0.79 mm thickness.
Vinyl insulation rated 94V-0 for safety and protection. Serrated inner barrel for superior electrical contact. Blue color coding for wire size easy identification. Maximum operating temperature of 105°C.
This ring terminal is ideal for electronics assembly, electrical wiring, automotive wiring harnesses, and various manufacturing and industrial use cases. It conforms to RoHS standards ensuring environmental compliance.
Explore the TE Connectivity range and other quality Ring Terminals and connectors from the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal supports wire sizes ranging from 16 AWG to 14 AWG, which corresponds to 1.0 mm² to 2.5 mm².
The stud size for this ring terminal is M5, providing a secure mechanical connection.
It is rated for a maximum operating temperature of 105°C, making it suitable for demanding environments.
The contact material is copper, which is tin-plated to resist corrosion and ensure low electrical resistance.
The overall length is 22.4 mm and the thickness is 0.79 mm, allowing for compact installation in confined spaces.
It features a high dielectric strength vinyl insulation sleeve that is rated to 94V-0 for flame resistance.
The serrated inner barrel improves tensile strength and electrical contact after crimping, enhancing long-term reliability.
Yes, this terminal conforms to RoHS standards, ensuring environmental compliance.
It features blue color coding for easy identification of wire size compatibility.
The terminal is manufactured in India.
This model is suitable for applications in electronics assembly, electrical wiring, automotive wiring harnesses, and various manufacturing uses.
The tin plating on the copper contact helps to resist corrosion, ensuring better electrical performance and longevity of the connection.
