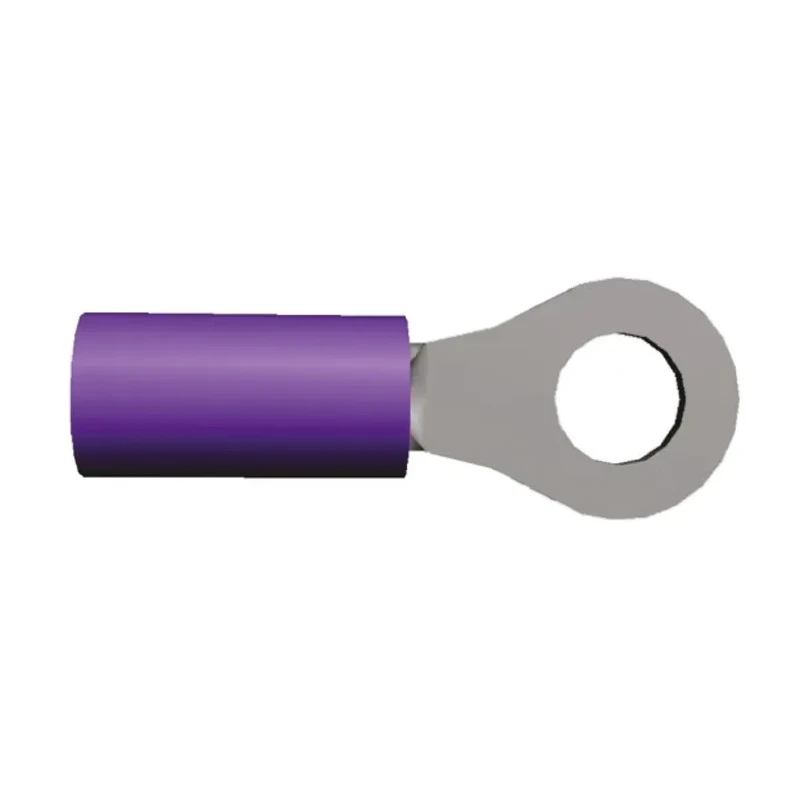

TE Connectivity PIDG Insulated Ring Terminal, M3.5 Stud Size, 20 AWG Wire Size, Red Purple 152895

TE Connectivity 152895 PIDG Insulated Ring Terminal is engineered to provide uniform reliability in demanding electronic circuit environments. It features a precision-formed, high conductivity copper body and barrel, enhancing electrical conductivity.

The wire barrel incorporates internal serrations to maximize contact and tensile strength after crimping. A copper sleeve surrounds the wire barrel, delivering additional insulation support and preventing wire fraying.

Insulated with color-coded nylon sleeves in red and purple for straightforward wire size identification, the terminal enables efficient and error-proof installation. A funnelled entry prevents turned-back wire strands and allows for fast wire insertion during high-speed manufacturing processes.

This terminal is designed for 20 AWG wire size and includes a stud size of M3.5 with precise outer and inner ring diameters of 7.14 mm and 3.68 mm respectively, and a thickness of 0.79 mm.

Operating reliably up to 105°C, it meets RoHS standards for restricted hazardous substances, ensuring it is environmentally compliant. The PIDG terminals are suitable for a wide range of industrial and commercial applications, including instrumentation, control systems, lighting, panel boxes, transportation, and aerospace sectors.

Constructed with high conductivity copper for reliable performance. Features insulated nylon sleeves for wire protection and color coding. Designed with serrations inside the barrel to ensure maximum contact and tensile strength after crimping.

Suitable for 20 AWG wire sizes with a stud size of M3.5. Operating temperature up to 105°C ensures durability in various environments. Color coded sleeves allow easy wire size and tooling identification. Funnelled wire entry design enables fast wire insertion during production.

Compliance with RoHS standards ensures environmental safety.

These ring terminals enhance wiring reliability and manufacturing efficiency in various electronic and electrical assemblies. Available from EnvMart, explore more products in Electronics Components and Ring Terminals for your industrial needs.
