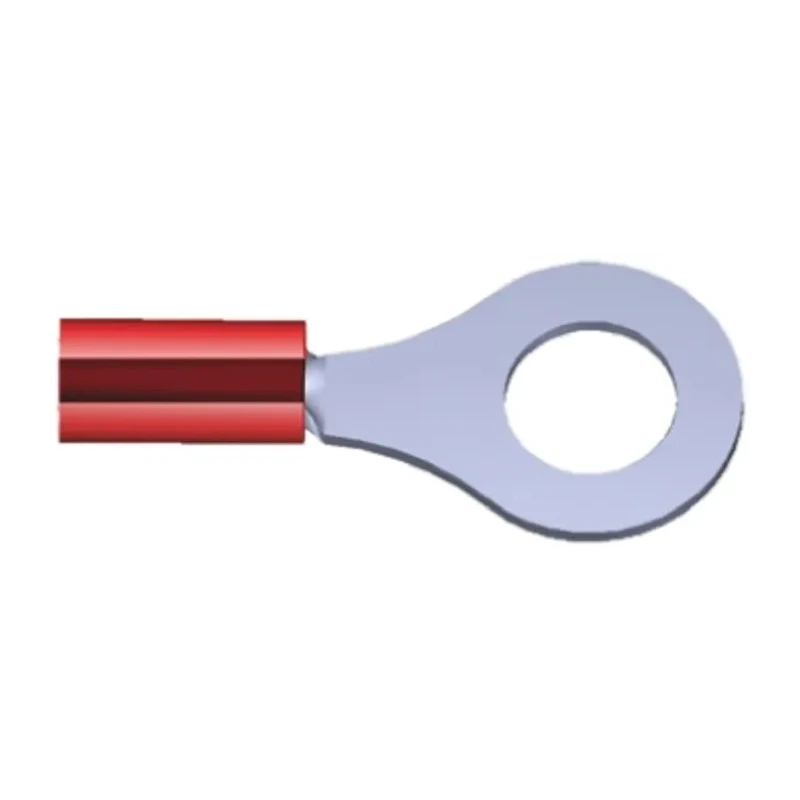

TE Connectivity PIDG Insulated Ring Terminal, M6 Stud Size, 22 AWG to 16 AWG Wire Size, Red 2-320571-4

TE Connectivity 2-320571-4 PIDG Insulated Ring Terminal is a precision-engineered electrical connector designed for creating secure and reliable wire connections in industrial and commercial applications. This ring terminal features a high conductivity copper body and barrel with internal serrations to ensure maximum contact and tensile strength after crimping. The barrel is surrounded by a copper sleeve which enhances wire insulation support and prevents wire fraying.

The outer red nylon sleeve provides easy wire size identification and a funnelled entry which facilitates fast wire insertion, making this terminal ideal for high-speed production environments. With a stud size of M6, and wire size compatibility from 22 AWG to 16 AWG, this terminal is versatile for many wiring needs.

Constructed with durability in mind, this ring terminal supports maximum operating temperatures up to 105°C and has a thickness of 0.79mm, making it ideal for use in demanding environments such as aerospace, transportation, control instrumentation, power supplies, panel boards, lifting equipment, and motors.

This PIDG (Pre-Insulated Diamond Grip) series terminal meets rigorous industrial standards and provides reliable electrical performance, ensuring uniform crimps when used with the appropriate specialized crimping dies. The precise design reduces wiring errors and provides consistent quality in electrical connections.

High conductivity copper body for superior electrical performance. Nylon insulation sleeve is colour-coded red for quick wire gauge identification. Serrated wire barrel to maximize contact reliability and tensile strength.

Copper sleeve inside the barrel improves wire insulation and prevents strand fraying. Funnelled entry enables easy wire insertion, improving assembly efficiency. Supports wire sizes ranging from 22 AWG to 16 AWG for widespread applications.

Stud size M6 ensures compatibility with matching connectors and equipment. Rated for maximum operating temperature of 105°C for high-temperature applications.

This PIDG ring terminal is suitable for use in industrial, automotive, aerospace, manufacturing, electrical, and commercial wiring applications where durability and safety are critical. It ensures reliable and efficient electrical connections in control panels, power supplies, motors, transport systems, and various electrical instrumentations.
