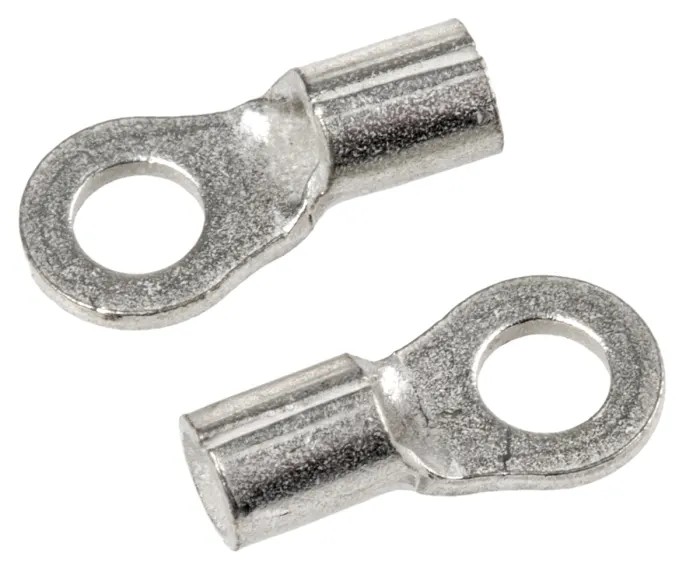

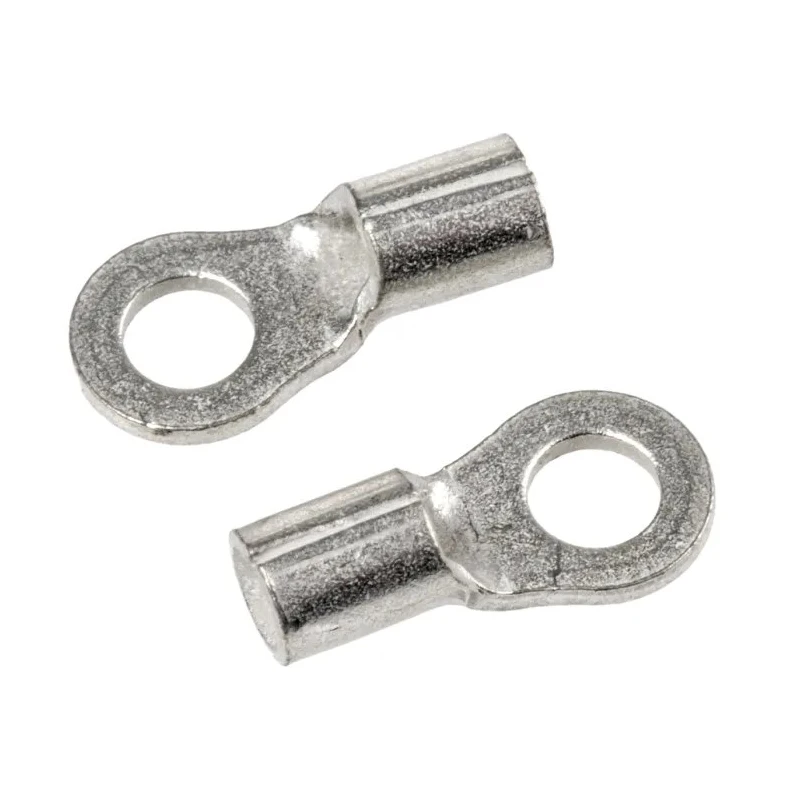

TE Connectivity Solistrand Uninsulated Crimp Ring Terminal, M2.5 Stud, 22 - 16 AWG, Grey, 34104
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Grey |
| THICKNESS | 1mm |
| Model | 34104 |
| Insulation | Uninsulated |
| Overall Length | 11.4mm |
| Contact Material | Copper |
| Series | Solistrand |
| Maximum Operating Temperature | 170°C |
| Standards/Approvals | RoHS, ANSI/ESD S20.20:2021 Electrostatic Control Standard |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Inner Ring Diameter | 3.2mm |
| Stud Size | M2.5 |
| Standards/ApprovalsRoHS, ANSI/ESD S20.20 | 2021 Electrostatic Control Standard |
Key Features
- Suitable for solid and stranded wire terminations in challenging environments.
- Made of high conductivity copper with tin plating for improved corrosion resistance.
- Uninsulated design supports wire ranges from 0.26 mm² to 1.65 mm².
- Closed barrel with brazed seams enhances mechanical strength and durability.
- M2.5 stud size with an inner ring diameter of 3.2 mm.
- Maximum operating temperature of 170°C allows for standard industrial applications.
- Serrated barrel provides maximum tensile strength and optimal electrical contact.
Product Description
TE Connectivity 34104 Solistrand Uninsulated Crimp Ring Terminal is an advanced electrical connector designed for reliable terminations of solid and stranded wires in demanding industrial environments. Featuring an M2.5 stud size and grey color, this terminal is manufactured using high conductivity copper with an electro tin-plated finish for enhanced corrosion resistance. Its robust design ensures optimal electrical performance even under harsh conditions.
The closed barrel of this Solistrand terminal includes brazed seams for increased metal strength around the barrel, making it resistant to mechanical stresses and providing durability required in commercial and industrial installations. The dimpled, serrated inner surface maximizes tensile strength and electrical contact area after crimping. The bell-shaped mouth at the barrel entrance allows easy wire insertion and speeds up installation time.
Supporting wire sizes from 22 AWG to 16 AWG (0.26 mm² to 1.65 mm²), the terminal is suitable for various applications, such as materials handling equipment, heavy equipment, pad and pole mount transformers, switchgear, telecommunications, appliances, panel boxes, power supplies, and instrumentation/control systems. Its 3.2 mm inner ring diameter fits M2.5 studs, and the overall length is 11.4 mm.
The terminal operates safely up to a maximum temperature of 170°C and conforms to RoHS and ANSI/ESD S20.20:2021 standards for electrostatic control. Its uninsulated form is ideal for reliable crimping where insulation is unnecessary or provided separately.
Typical use cases include construction, manufacturing, laboratory setups, HVAC systems, electrical panels, water treatment equipment, and commercial installations requiring dependable wire connections. The Solistrand range by TE Connectivity is valued for mechanical strength, cost efficiency, and consistent electrical conductivity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports wire sizes from 22 AWG to 16 AWG, which corresponds to a cross-sectional area of 0.26 mm² to 1.65 mm².
The maximum operating temperature of this terminal is 170°C, making it suitable for standard industrial applications.
It is designed to fit M2.5 studs, with an inner ring diameter of 3.2 mm.
This terminal is made of high conductivity copper with a tin plating for enhanced corrosion resistance.
The overall length of this terminal is 11.4 mm, and it has a thickness of 1 mm.
This model is uninsulated, making it suitable for applications where insulation is unnecessary or provided separately.
It conforms to RoHS and ANSI/ESD S20.20:2021 standards for electrostatic control.
The closed barrel features brazed seams that enhance mechanical strength and durability, providing reliable performance under mechanical stress.
The contact plating of this terminal is tin, which improves corrosion resistance and electrical performance.
Typical applications include materials handling equipment, heavy equipment, switchgear, telecommunications, and electrical panels.
The bell-shaped mouth at the barrel entrance facilitates easy wire insertion, speeding up the installation process.
The serrated barrel maximizes tensile strength and enhances electrical contact area after crimping, ensuring reliable connections.
