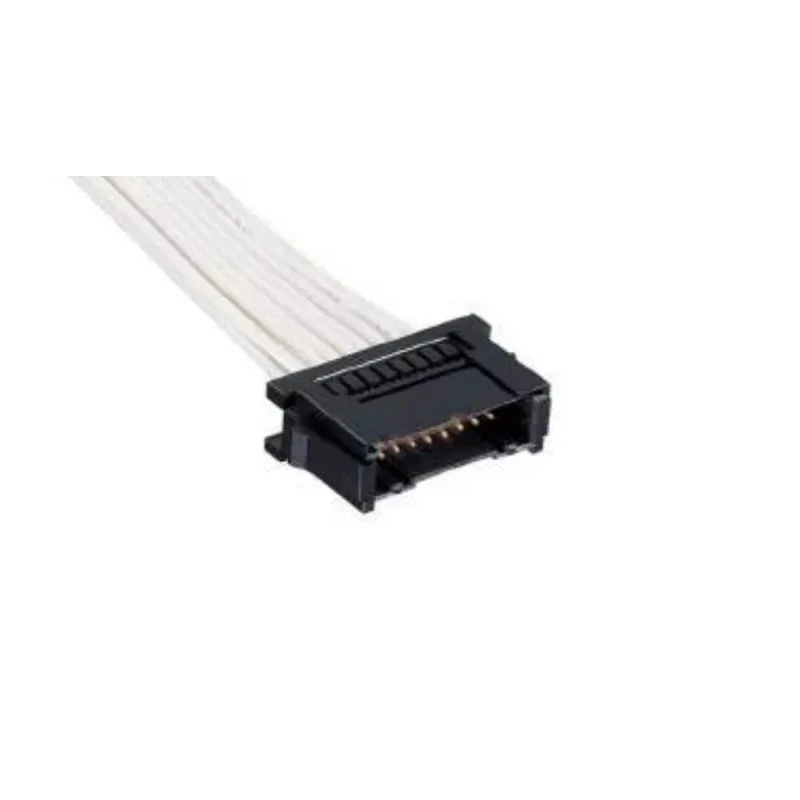

Hirose DF51 Male Connector Housing 2 mm Pitch, 20 Way, 2 Row Straight
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Hirose |
| Orientation | Straight |
| Length | 32.4mm |
| Model | DF51 |
| Width | 15.15mm |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Series | DF51 |
| Number of Rows | 2 |
| Pitch | 2mm |
| For Use With | DF51 Series Connectors |
| Number of Contacts | 20 |
| Connector Gender | Male |
| Cable Range | 22 to 30 AWG |
Key Features
- Positive locking mechanism ensures secure mating and connection.
- Supports a wide variation of configurations for flexible design requirements.
- Short-depth, low-profile design fits compact and thin equipment.
- Visually and mechanically polarized to prevent incorrect mating.
- Compatible with DF11 Series terminals and crimping tools.
- Accommodates cable range of 22 to 30 AWG.
- Suitable for potting applications up to 3 mm depth.
- Applications include office automation, industrial machinery, robotics, amusement, and medical equipment.
Product Description
The Hirose DF51-20DEP-2C Male Connector Housing is a robust connector designed for reliable cable mounting in PCB assemblies. It features a 2 mm pitch and accommodates 20 contacts arranged in 2 straight rows. The housing is constructed from polybutylene terephthalate, offering durability and electrical insulation to suit demanding industrial environments.
A positive locking mechanism is integrated to provide a clear tactile click that assures a secure connection and prevents incomplete mating. The connector supports flexible design requirements through multiple configuration options, including straight, right angle, and in-line versions with both single-row and dual-row arrangements. Its secure side-locking design and low-profile form factor make it ideal for compact and thin equipment installations.
Mating errors are minimized by visually and mechanically polarized features, helping prevent reverse or incorrect connections among varying position counts. The DF51-20DEP-2C is compatible with common crimping tools and terminals, particularly those used with the DF11 Series, and accommodates a wide cable range of 22 to 30 AWG. Gold and tin plating options are available to support different application needs.
The connector housing is suitable for potting up to 3 mm, which aids in providing environmental protection and enhances reliability. Its straight orientation further facilitates easy integration and efficient wiring in complex assemblies. With dimensions of 32.4 mm in length and 15.15 mm in width, the DF51-20DEP-2C ensures a compact footprint without compromising connectivity.
This versatile connector finds application in office automation, industrial machinery, industrial robotics, amusement equipment, and medical equipment, supporting a wide spectrum of electronic and electrical requirements.
Explore EnvMart's Electronics & Electricals category for Hirose connector housings and a comprehensive range of PCB connectors for innovative industrial solutions.
Explore more products in our PCB Connector Housing category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 2 mm.
It accommodates 20 contacts arranged in 2 rows.
This model supports a cable range of 22 to 30 AWG.
The housing is constructed from polybutylene terephthalate, providing electrical insulation and durability.
This connector housing uses cable mounting.
The dimensions are 32.4 mm in length and 15.15 mm in width.
Yes, it is compatible with DF11 Series terminals and crimping tools.
This connector housing has a straight orientation.
It features visually and mechanically polarized designs to prevent incorrect mating.
This connector is suitable for applications in office automation, industrial machinery, robotics, amusement, and medical equipment.
It features a positive locking mechanism that provides a secure connection with a tactile click.
The connector housing is suitable for potting applications up to 3 mm depth.
