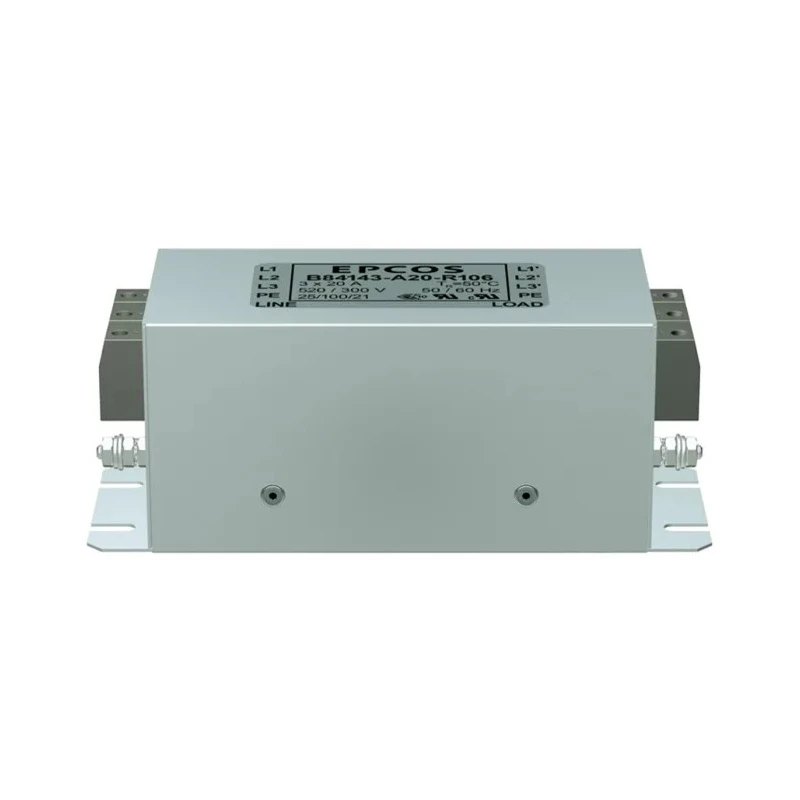

TDK 3-Phase Flange EMC Filter 520V AC 10A 50Hz/60Hz Screw Termination B84143A0010R106
Specifications
| Country of Origin | China |
|---|---|
| Brand | TDK |
| Height | 58mm |
| Length | 150mm |
| Model | B84143A0010R106 |
| Depth | 57.5mm |
| Mount Type | Flange |
| Operating Frequency | 50, 60Hz |
| Series | B84143A*R106 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Resistance | 5.5mΩ |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 10A |
| Number of Phases | 3 |
| Leakage Current | 3.1mA |
| Maximum Voltage | 520V ac |
| Standards/Approvals | UL 1283 |
| Termination Style | Screw |
| Applications include | Frequency converters for motor drives (e.g. elevators, pumps, conveyor systems and HVAC systems), Power supplies, Textile machines, Packaging machines and Machine - tools |
| Roxburgh EMC, KMF 10 A 500V ac 60Hz, Flange RFI Filter, Stud 3 PhaseBrand | Roxburgh EMC |
| TDK, B84143A*R105 8 A 520V ac 50Hz, 60 Hz, Flange EMC Filter, Screw 3 PhaseBrand | TDK |
| Deltron, KMF 10A 500 V 60Hz, Flange Mount EMI Filter, StudBrand | Deltron |
Key Features
- Compact metal case for easy installation and long motor cable optimization.
- High insertion loss with optimized leakage current of 3.1mA.
- Designed for applications including frequency converters, power supplies, textile and packaging machines.
- Durable flange mount with screw termination for secure fitting.
- Product operates reliably between -25°C and 100°C temperature range.
- UL 1283 approved and compliant with IEC 60939 standards.
- Optimal for motor drives such as elevators, pumps, conveyor systems, and HVAC systems.
- Resistance value is 5.5mΩ ensuring low power loss.
Product Description
The TDK B84143A0010R106 is a robust 3-phase flange EMC filter designed to operate at 10 amps and 520V AC with frequencies of 50Hz and 60Hz. It features a compact metal casing optimized for long motor cable runs and reliable performance under full load conditions, making it an excellent choice for industrial and commercial electrical applications.
This filter provides high insertion loss and features an optimized leakage current of 3.1mA, minimizing electromagnetic interference (EMI) in sensitive environments. Its flange mount and screw termination style ensure secure and reliable installation in various assemblies and machinery.
The operating temperature range from -25°C up to 100°C allows use in diverse conditions. The filter dimensions (150mm length, 57.5mm depth, 58mm height) provide a compact footprint while maintaining performance. It carries a resistance rating of 5.5mΩ to reduce power losses.
Applications include frequency converters for motor drives such as elevators, pumps, conveyor belts, and HVAC systems, as well as power supplies, textile machines, packaging machinery, and machine tools. Its UL 1283 approval and compliance with IEC 60939 standards ensure safety and reliability in industrial environments.
This EMC filter is rated IP 20 for protection against ingress of solids and comes with a new condition guarantee. Manufactured in China by TDK, it is suited for demanding electrical noise suppression needs in industrial setups.
Compact metal casing suitable for long motor cable use. High insertion loss for effective EMI suppression. Optimized leakage current of 3.1mA minimizes unwanted currents. Flange mount with screw termination for secure fitting.
Operating temperature from -25°C to 100°C. Dimensions: 150mm (L) x 57.5mm (D) x 58mm (H). Designed for 3-phase power systems at 10A and 520V AC. UL 1283 and IEC 60939 compliant for safety and quality. Applications include elevators, pumps, conveyors, HVAC, textile and packaging machines.
Manufactured in China, ensuring consistent build quality. Explore the EnvMart category for more EMC Filters and power line filter solutions from trusted brands like TDK.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating of this EMC filter is 520V AC.
It operates reliably between -25°C and 100°C.
The optimized leakage current for this filter is 3.1mA.
This model features a screw termination style for secure fitting.
The dimensions are 150mm in length, 57.5mm in depth, and 58mm in height.
The resistance value is 5.5mΩ, which helps to reduce power losses.
It is UL 1283 approved and compliant with IEC 60939 standards.
This model supports 3-phase systems.
The maximum current rating is 10A.
It uses a flange mount for secure installation.
The operating frequency range is 50Hz and 60Hz.
