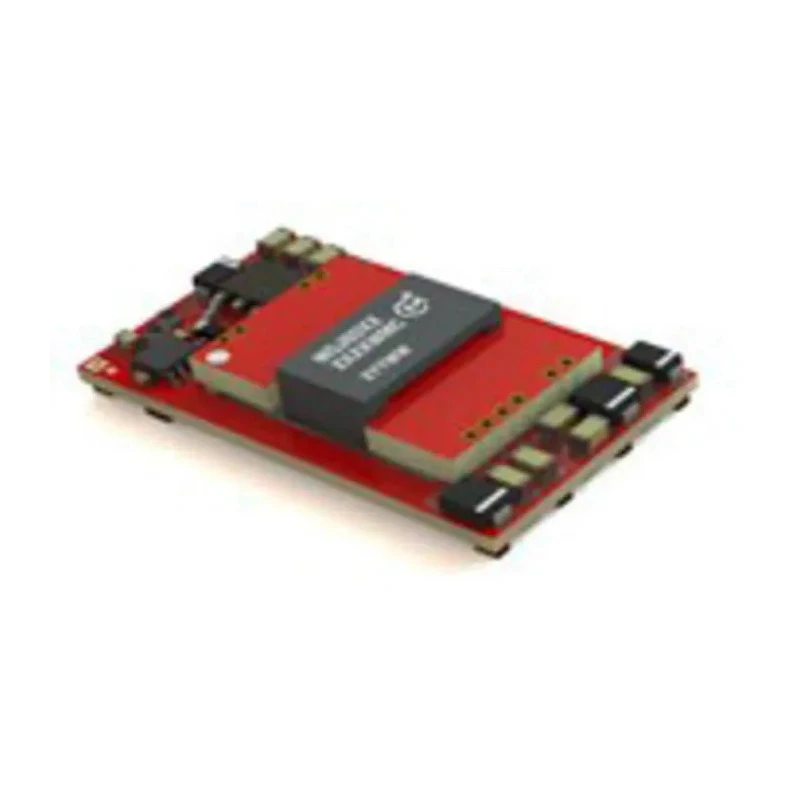

Murata Power Solutions DC/DC Converter 15V DC, 240mA Output, High Isolation, 45.98x27.81x9.15mm MGJ6
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions MGJ6 DC/DC Converter, 15V d |
| Brand | Murata Power Solutions |
| Length | 45.98mm |
| Model | MGJ6 |
| Depth | 9.15mm |
| Width | 27.81mm |
| Series | MGJ6 |
| Output Current | 240mA |
| Output Voltage | 15V dc |
| Partial Discharge Performance | Characterised |
Key Features
- Delivers reliable 15V DC output at 240mA for bridge circuits and gate drives.
- Offers configurable dual output voltages for system flexibility and efficiency.
- High isolation and dv/dt immunity rated at 80kV/μs for advanced motor drive and inverter use.
- Ultra-low coupling capacitance of 13pF and 14mm creepage and clearance for enhanced safety.
- Compact footprint with dimensions of 45.98mm x 27.81mm x 9.15mm for space-efficient installations.
- Integrated disable/frequency synchronisation pin simplifies EMC filter design.
- Characterised partial discharge performance and DC link voltage of 3kV for robust operation.
Product Description
The Murata Power Solutions MGJ6D121510WMC-R7 is an advanced DC/DC converter designed for high-performance industrial, power electronics, and automation environments. It delivers a regulated 15V DC output with a current rating of 240mA, making it ideal for powering gate drives in bridge circuits, IGBT and SiC MOSFETs, as well as motor drives and inverter systems.
This module supports multiple configurable dual output voltages, including options such as +15V/-10V, +20V/-5V, and +15V/-5V, enabling users to select optimal drive levels for system efficiency and minimal electromagnetic interference. The MGJ6 series excels in high isolation applications and withstands dv/dt environments up to 80kV/μs at 1.6kV.
Designed with safety and reliability in mind, the module features an ultra-low coupling capacitance of just 13pF, along with 14mm creepage and clearance. Robust insulation and partial discharge performance are central to its function in sensitive power control scenarios. The integrated disable/frequency synchronisation pin allows simplified EMC filter design, enhancing compatibility and reducing interference in industrial networks.
Physical dimensions of 45.98mm length, 27.81mm width, and 9.15mm depth allow this converter to fit neatly into compact assemblies, facilitating efficient layout in PCB designs and enclosure mounting. Its DC link voltage capacity of 3kV and support for demanding gate drives mark it as a robust choice for advanced control electronics.
Murata Power Solutions MGJ6 converters are highly regarded for their optimised bipolar output voltages, ease of use, and strict characterisation for industrial reliability, making them suitable for motor drive control, inverter applications, and power supply systems where safety and performance are critical.
Industries and applications: Suitable for power electronics manufacturing, laboratory setups, automation, HVAC controls, water treatment plant systems, and renewable energy inverter installations.
Explore more DC-DC Converters and innovative solutions from Murata Power Solutions in the EnvMart electronics and power supply categories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model delivers a regulated output voltage of 15V DC with a current rating of 240mA.
The physical dimensions are 45.98mm in length, 27.81mm in width, and 9.15mm in depth.
It is suitable for powering gate drives in bridge circuits, IGBT and SiC MOSFETs, as well as motor drives and inverter systems.
The converter is designed for high isolation applications and can withstand dv/dt environments up to 80kV/μs at 1.6kV.
Yes, it supports multiple configurable dual output voltages, including options such as +15V/-10V, +20V/-5V, and +15V/-5V.
It features a creepage and clearance of 14mm, enhancing safety in its applications.
The Murata Power Solutions MGJ6 DC/DC Converter is manufactured in China.
This converter has characterised partial discharge performance, which is important for its operation in sensitive power control scenarios.
It has a DC link voltage capacity of 3kV, making it suitable for demanding applications.
The integrated disable/frequency synchronisation pin simplifies EMC filter design, enhancing compatibility and reducing interference.
It has an ultra-low coupling capacitance of just 13pF, which is beneficial for reducing electromagnetic interference.
This model is part of the MGJ6 series of DC/DC converters from Murata Power Solutions.
