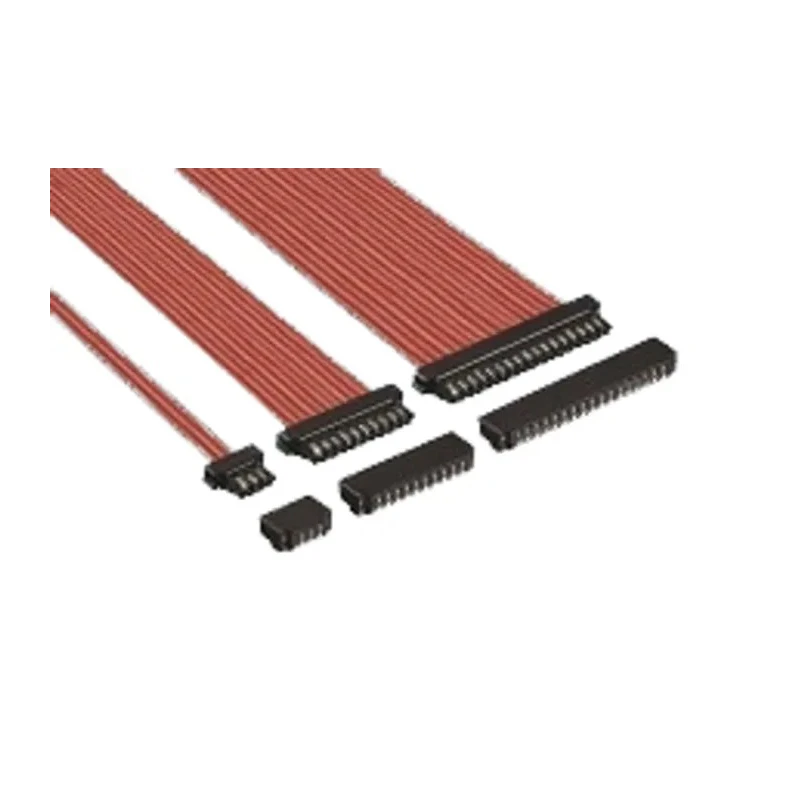

Hirose 52 Series Right Angle PCB FPC Connector, 2 Contacts, 0.8 mm Pitch, 1 Row DF52-2S-0.8H(21)

Hirose DF52-2S-0.8H(21) is a right angle PCB FPC connector from the 52 Series designed for reliable wire-to-board connections. It features 2 female contacts with a pitch of 0.8 mm, combining compact size with high current rating up to 2.5 Amps. This connector measures 1.75 mm in height and 4.1 mm in depth, ideal for space-constrained PCB designs.

The housing is constructed from polyamide, ensuring robust mechanical performance and resistance to heat and chemicals. The copper alloy contacts are tin plated for excellent conductivity, while the surface mount termination facilitates easy PCB assembly processes. Rated for operation from -40°C to 85°C, this connector meets industry demands for diverse temperature environments.

The design includes a high contact lance strength and a box shape crimp contact that prevents deformation, ensuring reliable cable retention. It supports cables with jacket outer diameters from 0.5 to 0.6 mm and wire gauges from AWG 32 to 28. As a halogen-free product, it complies with environmentally conscious manufacturing standards.

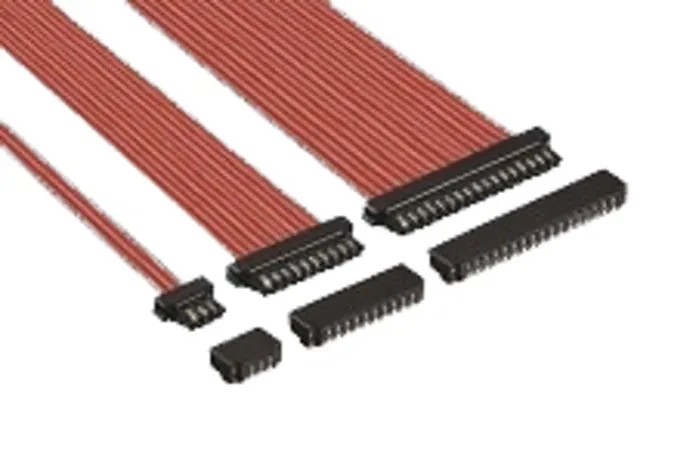

This connector series offers versions with both straight and right angle plugs and receptacles. It is suitable for industrial, electronic manufacturing, telecommunications, and consumer electronic applications requiring durable and compact FPC interconnections. Its robust construction and ease of mounting make it suitable for automated assembly lines.

Compact size with 1.75 mm height and 4.1 mm depth. Maximum current rating of 2.5 Amps for AWG#28 wires. Right angle orientation for PCB mounting. Polyamide housing for mechanical and thermal durability. Copper alloy contacts with tin plating for conductivity.

Surface mount termination type. Temperature range: -40° to 85°C. Supports cables with jacket O/D 0.5 to 0.6 mm. Halogen-free design. Box shape crimp contact ensures reliable cable retention. Explore more Hirose connectors and FPC Connector solutions in the Electronics & Electricals category at EnvMart.
