Molex Mini50 Automotive Connector Male Grey Through Hole 24 Way Solder Termination 34826-8241

Free Delivery in India | Lowest Global Shipping Charges

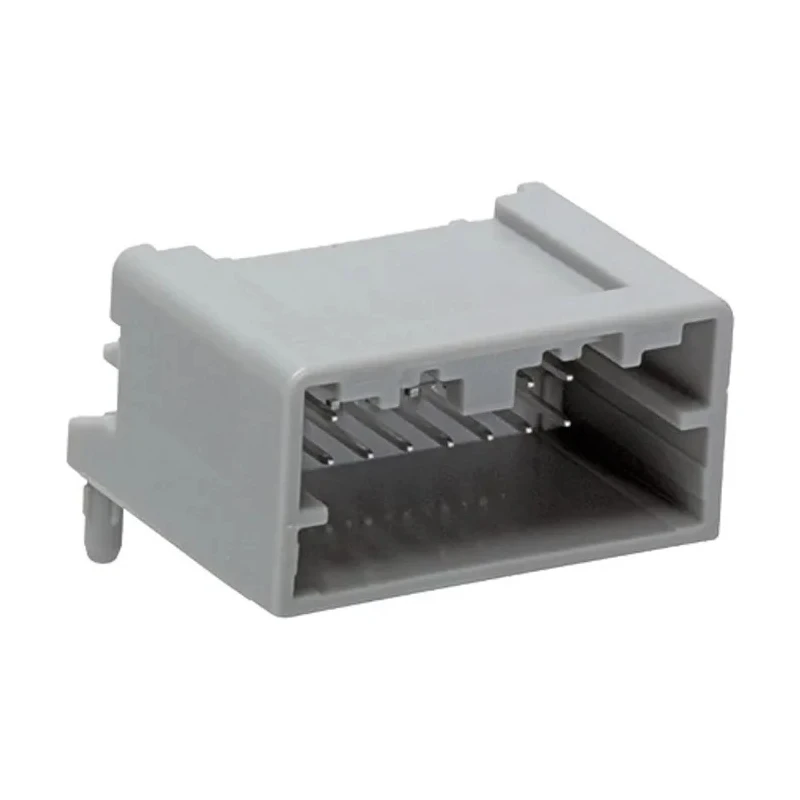

Molex Mini50 Automotive Connector Male Grey Through Hole 24 Way Solder Termination 34826-8241

Name: Molex Mini50 Automotive Connector Male Grey Through Hole 24 Way Solder Termination 34826-8241
Brand: Molex
SKU: 206042
Price: 4.29 USD
Availability: InStock



Category Automotive Electrical Connectors Brand Molex Condition New

Specifications

Country of Origin	India
Brand	Molex
Colour	Grey
Current	4A
Height	9.6mm
Depth	31.7mm
Width	19.5mm
Gender	Male
Mount Type	Through Hole
Housing Material	Thermoplastic
Contact Material	Brass
Series	Mini50
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	PCB Header
Minimum Operating Temperature	-40°C
Number of Rows	2
Standards/Approvals	EU RoHS, REACH SVHC
Contact Plating	Tin over Nickel
Number of Contacts	24

Key Features

Features 24 contacts arranged in 2 rows for reliable electrical connections.
Male PCB header type designed for through hole mounting and solder termination.
Rated for 4A current with a compact 2.0 mm pitch Mini50 series design.
Housing is high temperature thermoplastic in grey color suitable for automotive environments.
Operates reliably from -40°C up to 105°C with robust brass contacts plated with tin over nickel.
Complies with EU RoHS and REACH SVHC standards for environmental safety.
Compact dimensions of 19.5 mm width, 9.6 mm height and 31.7 mm depth ensure PCB space saving.
Designed and tested per USCAR 050 specifications for automotive connector quality and performance.

Product Description

Molex 34826-8241 is a Mini50 series automotive connector, male type, featuring 24 ways with solder termination designed for through hole mounting on PCBs. It operates at 4A current and supports automotive and commercial vehicle electrical applications.

The connector's compact 2.0 mm pitch Mini50 design offers 50% space savings compared to traditional USCAR 0.64 mm connectors, allowing more signal density inside vehicle interiors. The grey housing is made from high temperature thermoplastic capable of withstanding soldering processes up to 260°C.

Brass contacts plated with tin over nickel provide reliable electrical performance and corrosion resistance. The connector supports a temperature range from -40°C to 105°C, suitable for harsh automotive environments. With 24 contacts arranged in 2 rows, it ensures secure and stable connections.

This series is designed and tested to USCAR 050 specifications and approved as the industry's only USCAR 050 compliant automotive interface. The polarized housings and PCB retention pegs aid in precise board alignment and prevent mismating during assembly.

Applications include automotive mirrors, lighting systems, cameras, sensors, switches, radios, and navigation systems. The compact footprint and robust design make it ideal for modern automotive electrical requirements.

Features 24 contacts arranged in 2 rows for reliable electrical connections. Male PCB header type designed for through hole mounting and solder termination. Rated for 4A current with a compact 2.0 mm pitch Mini50 series design.

Housing is high temperature thermoplastic in grey color suitable for automotive environments. Operates reliably from -40°C up to 105°C with robust brass contacts plated with tin over nickel. Complies with EU RoHS and REACH SVHC standards for environmental safety.

Compact dimensions of 19.5 mm width, 9.6 mm height and 31.7 mm depth ensure PCB space saving. Designed and tested per USCAR 050 specifications for automotive connector quality and performance. Explore more automotive connectors and related electronic components on EnvMart to find the perfect solution for your industrial or automotive needs.
