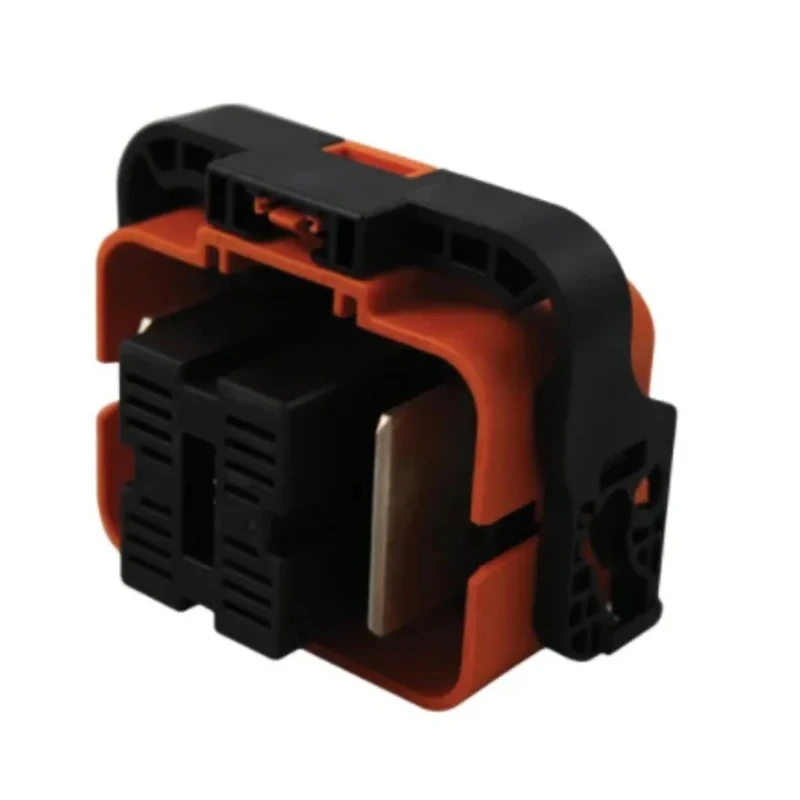

Amphenol Industrial Plug-In EV Service Disconnect 250A 690V Mini Manual Service Disconnect MINIMSDM250
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 690V |
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Straight |
| Height | 73.5mm |
| Model | MINIMSDM250 |
| Depth | 47.9mm |
| IP Rating | IP69K, IP67 |
| Connector Type | Mini Manual Service Disconnect |
| Width | 91mm |
| Mount Type | Flange |
| Standards | USCAR-2. USCAER-37, LV-215 |
| Current Rating | 250A |
| Series | MSD |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| For Use With | HV Battery Pack |
| Contact Gender | Male |
| Connector Gender | Male |
| Better World Claim | Renewable Energy Solution |
| Termination Method | Plug-In |
Key Features
- The device is designed to provide safe disconnection of high voltage circuits in electric vehicles.
- Features a male contact and connector gender with plug-in termination method.
- Equipped with an internal High Voltage Interlock Loop ensuring safe operation.
- Ingress Protection ratings are IP67 and IP69K for superior environmental resistance.
- Operating temperature range extends from -40°C to 70°C.
- Mounting is flange type, allowing easy installation in EV battery systems.
- The product is finished in high visibility orange color for safety.
- Durability supports over 50 mating cycles for long service life.
Product Description
Amphenol Industrial MINIMSDM250 is a plug-in EV service disconnect connector specifically designed for use with high voltage battery packs in plug-in hybrid electric vehicles. This mini manual service disconnect ensures the safe and effective isolation of battery power during servicing, eliminating the need for specialist tools.
The device features a unique internal High Voltage Interlock Loop (HVIL) which uses a two-stage lever mechanism to open the HVIL circuit before disconnecting the high voltage contacts. This protects the battery pack by reducing the risk of short circuits and ensures safety during maintenance.
The product is constructed with a dual-channel design that lowers temperature rise and an integrated internal HVIL. It provides high ingress protection ratings of IP67 and IP69K, making it reliable under harsh environmental conditions and suitable for industrial automotive applications.
The MINIMSDM250 supports a continuous current rating of 250 amps at an operating voltage of up to 690 volts. It operates effectively within the temperature range of -40°C to 70°C and features a flange mount type for secure installation. The mini disconnect is finished in bright orange for easy identification and safety compliance.
With durability rated for over 50 mating cycles, this service disconnect connector offers a robust and cost-effective alternative to standard solutions, suitable for electric vehicle battery management systems and related industrial applications.
The device includes a male contact and connector gender with a plug-in termination method to ensure secure electrical connections. Supports front or rear mounting configurations. Conforms to automotive industry standards USCAR-2, USCAER-37, and LV-215.
Manufactured in Germany, confirming high build quality and reliability.
This Amphenol Industrial EV service disconnect is ideal for automotive manufacturers, electric vehicle repair shops, and battery pack producers seeking a reliable and compact high voltage disconnect solution. It enhances safety protocols and operational efficiency in electric vehicle servicing environments.
Explore a wide range of connectors and automotive electrical components on EnvMart to meet your industrial needs.
Explore more products in our Automotive Electrical Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum operating voltage of 690 volts.
It has a continuous current rating of 250 amps.
It operates effectively within a temperature range of -40°C to 70°C.
The connector features a flange mounting type for secure installation.
It includes an internal High Voltage Interlock Loop (HVIL) that ensures safe operation by opening the HVIL circuit before disconnecting the high voltage contacts.
The service disconnect is rated for over 50 mating cycles, indicating its durability for repeated use.
It is finished in a high visibility orange color for safety.
It conforms to automotive industry standards USCAR-2, USCAER-37, and LV-215.
This model features a male contact and connector gender.
It is specifically designed for use with high voltage battery packs in plug-in hybrid electric vehicles.
This product is manufactured in Germany, confirming its build quality and reliability.
