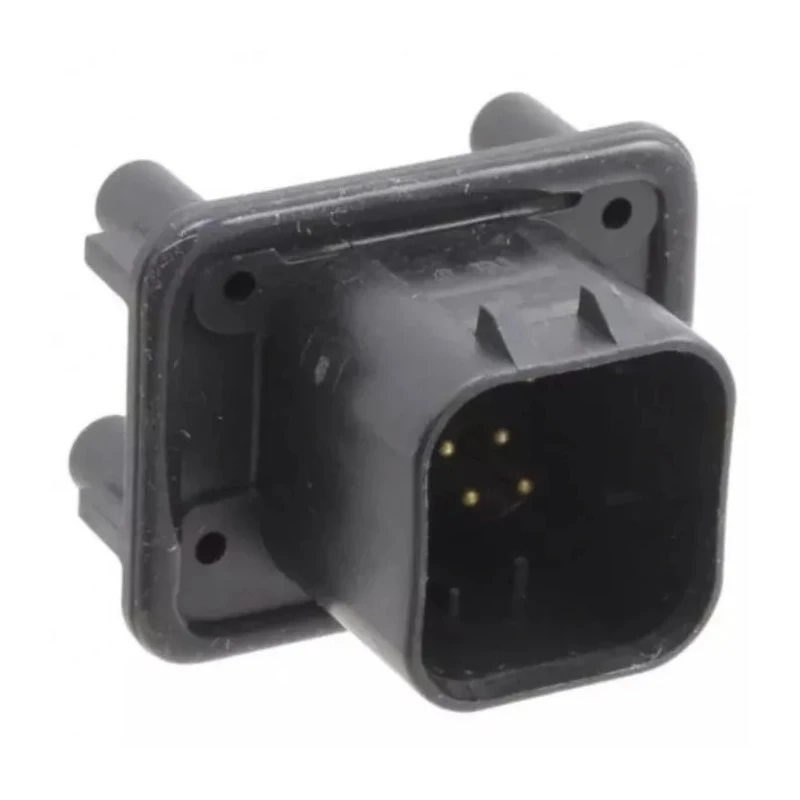

TE Connectivity Ampseal Automotive Connector Male Black Panel Mount 8 Way Solder Termination 776276-1
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 1.3mm |
| Brand | TE Connectivity |
| Colour | Black |
| Height | 32.1mm |
| Model | 776276-1 |
| Depth | 34.3mm |
| IP Rating | IP6K9K |
| Width | 40.8mm |
| Gender | Male |
| Mount Type | Panel Mount |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | Ampseal |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | PCB Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 3 |
| Contact Plating | Tin |
| Number of Contacts | 8 |
Key Features
- The connector features 8 robust brass contacts with tin plating.
- It is a sealed automotive grade connector designed to withstand high vibration and shock.
- Rated for operation between -40°C and 105°C, suitable for harsh environments.
- With IP6K9K rating, it offers superior protection against dust and high pressure water.
- The connector is panel mount type with 3 rows of contacts and a diameter of 1.3 mm.
- Housing made from fiberglass reinforced polybutylene terephthalate ensures durability.
- Operating voltage rating is up to 250 volts AC with minimum insulation resistance of 100 megaohms.
- Ideal for automotive, off-road, agricultural, marine, and emergency service applications.
Product Description
TE Connectivity 776276-1 Ampseal Automotive Connector Male is a high-quality, black panel mount connector featuring 8 solder termination contacts arranged in 3 rows. Designed for harsh industrial and automotive environments, it offers excellent resistance to vibration, shock, and extreme temperatures from -40°C to 105°C.
This connector is constructed with a durable fiberglass reinforced polybutylene terephthalate housing and brass contacts plated with tin, ensuring strong mechanical and electrical performance. It meets the IP6K9K standard, providing total dust protection and resistance to high temperature, high pressure water jets, making it ideal for demanding applications.
The Ampseal connector series by TE Connectivity is widely used in automotive applications such as trucks, buses, construction machinery, agricultural equipment, marine vessels, and two-wheelers. It is particularly suited for off-road and emergency service vehicles where superior ruggedness and environmental sealing are critical.
Featuring solder termination for secure wiring, the connector supports a maximum operating voltage of 250 volts AC and a minimum insulation resistance of 100 megaohms. The 8 contacts with 1.3 mm diameter accommodate reliable electrical connections.
The connector offers panel mount installation for ease of integration. Housing material ensures flame resistance and longevity. Its IP69K rating ensures operation in extreme environmental conditions. High temperature and vibration stability make it suitable for industrial use.
Compact dimensions (40.8mm width, 32.1mm height, 34.3mm depth) allow use in constrained spaces. It supports industrial, laboratory, automotive, agricultural, and marine electrical systems requiring reliable connector solutions.
Explore more high-quality Automotive Electrical Connectors and components designed for rugged performance on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this connector is 105°C.
It has an IP6K9K rating, providing total dust protection and resistance to high pressure water jets.
This model features 8 contacts arranged in 3 rows.
The housing is made from fiberglass reinforced polybutylene terephthalate.
It uses solder termination for secure wiring.
The minimum operating temperature is -40°C.
The dimensions are 40.8 mm in width, 32.1 mm in height, and 34.3 mm in depth.
It is suitable for automotive, off-road, agricultural, marine, and emergency service applications.
The contacts are made of brass and plated with tin.
The connector is rated for operation up to 250 volts AC.
This connector features a panel mount type for ease of integration.
It has a minimum insulation resistance of 100 megaohms.
