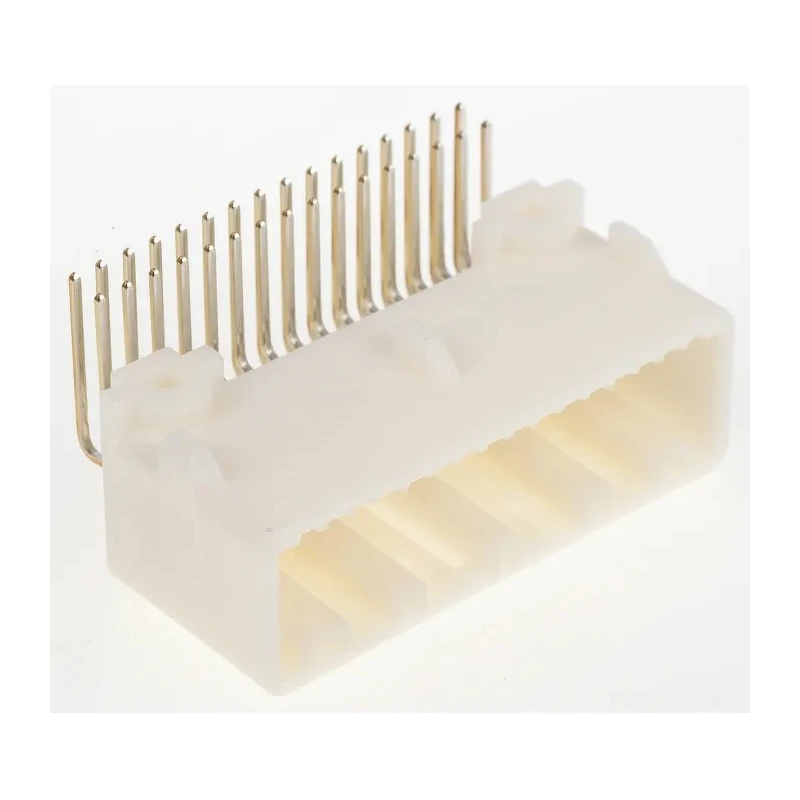

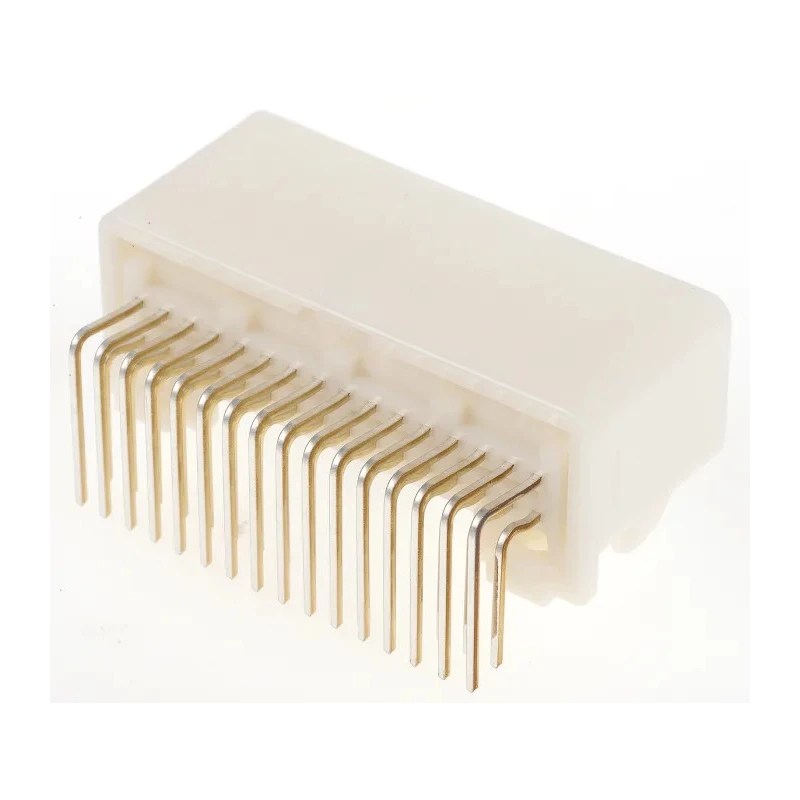

TE Connectivity TH 025 Series Automotive Connector Female Natural Through Hole 32 Way Solder Termination 1318745-2
Specifications
| Diameter | 3mm |
|---|---|
| Brand | TE Connectivity |
| Colour | Natural |
| Height | 15.5mm |
| Depth | 24.47mm |
| Width | 40.6mm |
| Gender | Female |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | TH 025 |
| Termination Type | Solder |
| Maximum Operating Temperature | 150°C |
| Sub Type | Automotive Wire Connector |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Standards/Approvals | JIS B1115JIS B1122 |
| Contact Plating | Tin |
| Number of Contacts | 32 |
Key Features
- Compact design featuring a 2.2 mm high-density pitch for space-saving PCB integration.
- Housing made of Polybutylene Terephthalate providing durable and reliable insulation.
- Brass contacts plated with tin ensure high conductivity and corrosion resistance.
- Connector equipped with board fixation screws for secure and stable PCB connection.
- Supports operating temperatures from -30°C to 150°C for automotive environments.
- Colour coded housing enables quick and easy identification.
- Compliance with JIS B1115 and JIS B1122 industrial standards.
- Ideal for automotive safety, security, driver information, and body systems applications.
Product Description
TE Connectivity 1318745-2 TH 025 Series Automotive Connector Female is engineered for high performance and compactness in automotive electrical systems. This connector features a natural coloured housing made from Polybutylene Terephthalate (PBT), ensuring durability and resistance in demanding environments. Its design includes a 32-contact layout with dual rows and a 2.2 mm pitch arranged through-hole mounting style facilitating a secure PCB connection through board fixation screws.
The brass contacts with tin plating resist fretting corrosion and provide reliable solder termination suitable for various automotive use cases. Operating temperature ranges from -30°C to 150°C making it adaptable to harsh automotive conditions. The compact footprint of 40.6 mm width, 15.5 mm height, and 24.47 mm depth enables efficient space utilisation on PCBs.
This connector series complies with JIS B1115 and JIS B1122 standards, guaranteeing dependable integration in automotive safety, security, multimedia, and body control subsystems. Applications include mirrors, display screens, airbag ECUs, switches, and dashboard systems. The colour coded housing assists technicians in assembly and troubleshooting.
TE Connectivity’s TH 025 Series is designed for automotive industrial use, supporting wire-to-board and ECU connections requiring high density and reliable electrical performance. The low connector mating force assures longevity and ease of service.
Compact design with 2.2 mm pitch and high contact density. Polybutylene Terephthalate housing offers strength and insulation. Brass contacts plated with tin resist corrosion and ensure conductivity. Board fixation screws secure the connector firmly to the PCB.
Wide operational temperature range from -30°C to 150°C. Compliance with industrial JIS standards for automotive connectors. Usage in advanced automotive safety, multimedia and body systems. For related components and more information, browse the Automotive Electrical Connectors category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 32-contact layout arranged in two rows with a 2.2 mm pitch, designed for through-hole mounting on PCBs.
The housing is made of Polybutylene Terephthalate (PBT), while the contacts are brass plated with tin to ensure high conductivity and corrosion resistance.
It supports an operating temperature range from -30°C to 150°C, making it suitable for harsh automotive environments.
It complies with JIS B1115 and JIS B1122 industrial standards, ensuring reliable performance in automotive applications.
The dimensions of this model are 40.6 mm in width, 15.5 mm in height, and 24.47 mm in depth.
It features board fixation screws that secure the connector firmly to the PCB, ensuring a stable connection.
This model utilizes solder termination, which is suitable for various automotive applications.
It is designed for use in automotive safety, security, multimedia, and body systems, including mirrors, display screens, and airbag ECUs.
This connector is a female type, designed to interface with corresponding male connectors in automotive systems.
The colour-coded housing enables quick and easy identification, aiding technicians during assembly and troubleshooting.
The contact diameter for this model is 3 mm, which is suitable for its intended applications.
This automotive connector has a maximum of 32 contacts, allowing for a high-density connection in automotive electrical systems.
