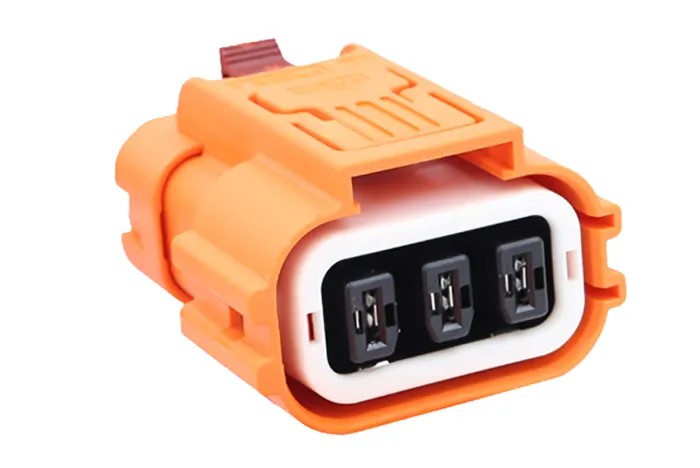

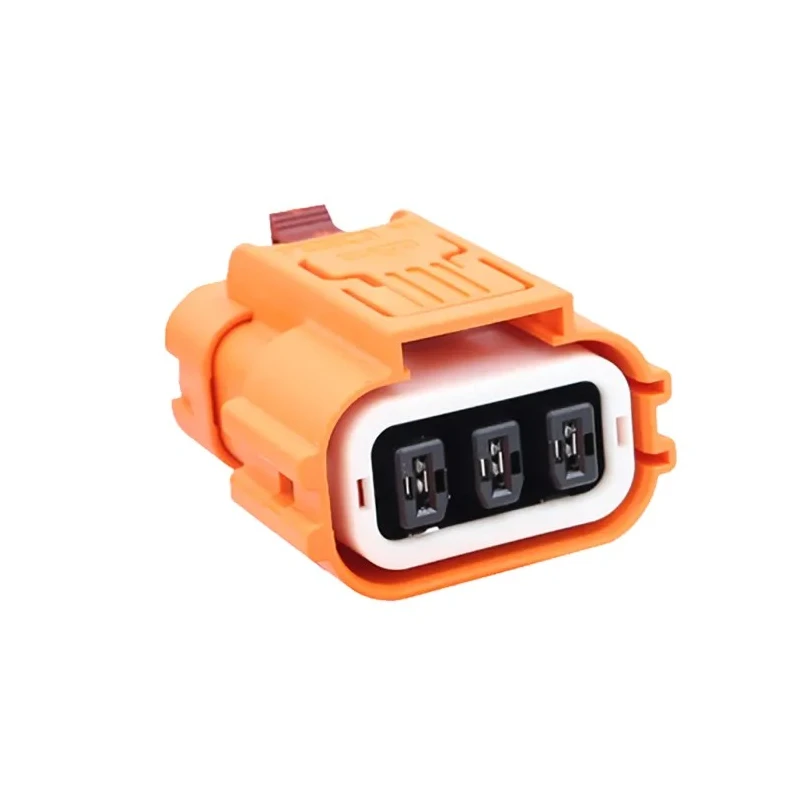

Amphenol Industrial EV Connector Type EV Female, 3 Contact, 40A, 1000V, Crimp Termination HVSL633

Amphenol Industrial HVSL633063A104I EV Connector is a reliable Type EV female connector designed to meet demanding electric vehicle power and signal connection needs. Rated for a current of 40A and an operating voltage of 1000V, this connector is optimized for xEV applications such as DC-DC converters and air conditioning devices. It features 3 male contacts arranged in a single row and supports cable wire sizes of 4mm² with crimp termination for secure and stable connections.

The connector is engineered for durability with polyamide 66 housing and copper alloy contacts plated in tin to ensure corrosion resistance and reliable conductivity. The orange colored connector with Type A keying provides visual identification and prevention of mismating. Operating temperature ranges from -40°C to 125°C, making it suitable for harsh environmental conditions encountered in automotive and industrial settings.

Compliance with EN 60664-1 electrical insulation and creepage requirements and ingress protection ratings of IP67 and IP69K assure protection against dust, water, and high-pressure cleaning. The integrated internal HVIL contributes to safety by ensuring connector integrity. The straight orientation combined with two-stage, tool or thumb activated latching facilitates easy installation without tools.

This connector is part of the HVSL633 series, offering versatile configurations for various electric vehicle system power levels from 23A to 40A and cable sizes from 4 to 6mm². Its compact dimensions, precise engineering, and robust materials make it ideal for automotive electrical connector systems requiring high performance and reliability.

The connector features 1 row with 3 contacts for reliable signal and power transmission. Wire size supported is 4mm² with crimp termination and male contacts. It offers a compact design with dimensions height 47mm, width 33mm, and depth 57mm.

Operating temperature range from -40°C to 125°C ensures performance in harsh environments. Compliance with EN 60664-1 standard and IP67, IP69K ingress protection rating provides durability and protection. Constructed with polyamide 66 housing and copper alloy contacts plated in tin for corrosion resistance.

Orange color and Type A keying help identify and secure connector mating. Suitable for various xEV applications including DC-DC converters and air-conditioner units. Easy crimp cable mounting with integrated internal HVIL and touch-proof safety features.

This product is ideal for industrial, automotive, and electric vehicle manufacturing applications where high reliability and safety are critical. Browse our selection of Automotive Electrical Connectors to find compatible mating connectors and accessories.
