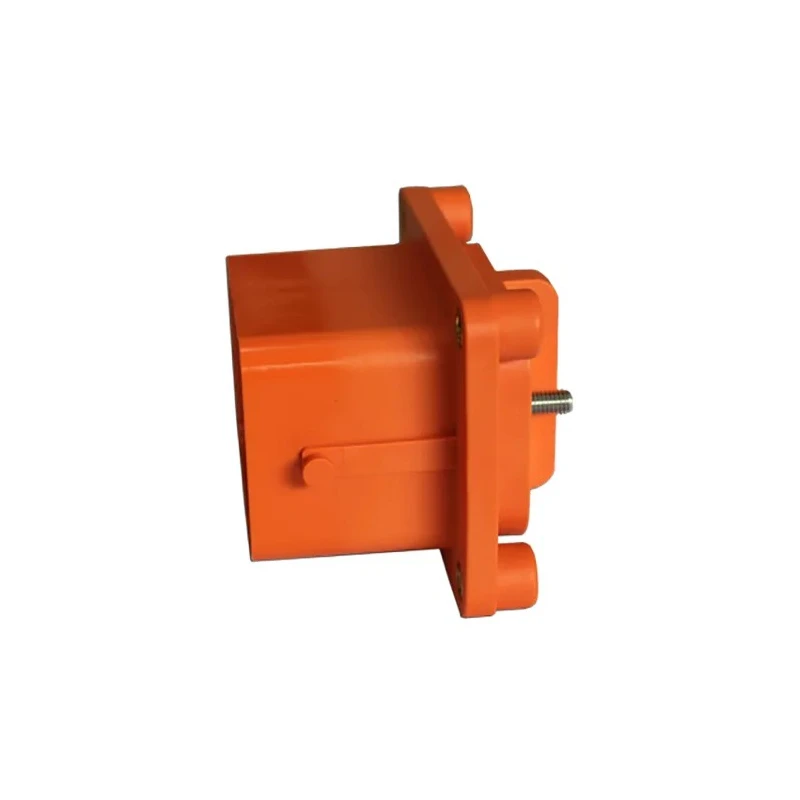

Amphenol Industrial Plug-In EV Service Disconnect For Use With HV Battery Pack 1500V 170A MINIMSDF000R
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1500V |
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Straight |
| Operating Temperature | -40°C to +70°C |
| Height | 75mm |
| Model | MINIMSDF000R |
| Depth | 76.65mm |
| IP Rating | IP69K, IP67 |
| Connector Type | Mini Manual Service Disconnect |
| Width | 102mm |
| Mount Type | Flange |
| Standards | USCAR-2. USCAER-37, LV-215 |
| Current Rating | 170A |
| Series | MSD |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| For Use With | HV Battery Pack |
| Contact Gender | Female |
| Connector Gender | Female |
| Better World Claim | Renewable Energy Solution |
| Termination Method | Plug-In |
Key Features
- This EV service disconnect is rated for 1500V and 170A current capacity.
- It features plug-in termination with a mini manual service disconnect connector type.
- The device offers high ingress protection with IP69K and IP67 ratings.
- Operates reliably within the temperature range of -40°C to 70°C.
- Designed with a durable flange mount and compact dimensions of 102mm width, 75mm height, and 76.65mm depth.
- Connector and contact gender are female with a straight orientation for easy installation.
- Meets industry standards including USCAR-2, USCAER-37, and LV-215.
- Color coded orange for quick identification and safety compliance.
Product Description
Amphenol Industrial MINIMSDF000R Plug-In EV Service Disconnect is engineered specifically for high voltage battery packs, providing a safe and effective method to disconnect the power source without the need for specialized tools. Rated at 1500 volts and 170 amps, this mini manual service disconnect ensures protection against short circuits and enhances technician safety during maintenance.
Featuring a flange mount type and compact dimensions (102mm width, 75mm height, 76.65mm depth), this connector supports a high degree of ingress protection to IP69K and IP67 standards, making it resistant to dust, water jets, and immersion. Operating temperature tolerances from -40°C to 70°C enable reliable performance across diverse environmental conditions common in automotive applications.
The plug-in termination method uses a mini manual service disconnect connector with female contact and connector gender, straight orientation, and orange coloring for high visibility and safety compliance. Designed for over 50 mating cycles, it is a durable and cost-effective alternative to standard MSDs in plug-in hybrid electric vehicles (PHEV).
This product complies with notable standards such as USCAR-2, USCAER-37, and LV-215 ensuring industry-grade reliability. It belongs to the MSD series and is manufactured in China under Amphenol Industrial's quality assurance.
Typical industrial uses for the MINIMSDF000R include electric vehicle battery servicing, renewable energy systems, and high voltage electrical connectivity in automotive manufacturing and repair facilities. This device provides technicians with a secure disconnect mechanism to safely manage battery packs during service operations.
This EV service disconnect is rated for 1500V and 170A current capacity. Plug-in termination with mini manual disconnect connector type. Ingress protection ratings IP69K and IP67 enhance durability. Operating temperature range from -40°C to 70°C supports various environments.
Compact flange mounting and orange color for practical usage and safety. Female contact and connector gender with straight orientation. Compliance with USCAR-2, USCAER-37, and LV-215 industry standards. Durability designed for over 50 mating cycles.
Explore additional Amphenol Industrial connectors and EV service disconnect solutions on EnvMart for your commercial and industrial requirements.
Explore more products in our Automotive Electrical Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 1500V and has a current capacity of 170A.
It operates reliably within a temperature range of -40°C to +70°C.
It features a mini manual service disconnect connector type with female contact and connector gender.
The compact dimensions are 102mm in width, 75mm in height, and 76.65mm in depth.
It has IP67 and IP69K ratings, providing high resistance to dust and water.
This unit is designed for flange mounting, allowing for secure installation.
It meets notable standards including USCAR-2, USCAER-37, and LV-215.
It is designed for over 50 mating cycles, ensuring durability during use.
It is color-coded orange for quick identification and safety compliance.
Typical applications include electric vehicle battery servicing and high voltage electrical connectivity in automotive manufacturing.
It employs a plug-in termination method for easy connection and disconnection.
The EV service disconnect is manufactured in China under Amphenol Industrial's quality assurance.
