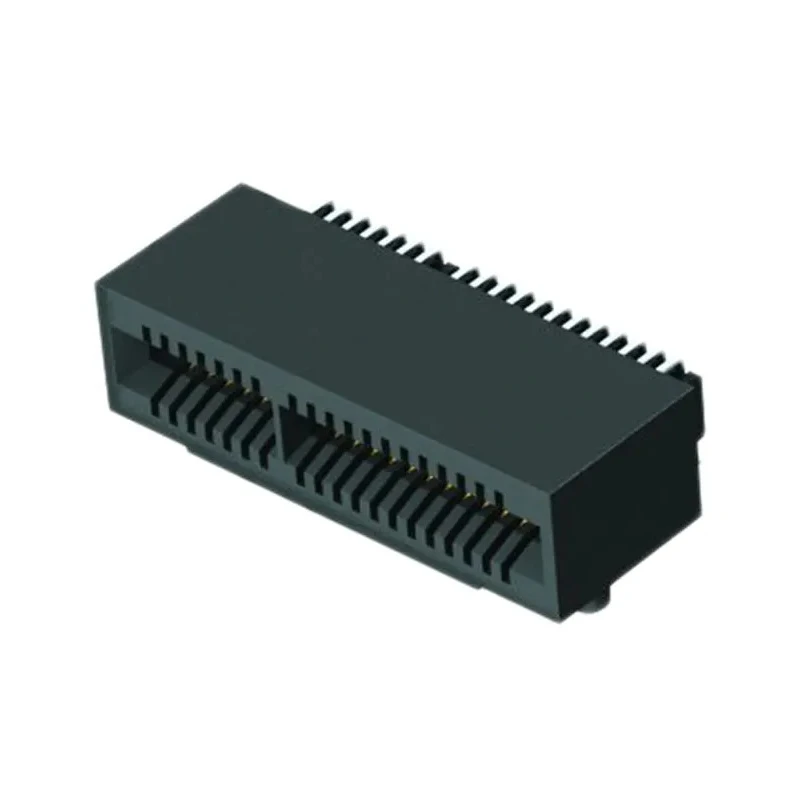

Samtec MEC1-RA Series Right Angle Edge Connector Female, Surface Mount, 60 Contacts, 1 mm Pitch, 2 Row, Solder MEC1-RA
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 1.6A |
| Model | MEC1-RA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | MEC1-RA |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Contact Plating | Tin over Nickel, Gold over Nickel |
| Number of Contacts | 60 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | Edge |
| Card Thickness | 1.6mm |
Key Features
- Right angle orientation enables compact PCB layouts.
- 60 female contacts arranged in 2 rows for reliable signal transmission.
- 1.0 mm pitch compatible with industry standard cards.
- Surface mount termination with solder type for secure PCB attachment.
- Phosphor bronze contacts plated with tin over nickel and gold over nickel for durability.
- Housing made of liquid crystal polymer offers high mechanical and thermal stability.
- Supports 1.6 mm card thickness with a maximum operating temperature of 125°C.
- Connector series MEC1-RA designed for edge card applications requiring reliable performance.
Product Description
Samtec MEC1-RA series right angle edge connector (model MEC1-RA) is a high-quality female connector designed for surface mount applications. It features 60 contacts arranged in 2 rows with a 1.0 mm pitch, making it suitable for compact printed circuit board (PCB) layouts and edge card interfaces.
Constructed with phosphor bronze contact material, the pins are plated with tin over nickel and gold over nickel to ensure excellent conductivity and corrosion resistance. The housing is manufactured from liquid crystal polymer (LCP), providing mechanical strength and thermal stability in demanding industrial environments.
This connector supports cards with a thickness of 1.6 mm and has a maximum operating temperature of 125°C, making it suitable for use in electronic manufacturing, telecommunications, computing, and other industrial applications requiring reliable edge connections. The solder lock feature on these connectors ensures a secure connection to the PCB.
The MEC1-RA series edge connector supports a voltage rating of 250V and a maximum current of 1.6A, offering robust electrical capabilities for various electronic designs. Right angle orientation enables compact PCB layouts.
60 female contacts arranged in 2 rows for reliable signal transmission. 1.0 mm pitch compatible with industry standard cards. Surface mount termination with solder type for secure PCB attachment. Phosphor bronze contacts plated with tin over nickel and gold over nickel for durability.
Housing made of liquid crystal polymer offers high mechanical and thermal stability. Supports 1.6 mm card thickness with a maximum operating temperature of 125°C. Voltage rating up to 250V and current carrying capacity of 1.6A.
Connector series MEC1-RA designed for edge card applications requiring reliable performance.
This edge connector is ideal for use in electronic components manufacturing, power & connectors, and computing industry sectors that demand reliable and durable edge card connections. Explore more of Samtec’s MEC1-RA series Edge Connectors on EnvMart for your precision PCB assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this connector is 250V.
It features 60 female contacts arranged in 2 rows.
The maximum current capacity is 1.6A.
The pitch size is 1.0 mm, compatible with industry standard cards.
It uses a solder termination type for secure PCB attachment.
The contacts are made of phosphor bronze, plated with tin over nickel and gold over nickel, while the housing is made from liquid crystal polymer.
The maximum operating temperature is 125°C.
It supports cards with a thickness of 1.6 mm.
This connector has a right angle orientation, which enables compact PCB layouts.
The connector is manufactured in India.
The minimum operating temperature is -55°C.
It is suitable for electronic manufacturing, telecommunications, and computing applications requiring reliable edge connections.
