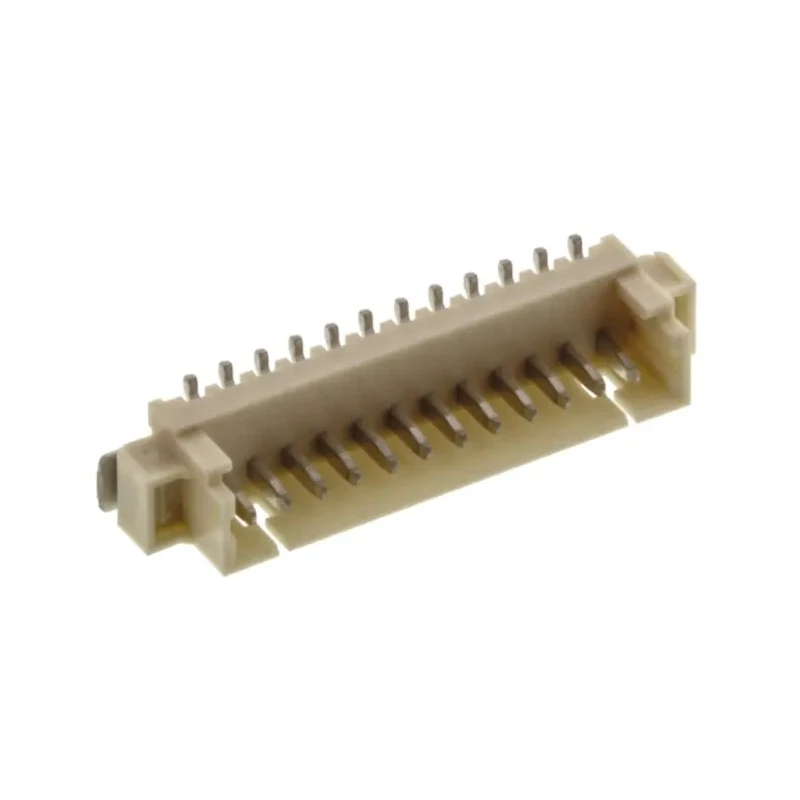

Molex 53398 Series Straight Surface PCB Header, 12 Contact(s), 1.25 mm Pitch, 1 Row, Shrouded 53398-1271

Molex 53398-1271 Straight Surface PCB Header is a high-quality 12-contact PCB connector designed for precision wire-to-board applications. It features a 1.25 mm pitch and a single row configuration with a shrouded design to ensure secure and reliable connections on printed circuit boards.

This PCB header uses nylon as its housing material, providing durability and electrical insulation, while the phosphor bronze contacts plated with tin enable excellent conductivity and corrosion resistance. The surface mount construction and vertical orientation assist efficient use of PCB space and optimize assembly layouts.

Operating within a broad temperature range from -40°C to +105°C, this connector maintains stable performance even under extreme environmental conditions. Its solder termination and 0.6 mm tail pin length provide strong mechanical and electrical attachment to the PCB.

The product supports a current rating of 1 ampere and a voltage rating of 125 volts, suitable for a variety of low-power electronic applications requiring secure data or signal transmission. The shrouded design minimizes the risk of misalignment during connection and protects against accidental disconnections, enhancing system reliability.

Common usage scenarios include automated industrial equipment, networking hardware, telecommunications devices, and compact electronic assemblies where board space efficiency and dependable interconnects are critical. This connector aligns well with requirements in commercial electronics, manufacturing automation, and other technical sectors.

This PCB header supports 12 contacts with a 1.25mm pitch spacing. Constructed with nylon housing and phosphor bronze contacts plated with tin for reliable conductivity. Designed for surface mount applications with a straight vertical orientation.

Shrouded design enhances connection security and helps prevent misalignment. Operates reliably between -40°C to +105°C temperature range. Supports a maximum current rating of 1A and voltage up to 125V. Termination is by solder with a tail pin length of 0.6mm for stable connection integrity.

Ideal for wire-to-board connections in compact and automated electronic devices. Applications include networking, communication equipment, and various industrial electronic systems. Explore the Molex range on EnvMart to find compatible PCB connectors and wire housings for your electronic component needs.
