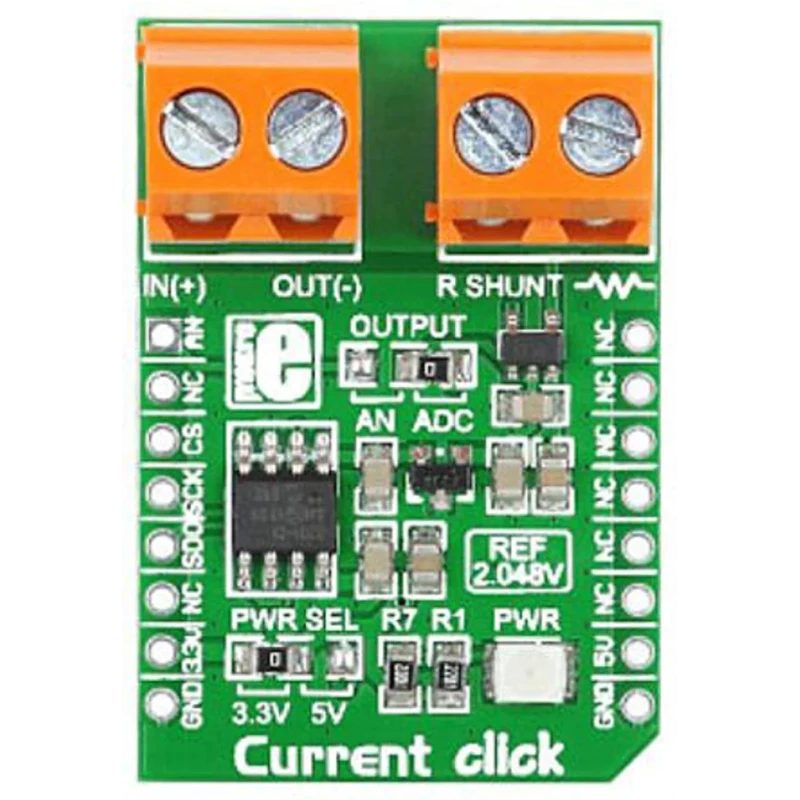

MikroElektronika Sensor Development Tool Current Click Add On Board MikroBus MIKROE-1396
Specifications
| Country of Origin | Serbia |
|---|---|
| Brand | MikroElektronika |
| Model | MIKROE-1396 |
| For Use With | MikroBus |
| Standards/Approvals | RoHS |
| Kit Classification | Add On Board |
| Kit Name | Current Click |
| Four shunts provided in the package | 0.05 Ω, 0.2 Ω, 1 Ω and 10 Ω |
| On Board | INA196 current shunt monitor/ MCP3201 12-bit Analogue to digital convertor/ MAX6106 voltage reference |
Key Features
- Compatible with MikroBus microcontroller development boards.
- Supports 3V and 5V power supply operation.
- Includes INA196 current shunt monitor, MCP3201 12-bit ADC, and MAX6106 voltage reference.
- Communication via mikroBUS SPI or analog (AN) lines.
- Header strips pre-soldered for convenient installation.
- Ideal for current sensing in industrial, development, and educational use cases.
- RoHS compliant and manufactured in Serbia.
Product Description
The MikroElektronika MIKROE-1396 Current Click Add On Board is a high-precision sensor development tool designed to measure electrical current accurately. It operates using 3 V or 5 V power supply, making it compatible with a wide range of MikroElektronika mikroBUS microcontroller development boards. This add-on board incorporates a current shunt monitor (INA196), a 12-bit analogue to digital converter (MCP3201), and a voltage reference (MAX6106), ensuring reliable and precise current sensing.
The board comes with four different shunts (0.05 Ω, 0.2 Ω, 1 Ω, and 10 Ω) included in the package, which allow measurement of currents ranging from 2 mA to 2048 mA. Users can select the appropriate shunt for their application. Communication with the Current Click board is supported via SPI or analog lines over the mikroBUS interface, providing flexible and convenient integration options. The header strips are pre-soldered, simplifying installation and use.
This sensor tool is ideal for applications including industrial equipment monitoring, laboratory development, embedded system prototyping, and STEM educational projects. It supports bandwidth up to 500 kHz, enabling measurements in fast-switching circuits. The design conforms to RoHS standards and is manufactured in Serbia, assuring quality and compliance with environmental regulations.
Compatible with MikroBus microcontroller development boards. Operates on 3V and 5V power supply. Includes INA196 current shunt monitor, MCP3201 12-bit ADC, and MAX6106 voltage reference. Four shunts included for current ranges from 2 mA to 2048 mA.
Communicates via SPI or analog mikroBUS lines. Header strips come pre-soldered for ease of use. Supports bandwidths up to 500 kHz for high-speed current sensing. RoHS compliant and made in Serbia. Explore more Sensor Development Tools and related products at EnvMart for industrial, laboratory, and educational applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MikroElektronika MIKROE-1396 supports current measurements ranging from 2 mA to 2048 mA, utilizing four different shunts included in the package: 0.05 Ω, 0.2 Ω, 1 Ω, and 10 Ω.
This model operates on both 3V and 5V power supply, making it compatible with a variety of MikroBus microcontroller development boards.
Communication with the Current Click board is facilitated via SPI or analog lines over the mikroBUS interface, providing flexible integration options.
The board includes an INA196 current shunt monitor, an MCP3201 12-bit analogue to digital converter, and a MAX6106 voltage reference for accurate current sensing.
It supports a bandwidth of up to 500 kHz, enabling measurements in fast-switching circuits.
This model is manufactured in Serbia, ensuring compliance with quality standards.
The included shunts allow users to select the appropriate resistance for their application, facilitating accurate current measurements across a specified range.
Yes, the MikroE-1396 is RoHS compliant, ensuring it meets environmental regulations regarding hazardous substances.
It is ideal for applications including industrial equipment monitoring, laboratory development, embedded system prototyping, and STEM educational projects.
The header strips on the board come pre-soldered, simplifying the installation and use of the Current Click board.
This model is specifically designed for use with MikroBus microcontroller development boards.
The MikroE-1396 is classified as an Add On Board, specifically named Current Click, designed for sensor development.
