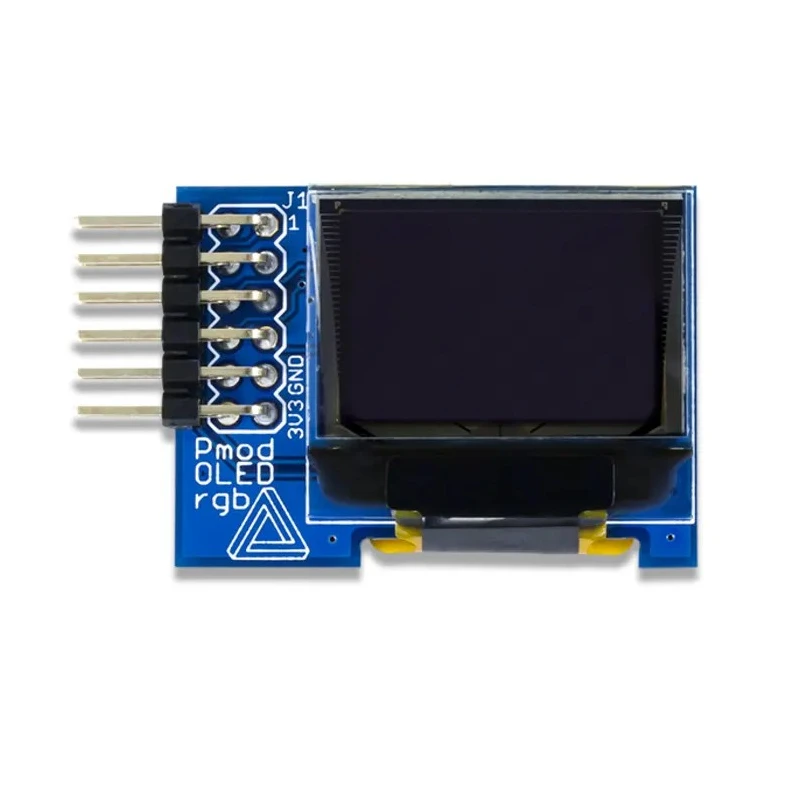

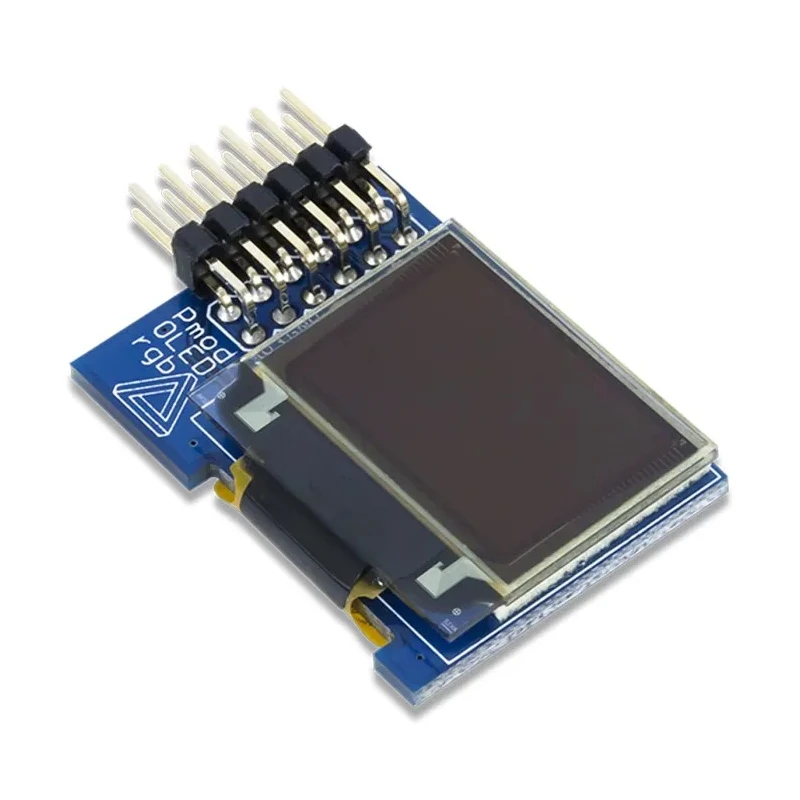

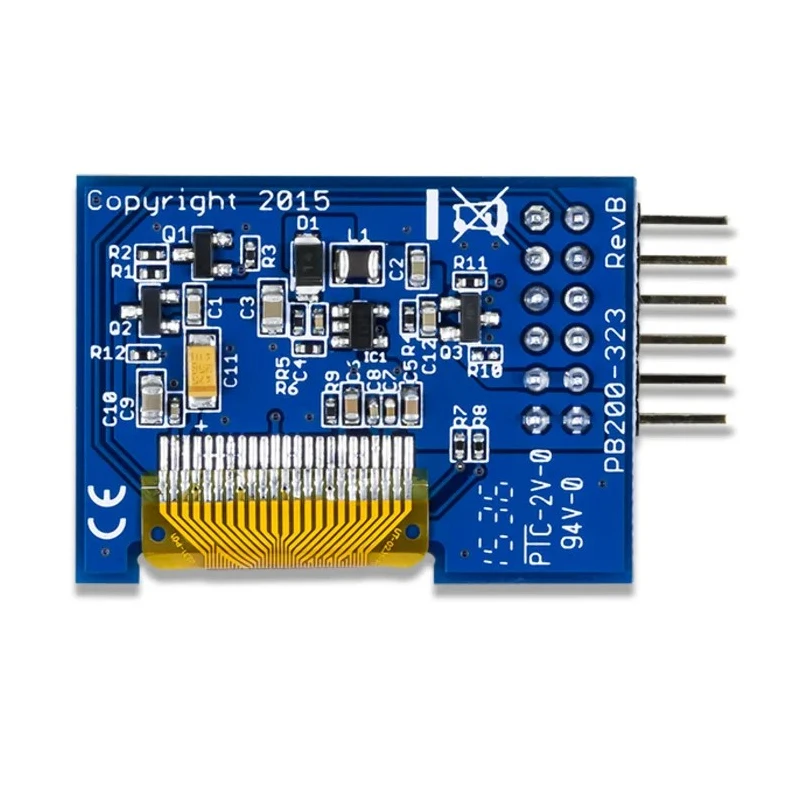

Digilent Sensor Development Expansion Module 410-323 with 96x64 Pixel 16-bit Color RGB OLED Display 12-pin SPI Interface

Digilent 410-323 Sensor Development Expansion Module provides a high-quality organic RGB LED graphical display designed for development systems. The 96 x 64 pixel OLED display offers 16-bit colour resolution, enabling detailed and vivid graphical outputs including text, images, and graphs.

Equipped with the Solomon Systech SSD1331 display controller, this module communicates via an SPI protocol to interface seamlessly with compatible host boards. The 12-pin Pmod connector ensures easy connectivity and supports standardised expansion modules commonly used in sensor development environments.

The compact 35 x 25mm form factor of the unit allows integration into dense electronic assemblies. Two built-in low-power display shutdown modes are included to optimize power consumption, making it suitable for energy-conscious applications.

This expansion module is ideal for use in educational, laboratory, industrial automation, and embedded system prototyping fields. It enables developers to display rich graphical data outputs on a compact OLED screen with vibrant RGB colour.

Its compliance with RoHS standards underscores its suitability for environmentally responsible electronics manufacturing and use. The module includes a 20 x 13mm RGB OLED display suited for graphical applications. Utilises Solomon Systech SSD1331 display controller for efficient rendering.

Supports serial SPI host communication for integration with host boards. Contains a 12-pin Pmod connector facilitating standardised expansion. Includes two low-power display shutdown modes for energy saving. Compact overall size of 35 x 25mm enables space-efficient designs.
