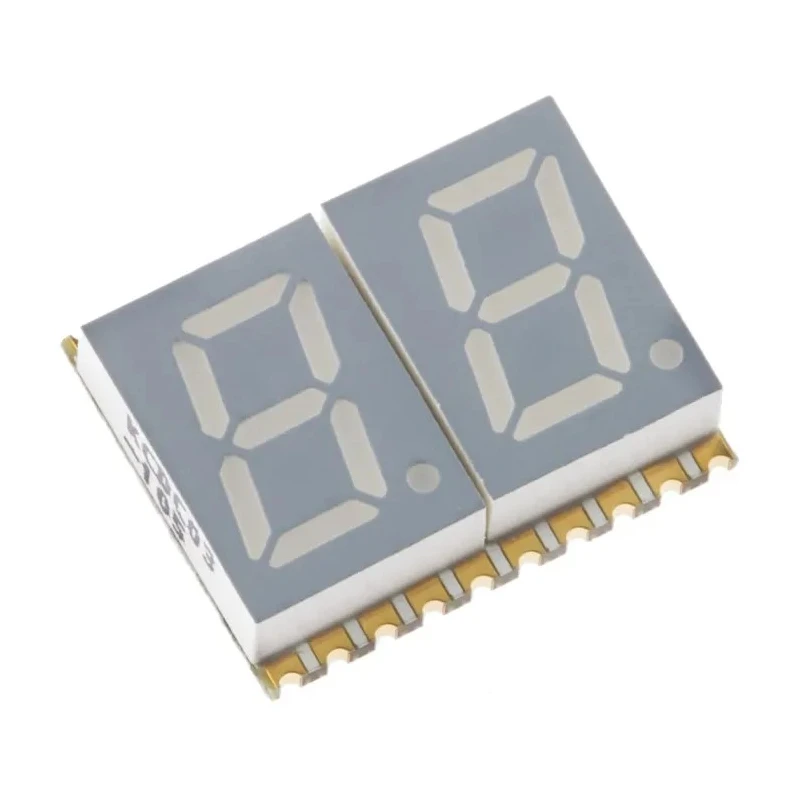

Kingbright 2-Digit 7 Segment LED Display Cathode Red 27mcd Right Side Decimal 7.6mm KCDC03-105

Kingbright KCDC03-105 is a dual-digit 7-segment LED display module featuring bright red LEDs with a luminous intensity of 27mcd and a dominant wavelength of 630nm. It has a right side decimal orientation designed for easy readability in industrial and commercial electronic display applications.

This module has a compact character height of 7.6mm and character width of 4.2mm, optimized for clear numeric display on circuit boards. It features a grey face with white segments for high on/off contrast and enhanced visibility under varied lighting conditions.

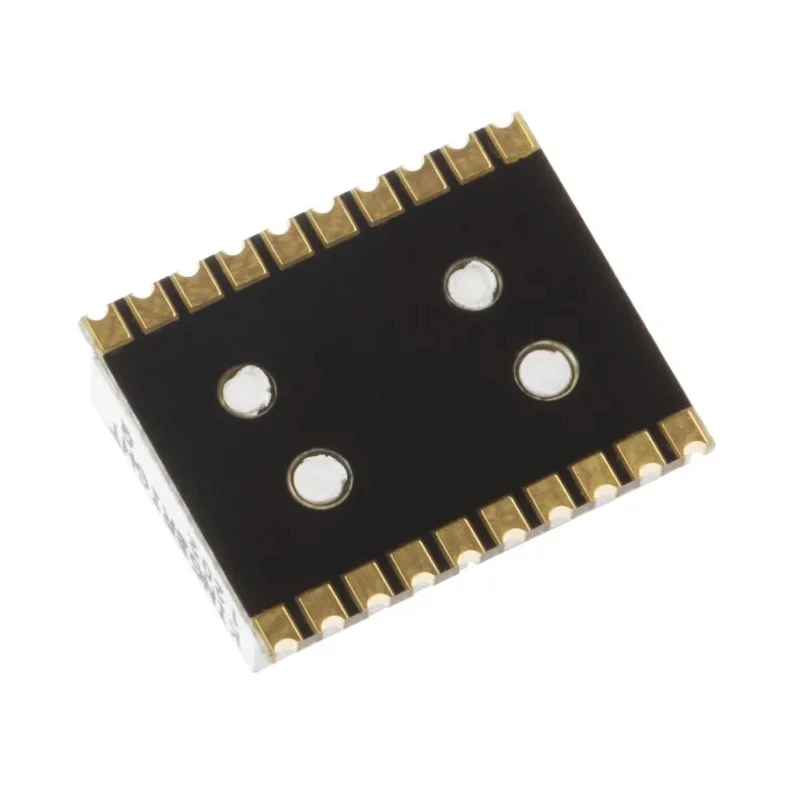

The display includes a cathode common connection and supports surface mounting, making it suitable for PCB insertion and automated manufacturing processes.

Operating specifications include a forward voltage of 2 volts and forward current of 30 milliamps, with a power dissipation rating of 75 milliwatts. It functions reliably across a temperature range from -40°C to +85°C, ensuring durability in harsh environments.

Physical dimensions are 14.8mm wide, 12mm high, and 3.8mm deep. Compliance with RoHS standards guarantees environmentally safe manufacturing.

This product is ideal for use in electronic components, power and connectors, displays and optoelectronics, especially within LED Display Modules for industrial instrumentation, laboratory equipment, and commercial display boards.

Features two 7-segment digits with red LEDs and a dominant wavelength of 630nm. Each character measures 4.2mm in width and 7.6mm in height for clear readability. Designed with a grey face and white segments for excellent contrast.

Operates with a cathode common connection and surface mount type. Capable of operating from temperatures -40°C to 85°C to suit wide environments. Power dissipation is 75mW with a forward voltage of 2V and forward current of 30mA.

Luminous intensity of 27 millicandela ensures bright output for display applications. Compact external dimensions of 14.8mm width, 12mm height, and 3.8mm depth. Explore a broad selection of display modules in EnvMart for electronic and industrial automation system needs.
