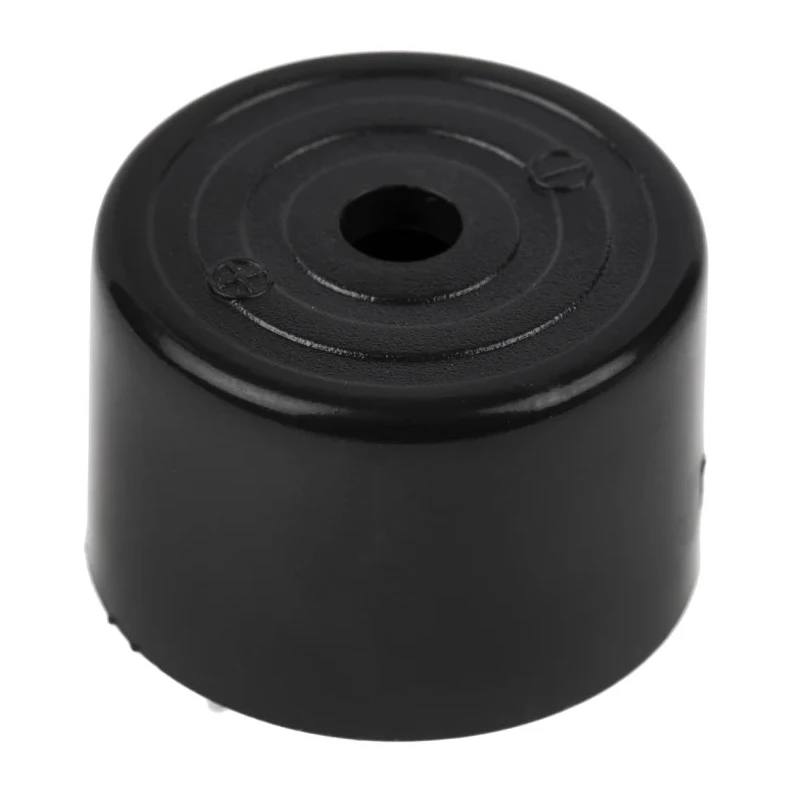

NEUTRAL Through Hole Continuous Internal Buzzer 93 dB, 3 V dc Min, 20 V dc Max 622-1348

RS PRO 622-1348 Through Hole Continuous Internal Buzzer is a high-quality piezo buzzer offering a continuous tone output at 93 dB sound level. This buzzer is designed for through-hole PCB mounting, making it suitable for integration in electronic circuits that require reliable audio signaling.

The buzzer operates within a voltage range of 3 V dc minimum to 20 V dc maximum and a supply current of 9 mA, delivering efficient sound performance at frequencies between 2900 Hz and 3.9 kHz. It’s engineered to withstand an operating temperature range from -30°C to +85°C, ensuring durability in diverse environments.

Its compact circular housing measuring 24.5 mm in diameter and 16 mm in height is lightweight and features a sealed base to protect against dust ingress, contributing to extended service life. This product is compliant with RoHS standards, highlighting its suitability for environmentally conscious applications.

Commonly employed in residential, industrial, and commercial settings including garage alarms, home security systems, and manufacturing alert systems, this buzzer ensures effective audible warnings and notifications.

This buzzer features through-hole mounting for easy PCB installation. Operates within a supply voltage range of 3 V dc minimum to 20 V dc maximum. The device produces a sound level of 93 dB with a tone frequency range between 2900 Hz and 3.9 kHz.

Designed to operate in temperatures from -30°C to +85°C. Consumes a supply current of approximately 9 mA for efficient operation. Compact circular design with dimensions 24.5 mm diameter and 16 mm height ensures lightweight and sealed base construction.

Compatible for use in domestic, commercial, and industrial environments requiring audible signaling. Features RoHS compliance ensuring environmental safety standards. Explore the RS PRO range for reliable Piezo Buzzers and other electronic components suitable for industrial and electronic applications.
