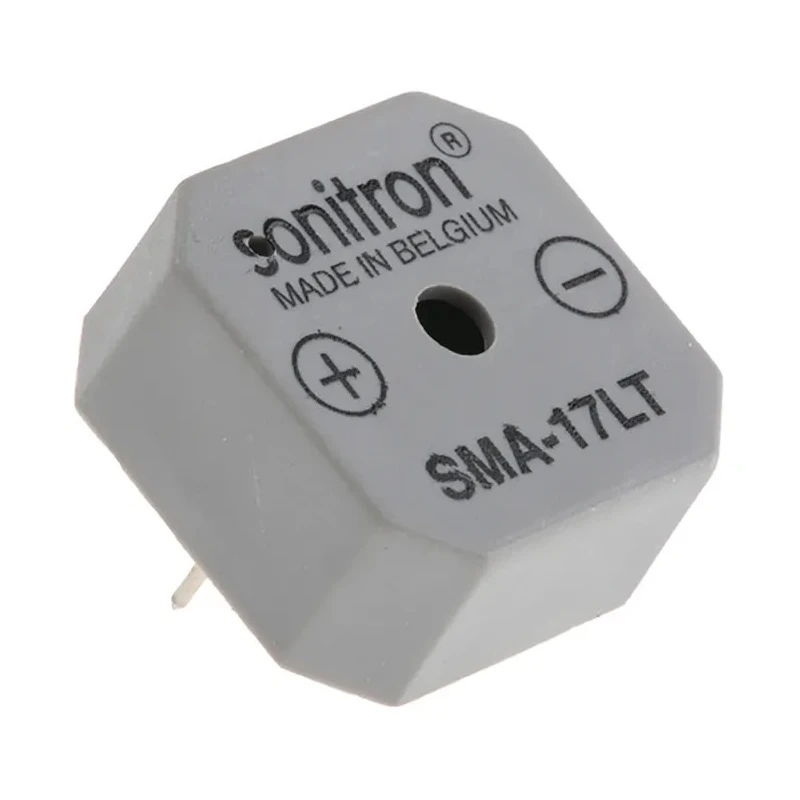

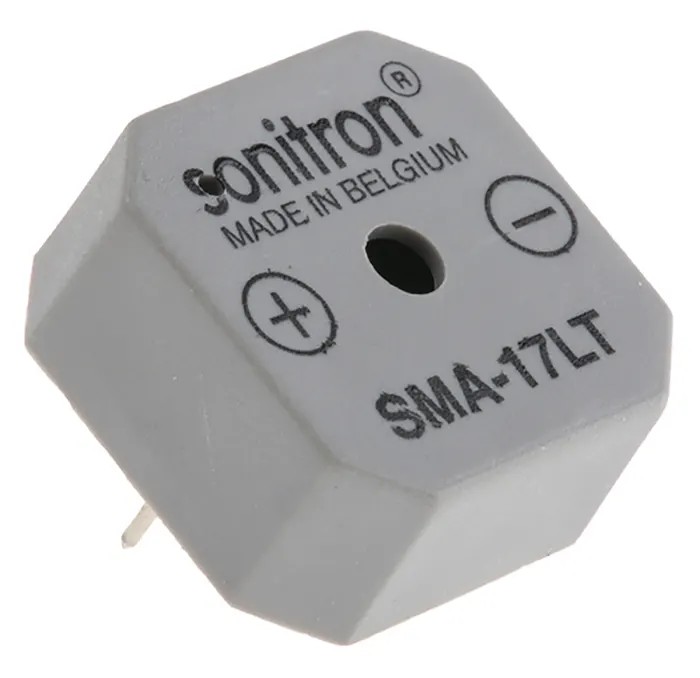

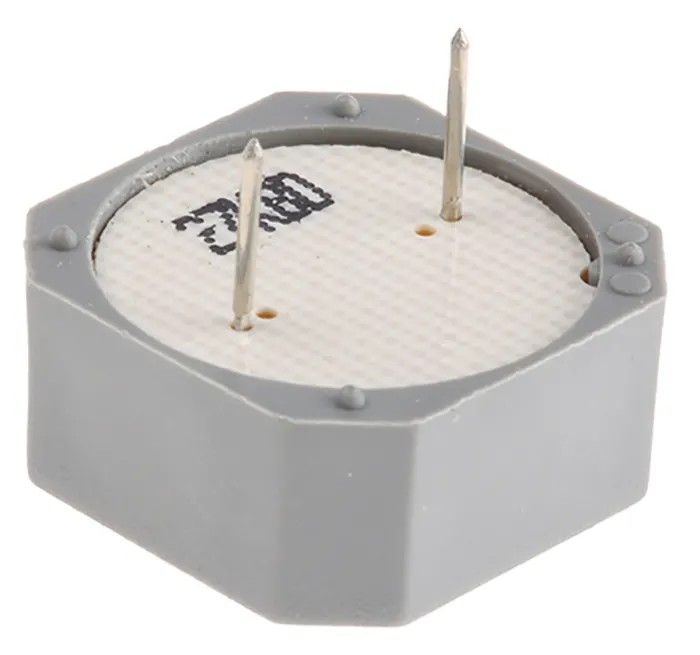

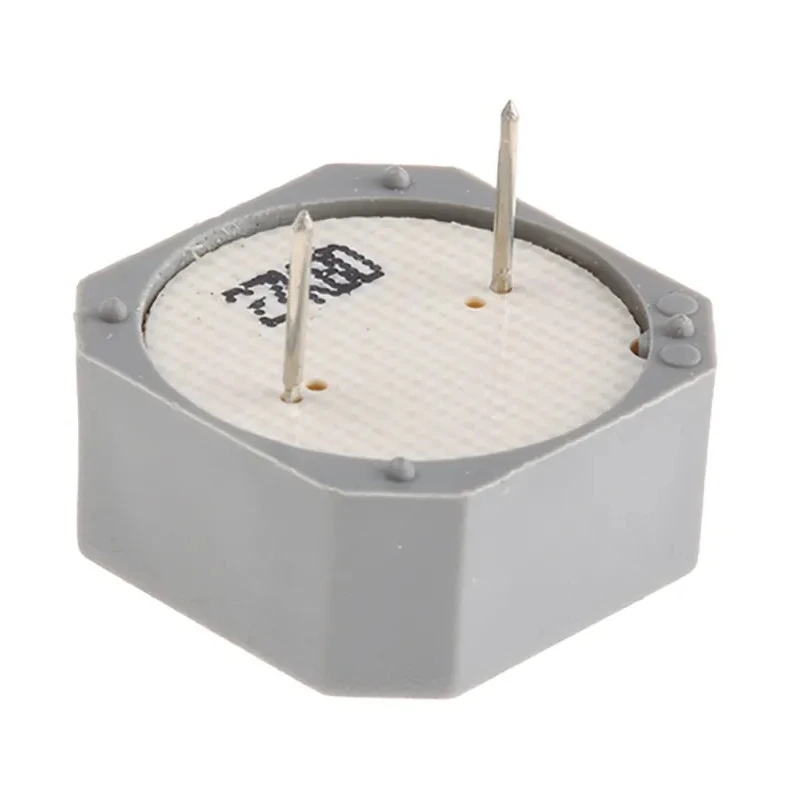

Sonitron 86 dB Through Hole Continuous Internal Buzzer 1.5 V dc Min, 15 V dc Max SMA-17LT-P10

Sonitron SMA-17LT-P10 is a high-performance through hole PCB mount buzzer with continuous internal drive, producing a loud 86 dB acoustic signal. Designed for electronic applications requiring reliable audible alerts, this buzzer operates at a minimum supply voltage of 1.5 V dc and supports a maximum supply of 15 V dc, making it versatile for various circuit designs.

The square cased design with dimensions 17.5 mm length, 8.5 mm height, and 17.5 mm depth enables compact mounting on PCBs. Its internal circuitry ensures stable continuous tone output within frequencies ranging from 2550 Hz to 3.45 kHz, suitable for diverse signaling requirements.

Operating temperature range from -20°C to 70°C allows use in many industrial and commercial electronic environments. The device complies with RoHS standards and is manufactured in Belgium, attesting to its quality and environmental compliance.

Square cased PCB mount through hole buzzer. Continuous tone with internal drive for stable signal output. Sound level of 86 dB for loud audible alerts. Wide operating voltage range from 1.5 V dc to 15 V dc. Operating temperature range from -20°C to 70°C.

Frequency range from 2550 Hz to 3.45 kHz. Consistent supply current of 15 mA. RoHS compliant and manufactured in Belgium.

This buzzer is ideal for industrial machinery, electronic instrumentation, alarms, HVAC systems, and automation where reliable audible indication is critical. Its compact size and through hole mounting ease integration into PCB designs.
