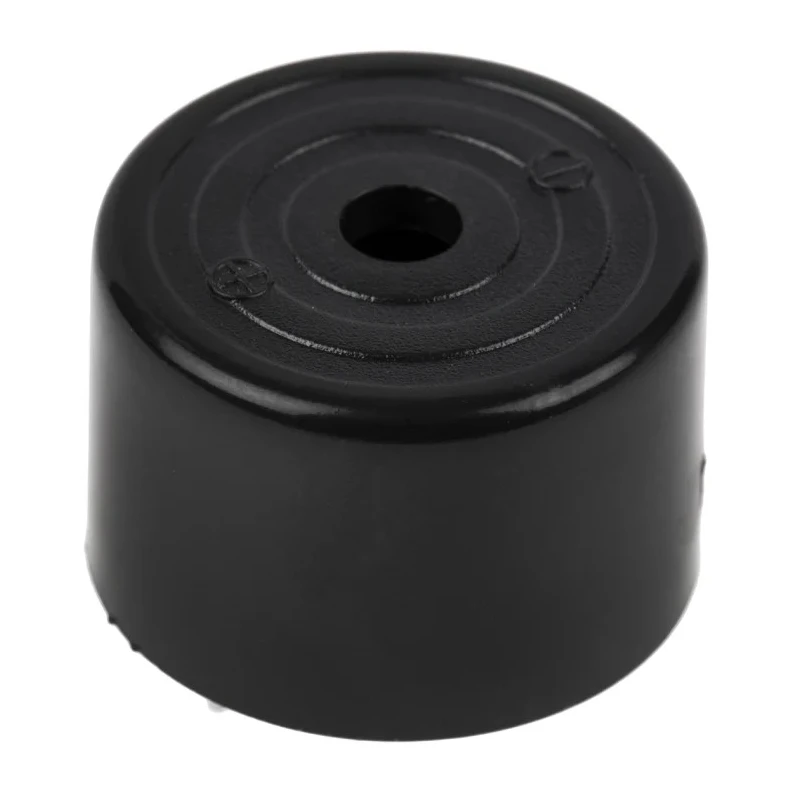

RS Pro 93 dB Through Hole Continuous Internal 16 mm Buzzer 3V dc Min 20V dc Max 6221348P

Free Delivery in India | Lowest Global Shipping Charges

RS Pro 93 dB Through Hole Continuous Internal 16 mm Buzzer 3V dc Min 20V dc Max 6221348P

Name: RS Pro 93 dB Through Hole Continuous Internal 16 mm Buzzer 3V dc Min 20V dc Max 6221348P
Brand: RS PRO
SKU: 425107
Price: 6.14 USD
Availability: InStock



Category Piezo Buzzers Brand RS PRO Condition New

Specifications

Country of Origin	India
Diameter	24.5mm
Brand	RS Pro
Sound Level	93dB
Height	16mm
Model	6221348P
Drive Type	Internal
Mount Type	Through Hole
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-30°C
Standards/Approvals	RoHS
Maximum Frequency	3.9kHz
Termination Style	Pin
Maximum Supply Voltage	20V dc
Minimum Supply Voltage	3V dc
Supply Current	9mA
Tone Type	Continuous
Minimum Frequency	2900Hz

Key Features

Operates between 3 V dc minimum and 20 V dc maximum supply voltage.
Produces a continuous tone using an internal drive mechanism.
Features through-hole mounting style with pin termination.
Operates reliably between -30°C and 85°C temperature range.
Has a maximum frequency of 3.9 kHz and minimum frequency of 2900 Hz.
Draws a supply current of 9 mA for efficient power usage.
Constructed with a sealed base housing for dust protection and extended life.
Lightweight design suitable for surfaces with limited load capacity.

Product Description

The RS Pro 6221348P is a high-performance through-hole piezo buzzer designed for continuous internal sound output with a sound level rating of 93 dB. This buzzer features a compact circular housing of 24.5 mm diameter and a 16 mm height, making it suitable for a wide range of electronic applications.

Its internal drive allows simple operation with a DC supply voltage ranging from 3 V minimum to 20 V maximum, drawing a low current of 9 mA. The buzzer emits a continuous tone with frequencies ranging from 2900 Hz to a maximum of 3.9 kHz. The through-hole mounting with pin termination ensures secure installation on printed circuit boards (PCB).

Designed for durability, the RS Pro buzzer can operate within a temperature range from -30°C to +85°C. The sealed base construction protects against dust ingress, thereby extending its service life, making it ideal for industrial, commercial, and domestic environments such as garages, homes, and manufacturing plants.

Its lightweight design is well-suited for installation on surfaces that have limited load-bearing capacity. The buzzer complies with RoHS standards, ensuring that it meets environmental and safety directives.

Operates over a wide voltage range of 3 V to 20 V DC. High sound output of 93 dB ideal for audible alerts. Through-hole mounting provides stable mechanical and electrical connection. Broad operating temperature range supports various environments.

Continuous tone output suitable for persistent alarm or notification. Compact size for space-constrained electronics assemblies. Low current consumption enhances energy efficiency. Sealed base construction prevents dust and prolongs reliability.

Compliance with RoHS assures environmental friendliness.

This buzzer is a reliable choice for integration into electronic systems where acoustic signaling is required. Browse more high-quality Piezo Buzzers and electronic components at EnvMart for your industrial, commercial, or laboratory applications.
