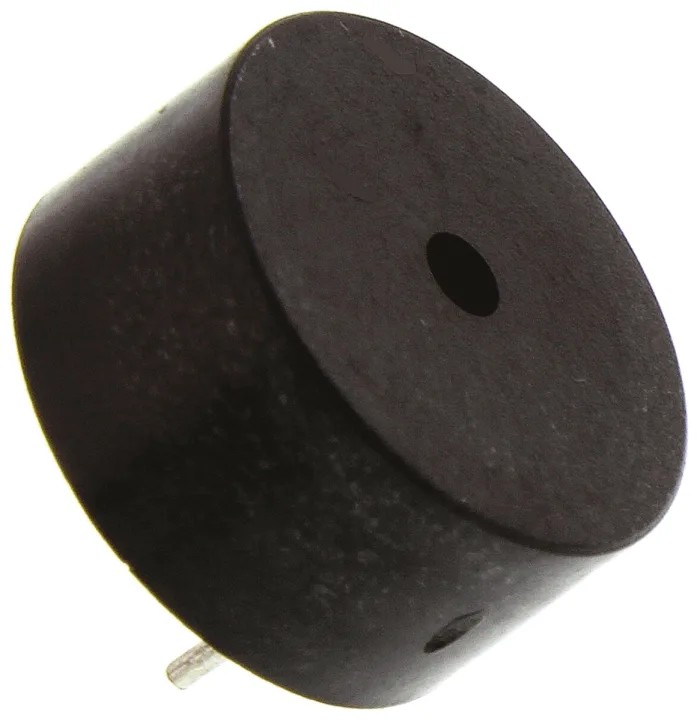

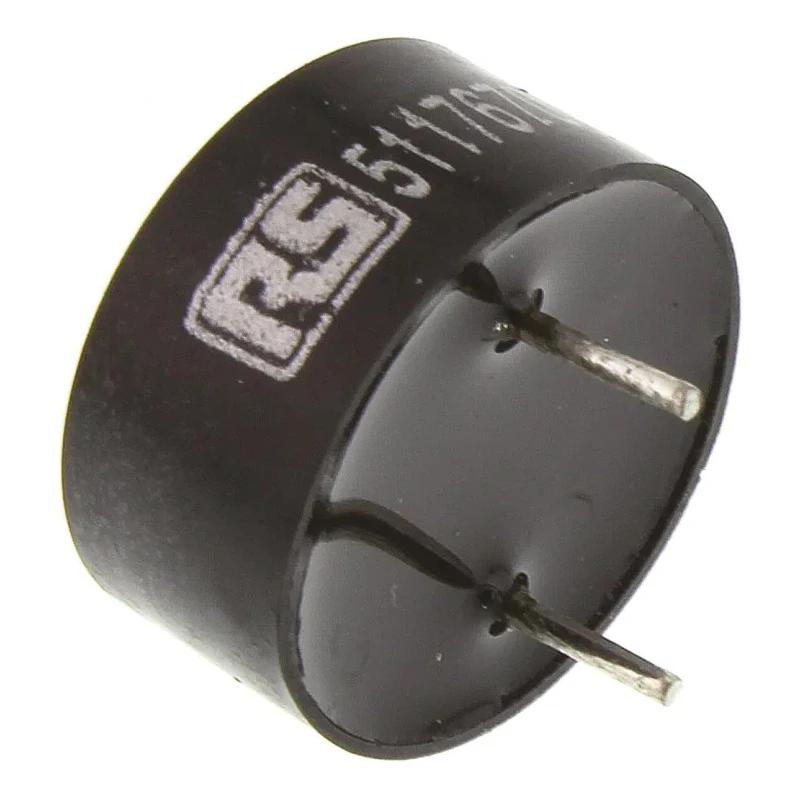

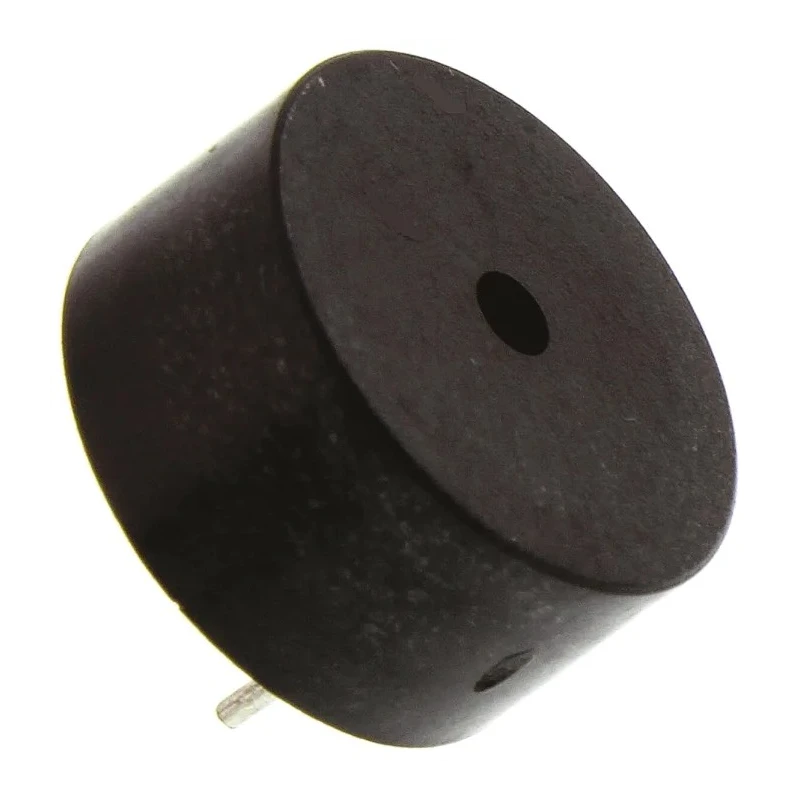

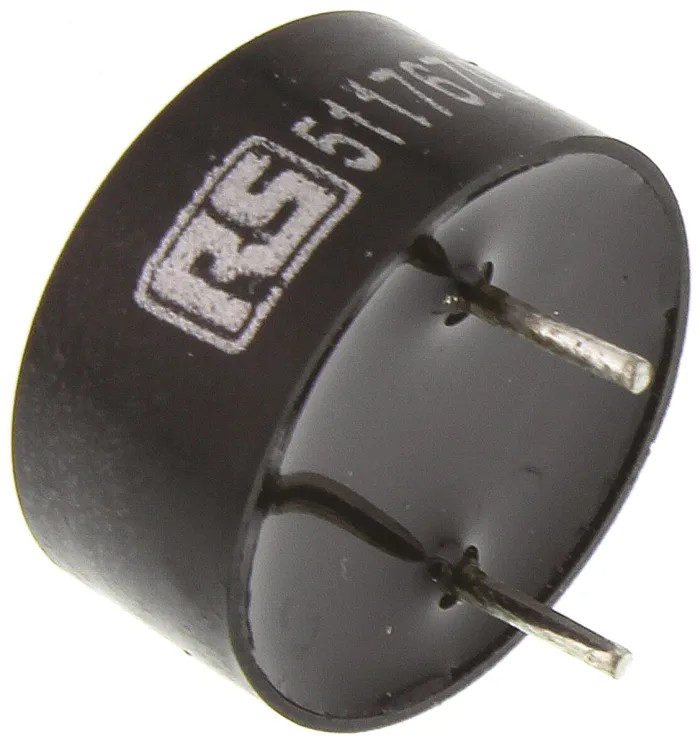

RS PRO Piezo Buzzer Component, Through Hole Mount, Continuous Tone, 80 dB Sound Level, 1 V AC Min, 20 V AC Max Model 511-7670

Name: RS PRO Piezo Buzzer Component, Through Hole Mount, Continuous Tone, 80 dB Sound Level, 1 V AC Min, 20 V AC Max Model 511-7670
Brand: RS PRO
SKU: 98940
Price: 3.26 USD
Availability: InStock



Category Piezo Buzzers Brand RS PRO Condition New

Specifications

Country of Origin	China
Diameter	13.8mm
Brand	RS PRO
Sound Level	80dB
Height	6.8mm
Model	511-7670
Drive Type	External
Mount Type	Through Hole
Maximum Operating Temperature	70°C
Capacitance	13nF
Minimum Operating Temperature	-20°C
Standards/Approvals	RoHS
Maximum Frequency	4.5kHz
Maximum Supply Voltage	20V ac
Minimum Supply Voltage	1V ac
Supply Current	1mA
Tone Type	Continuous
Minimum Frequency	3500Hz

Key Features

Operates on a low supply current of 1 mA for energy efficiency.
Features a compact diameter of 13.8 mm and height of 6.8 mm for versatile integration.
Produces a clear, crisp sound suitable for noisy industrial or commercial environments.
Designed to operate between -20°C and 70°C temperature range ensuring reliability.
Capacitance rated at 13 nF with sound frequency spanning 3500 Hz to 4.5 kHz.
Complies with RoHS standards for hazardous substance restriction.
Perfect for applications requiring continuous external drive tone output.

Product Description

RS PRO 511-7670 Piezo Buzzer Component is a highly reliable through-hole mount piezo buzzer delivering an 80 dB continuous tone with a supply voltage from 1 V AC minimum to 20 V AC maximum. This device provides crisp and clear sound output while maintaining low power consumption operating at just 1 mA supply current. Its compact dimensions with a diameter of 13.8 mm and height of 6.8 mm allow it to be integrated into various electronic designs without occupying significant space.

The buzzer operates effectively within an ambient temperature range of -20°C to 70°C, making it suitable for industrial, commercial, and consumer electronics applications where ambient conditions may vary. The sound frequency ranges from 3500 Hz to 4.5 kHz, ensuring audible signals that can cut through environmental noise.

This component is designed for external drive operation providing continuous tone output via through-hole mounting, which simplifies PCB assembly and enhances mechanical stability. It is compliant with RoHS regulations, ensuring that it meets environmental and safety standards for hazardous substance usage.

Typical uses include warning devices, alarms, and signal alerts in electronics equipment in factories, schools, and other noisy environments requiring reliable audible indicators. Operates on a low supply current of 1 mA, promoting energy-efficient designs.

Compact form factor with 13.8 mm diameter and 6.8 mm height suitable for tight spaces. Continuous tone of 80 dB makes it clearly audible in noisy settings. Operating temperature range of -20°C to 70°C for rugged use. Frequency range from 3500 Hz to 4.5 kHz to cover effective warning tones.

RoHS compliant ensuring environmental safety and regulation adherence. Designed for through-hole mounting ensuring secure PCB integration.

RS PRO products are known for high quality and are trusted globally by engineers for their durability and performance. Explore the RS PRO category on EnvMart for a wide selection of electronics components that meet rigorous industrial standards.
