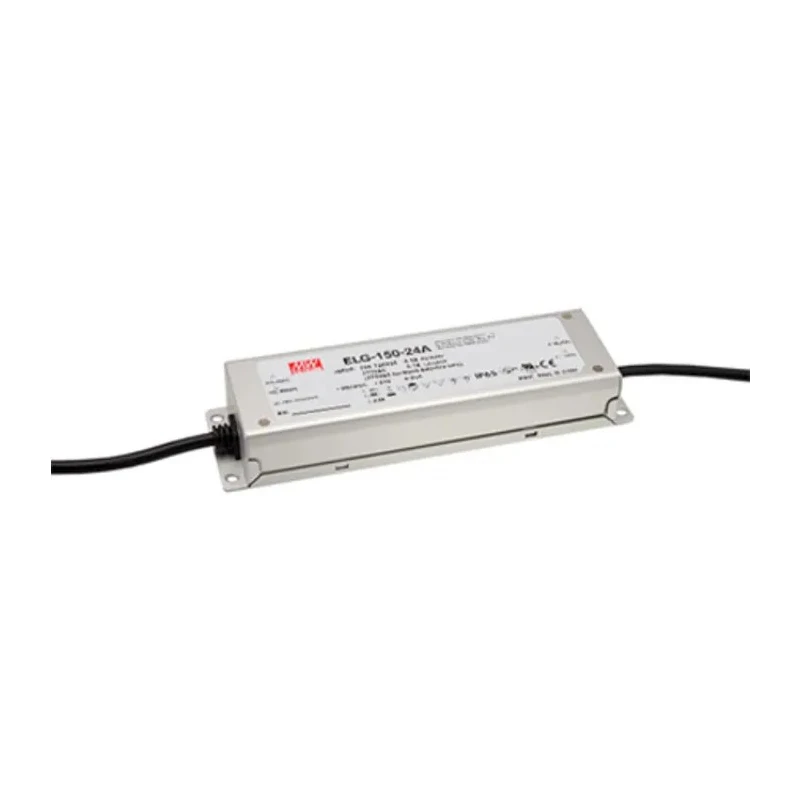

Mean Well DALI Dimmable LED Driver , IP67, Single Output, Constant Current, 315V, 150W, 900mA
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Screw |
| Series | ELG-150-C |
| Configuration | Encapsulated |
| Sub Type | LED Driver |
| Operating Modes | Constant Current |
| Number of outputs | 1 |
| Terminal type | Wire |
| Maximum Output Power | 150W |
| Input Voltage | 180, 295, 255, 417V ac |
| Output Voltage | 315V |
| Power Dissipation | 150W |
| Standards/Approvals | CB, CE:CCC, cULus Recognized, EN61347-1, EN61347-2-13, ENEC, PFC, UL8750 |
| Dimming Operation | DALI |
| Primary Type | AC-DC, DC-DC |
| Driver Current | 900mA |
| Standards/ApprovalsCB, CE | CCC, cULus Recognized, EN61347-1, EN61347-2-13, ENEC, PFC, UL8750 |
| CB, CE | CCC, cULus Recognized, EN61347-1, EN61347-2-13, ENEC, PFC, UL8750 |
Key Features
- Provides a constant current output at 900mA for reliable LED performance.
- Supports DALI dimming operation and potentiometer/PWM control options for flexible lighting adjustment.
- IP67 rated encapsulated metal housing ensures water and dust proof operation in demanding environments.
- Wide input voltage compatibility from 180V to 417V AC or DC for global operation.
- Maximum output of 315V and 150W meets high-power LED lighting requirements.
- Efficient fan-less design with up to 91% operating efficiency.
- Complies with major international safety standards, including CB, CE, ENEC, cULus, and UL8750.
- Ideal for industrial, architectural, street, bay, and floodlighting applications.
Product Description
Mean Well ELG-150-C500DA is a professional-grade DALI dimmable LED driver engineered for advanced LED lighting applications. This unit provides a single constant current output of 900mA, supplying up to 315V and 150W power, making it suitable for high-power LEDs deployed in commercial and industrial lighting systems.
Designed to maximize operational efficiency, the ELG-150-C500DA utilizes a robust, fully encapsulated IP67-rated metal housing. This ensures the driver is safe for use in environments exposed to dust, moisture, or harsh conditions, such as street lighting, architectural illumination, bay lighting, and floodlighting installations. The unit's fan-less design maintains high efficiency, reducing maintenance and operational noise.
With a wide international input voltage range (180V - 417V AC or DC), this driver adapts easily to diverse electrical systems and is suitable for global projects. Lighting designers can take advantage of DALI protocol support, potentiometer, and PWM signal dimming control for advanced scene and brightness adjustment.
Safety and compliance are assured through certifications to CB, CE, CCC, EN61347-1, EN61347-2-13, ENEC, PFC, cULus, and UL8750. The driver features a screw mount for secure installation and wire terminals for reliable connectivity.
Constant current output at 900mA maintains optimal LED performance and lifetime. Single output design simplifies deployment in dedicated lighting circuits. Maximum output voltage of 315V supports extended LED string architectures.
IP67 encapsulation allows outdoor or industrial use where environmental protection is critical. Class 2 power unit design provides built-in over-voltage and short circuit protection.
Applications range from industrial lighting, commercial architectural projects, public area illumination, manufacturing facilities, to municipal street and floodlighting installations.
Explore more LED Drivers and lighting solutions from Mean Well and other brands in the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this LED driver is 150W.
This model provides a constant current output of 900mA.
It supports a wide input voltage range from 180V to 417V AC or DC.
The output voltage can reach up to 315V.
It supports DALI dimming operation, as well as potentiometer and PWM control options.
The driver has an IP67 rating, ensuring it is water and dust proof.
It features a screw mount for secure installation.
It complies with several international safety standards, including CB, CE, cULus, and UL8750.
This driver is suitable for industrial, architectural, street, bay, and floodlighting applications.
It uses wire terminals for reliable connectivity.
The primary type of this driver is AC-DC, DC-DC.
