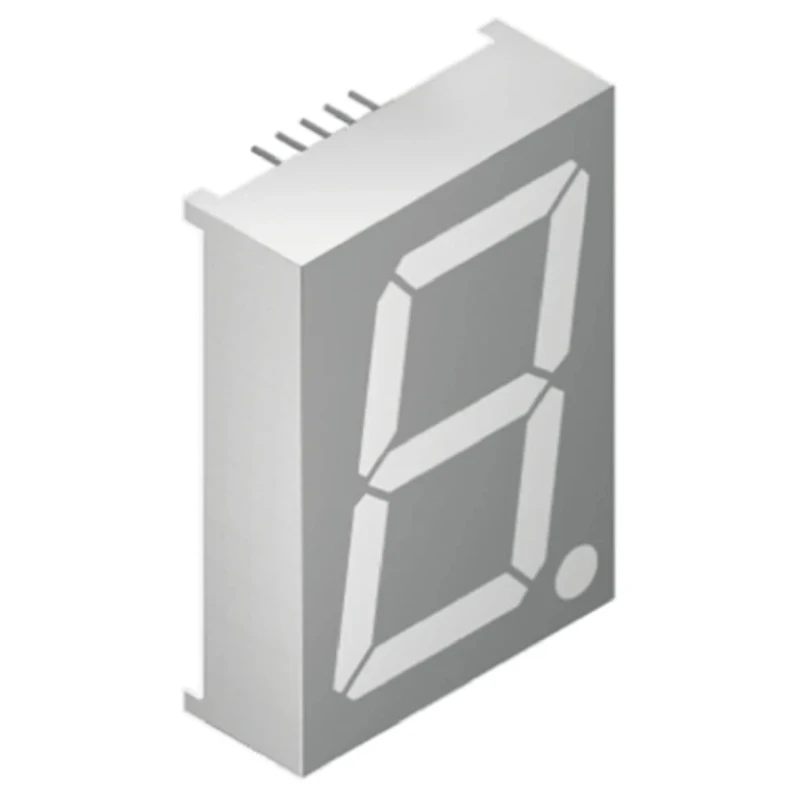

Kingbright 1 7 Segment LED Display Anode Red 260mcd Right Side 57 mm SA23-12SURKWA

Kingbright SA23-12SURKWA is a high-quality 1 7 Segment LED Display with Anode Red colour, providing a luminous intensity of 260mcd. This single character LED display is designed with a decimal point on the right side and a character height of 57mm, offering excellent readability in diverse applications.

The display features a grey face with white segments to enhance visual contrast, facilitating easy character recognition in both industrial and commercial environments. It supports through-hole mounting, making it compatible with a wide range of PCB assemblies.

Operating specifications include a forward voltage of 3.9V and forward current of 30mA, with power dissipation capped at 300mW to ensure reliable performance. It functions effectively within a temperature range of -40°C to 85°C, making it suitable for harsh conditions.

The Kingbright SA23-12SURKWA LED display is mechanically rugged and RoHS compliant, aligning with environmental standards. Its compact dimensions - external height 12mm, depth 70mm, width 48mm - allow convenient integration into electronic circuits and device panels.

This LED display finds widespread use in electronic component modules, instrumentation displays, and other embedded systems requiring clear numeric visualisation. The display is a single-character, 7-segment LED with red colour illumination.

Character width is 32.2mm and height is 57mm. Common connection type is Anode, with right-side decimal orientation. Designed for through-hole mounting on PCBs or sockets. Operates within -40°C to 85°C temperature range. Meets RoHS compliance and mechanical durability standards.

Typical forward voltage is 3.9V with 30mA current. Luminous intensity is 260mcd with dominant wavelength of 630nm.
