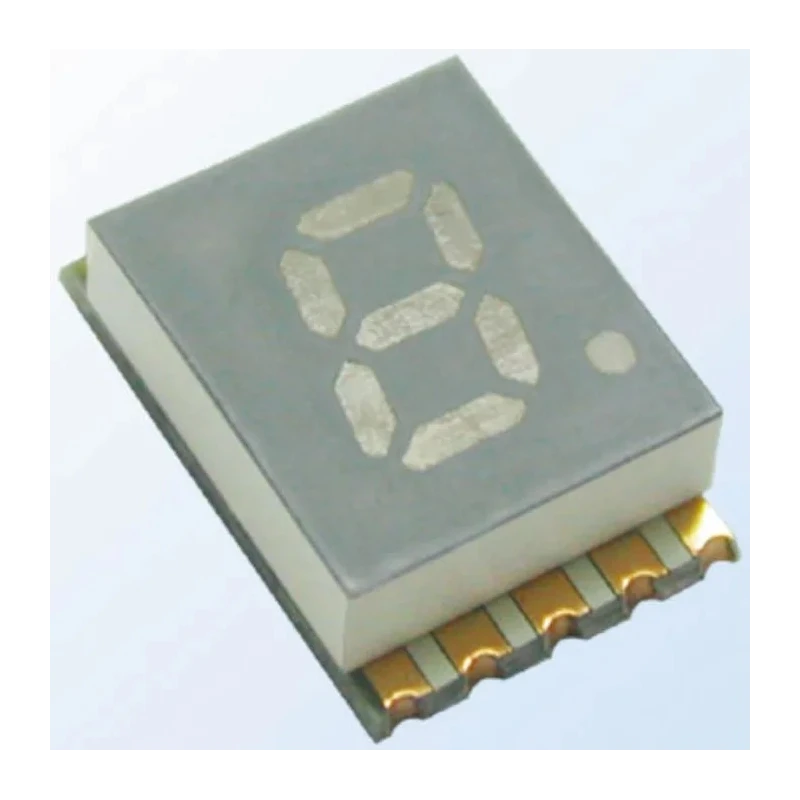

Kingbright 1 Character 7 Segment LED Display Anode Yellow 36mcd Right Side 7.6 mm KCSA03-107

Kingbright KCSA03-107 is a high-quality 1 character 7 segment LED display designed for electronic applications requiring reliable visual numeric indication. The display features a yellow LED color with a luminous intensity of 36mcd for clear visibility in various lighting conditions. It employs a common anode connection and a right side decimal point orientation for versatile display uses.

The character height measures 7.6 mm and width 4.2 mm, making it suitable for compact PCB designs. Surface mount configuration allows for easy integration on printed circuit boards. The external dimensions of 7.3 mm width, 12 mm height, and 3.8 mm depth enable a slim footprint.

Designed for durability, the display operates across a broad temperature range from -40°C to 85°C, ensuring stable performance in industrial, commercial, and laboratory environments. The grey face with white segments enhances contrast, improving readability.

This LED display complies with RoHS environmental standards, affirming its restriction of hazardous substances. Low current operation and power dissipation of 75mW contribute to energy efficiency. The forward voltage of 2V and forward current rating of 30mA define its electrical characteristics for circuit designers.

Kingbright 7 segment LED displays find applications in instrumentation, measurement devices, digital meters, and other electronic devices requiring numeric feedback. The rugged mechanical design supports long-term use and reliability.

The LED display features a luminous intensity of 36mcd. It has a character height of 7.6 mm and a width of 4.2 mm. The display operates with a forward voltage of 2V and forward current of 30mA. The mounting type is surface mount, with external dimensions 7.3 mm width, 12 mm height, and 3.8 mm depth.

The product supports an operating temperature range from -40°C to 85°C and complies with RoHS standards. The face color is grey with white segments for excellent character visibility. This LED display is mechanically rugged and suitable for efficient PCB mounting.

Explore the Kingbright LED Display series and related electronic components in the EnvMart catalog for reliable, high-performance display solutions.
