| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 2.6mm |
| Length | 4.8mm |
| Model | BZV85-C5V6,113 |
| Mount Type | Through Hole |
| Series | BZV85 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-41 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 1.3W |
| Diode Configuration | Single |
| Test Current It | 45mA |
| Maximum Reverse Leakage Current | 2μA |
| Nominal Zener Voltage Vz | 5.6V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 7Ω |
| Typical Voltage Temperature Coefficient | 1.35mV/°C |
| Magnatec, 5.6V Zener Diode 5% 1.3 W Through Hole 2-Pin DO-41Brand | Magnatec |

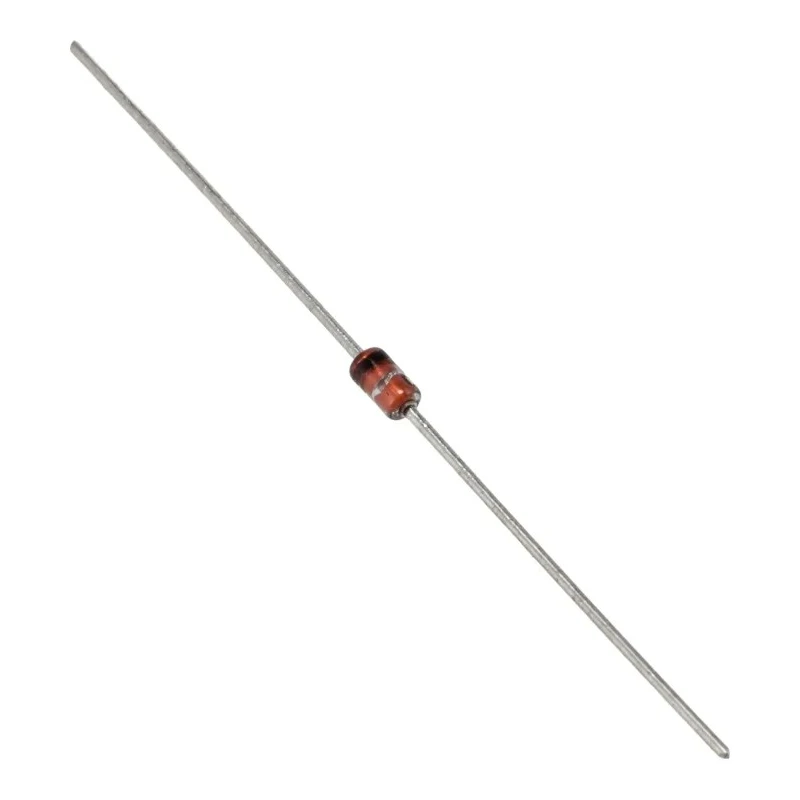

The Nexperia BZV85-C5V6,113 is a single 5.6V Zener diode, engineered for voltage regulation and circuit protection tasks within electronic design. Featuring a maximum power dissipation of 1.3W, this diode efficiently stabilizes voltage in diverse circuit applications.
Designed with a through hole mounting type, the device offers a robust integration option for printed circuit boards, providing mechanical stability and consistent performance. Its DO-41 package and 2-pin configuration make installation straightforward for engineers and technicians.
The Zener diode offers a nominal voltage of 5.6V and delivers precise regulation with a voltage tolerance of ±5%. A test current of 45mA optimizes device operation across load conditions, and its low reverse leakage current of 2μA ensures high efficiency and reliability in sensitive electronics.
Its maximum zener impedance is rated at 7Ω, enabling stable voltage characteristics, and a typical voltage temperature coefficient of 1.35mV/°C helps maintain consistent performance over a broad temperature range. The device functions reliably from -65°C up to 200°C, making it suitable for industrial, laboratory, and high-performance electronic use cases.
Applications include voltage stabilization in power supply circuits, overvoltage protection, and reference voltage generation for analog and digital systems. The BZV85-C5V6,113 is ideal for electronics manufacturing, repair, and circuit prototyping environments, offering dependable operation under demanding conditions.
The Nexperia BZV85 series stands out for its quality construction and performance consistency, backed by precise specifications and a reliable single element per chip. Ensure your electronics achieve steady and predictable voltage regulation by integrating this Zener diode.
Explore more Zener Diodes and Nexperia semiconductor solutions in the Electronics & Electricals category at EnvMart.
