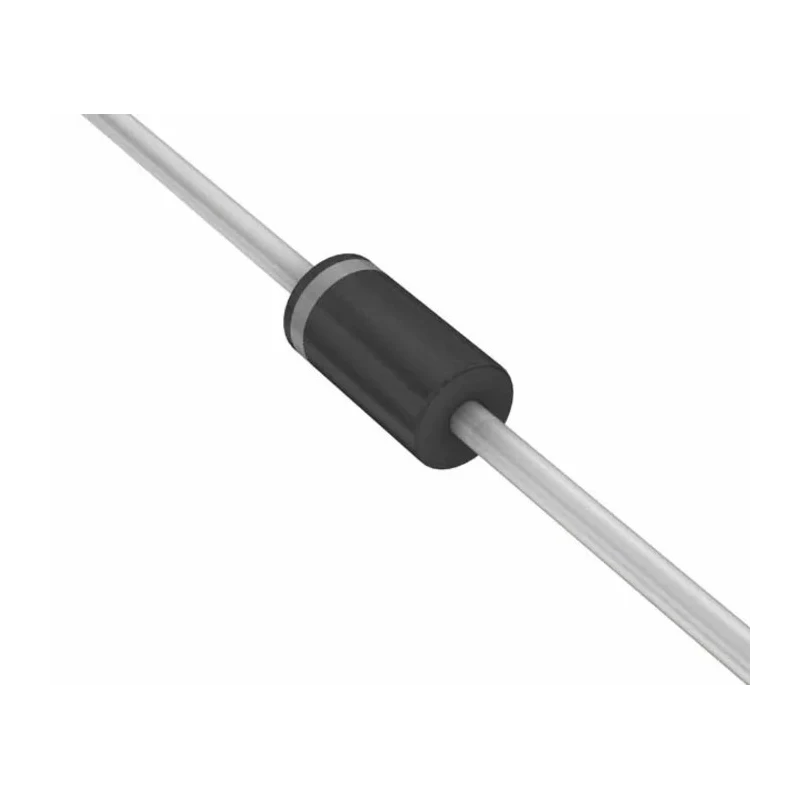

Vishay 1N4751A-TR Zener Diode 30V 1.3W ±5% Tolerance, Single Through Hole, DO-41, 2-Pin

Free Delivery in India | Lowest Global Shipping Charges

Vishay 1N4751A-TR Zener Diode 30V 1.3W ±5% Tolerance, Single Through Hole, DO-41, 2-Pin

Name: Vishay 1N4751A-TR Zener Diode 30V 1.3W ±5% Tolerance, Single Through Hole, DO-41, 2-Pin
Brand: Vishay
SKU: 82240
Price: 0.09 USD
Availability: InStock



Category Zener Diodes Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	2.6mm
Length	4.1mm
Model	1N4751A-TR
Mount Type	Through Hole
Series	1N4751A
Maximum Operating Temperature	175°C
Package Type	DO-41
Standards/Approvals	RoHS
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	1.3W
Diode Configuration	Single
Test Current It	8.5mA
Maximum Reverse Leakage Current	5μA
Nominal Zener Voltage Vz	30V
Zener Type	Silicon Planar
Maximum Zener Impedance	40Ω

Key Features

Delivers a nominal Zener voltage of 30V with ±5% tolerance, ideal for precision voltage reference applications.
Rated for 1.3W maximum power dissipation in a single-element silicon planar construction.
Designed for through-hole (2-pin) mounting configuration with a DO-41 package for easy assembly and reliable operation.
Suited for high-reliability environments with a maximum operating temperature up to 175°C and automotive AEC-Q101 qualification.
Low maximum reverse leakage current of 5μA ensures minimal power loss in sensitive electronic systems.
Compact dimensions of 4.1mm in length and 2.6mm in height, supporting dense board layouts.
Compliant with RoHS standards, suitable for regulated production environments.

Product Description

The Vishay 1N4751A-TR Zener Diode is a high-precision, silicon planar component engineered for voltage stabilization and clipping in modern electronic, industrial, and automotive applications. Operating at a nominal 30V Zener voltage with ±5% tolerance, this diode ensures stable voltage regulation, making it the ideal solution for protection and reference circuits in power management, measurement, and control systems.

This device features a single-element configuration designed for through-hole assembly, housed within the industry-standard DO-41 package. Its robust silicon planar construction can withstand up to 1.3W power dissipation, permitting effective thermal management in densely packed circuit boards.

The 1N4751A-TR is optimized for operational reliability with a maximum Zener impedance of 40Ω and test current of 8.5mA, supporting consistent performance under varying load conditions. The device maintains low leakage characteristics, with a maximum reverse leakage current of only 5μA, which helps reduce power losses in low-current designs and critical safety paths.

Designed to operate in demanding environments, this Zener diode supports a wide temperature range up to 175°C. It has successfully met the AEC-Q101 automotive standard, ensuring qualification for automotive and industrial applications where operational stability is critical. Its RoHS compliance guarantees suitability for green manufacturing processes, while its compact 4.1mm x 2.6mm form factor allows for high density, high-miniaturization board layouts.

The two-pin configuration ensures straightforward integration into standard PCB designs, and the diode is widely used in power supply protection, reference regulation, voltage clamping, and waveform shaping in a wide range of industries, such as automotive electronics, power supplies, instrumentation, and industrial process controllers.

For engineers and system designers, the Vishay 1N4751A-TR combines excellent electrical characteristics, rugged construction, and industrial-grade reliability. Discover more Zener Diodes and precision electronics from Vishay and related semiconductor product categories through EnvMart’s comprehensive catalog.
