| Country of Origin | China |
|---|---|
| Brand | onsemi |
| Height | 1.11mm |
| Length | 3.04mm |
| Model | BZX84C3V3LT1G |
| Mount Type | Surface |
| Series | BZX84 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 300mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 5μA |
| Nominal Zener Voltage Vz | 3.3V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 95Ω |
| Typical Voltage Temperature Coefficient | -3.5mV/K |
| Nexperia 1, 3.3 V Zener Diode, Single 250 mW 5 % Surface 3-Pin SOT-23Brand | Nexperia |

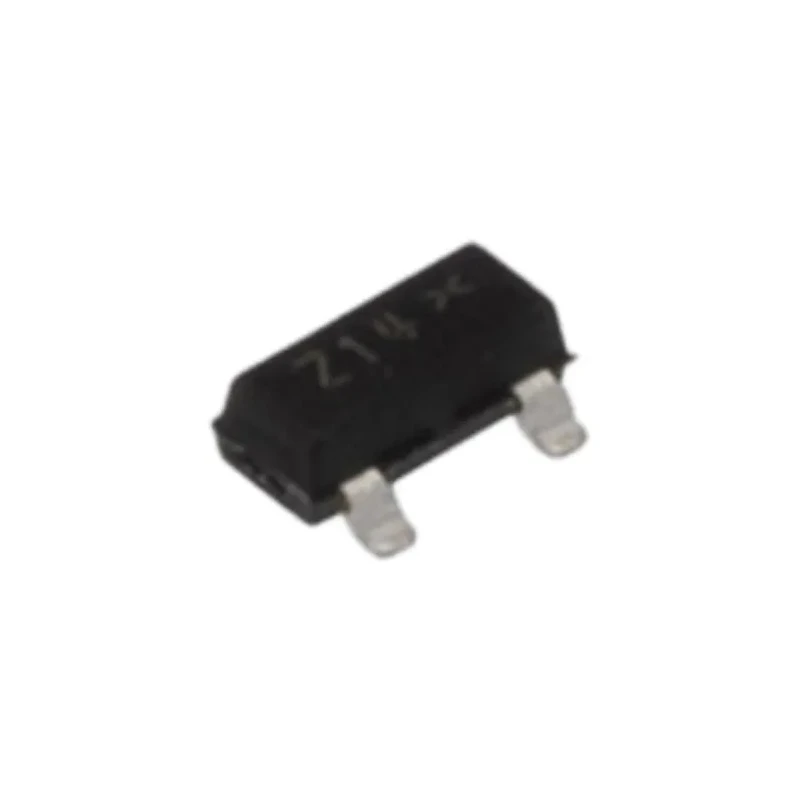

The onsemi BZX84C3V3LT1G is a surface mount Zener diode engineered for precise voltage regulation in a variety of industrial and electronic systems. Featuring a compact SOT-23 package, it facilitates automated board assembly for demanding, space-constrained environments such as high density PC boards, cellular phones, and handheld portables.
This diode is specified for a nominal Zener voltage of 3.3V, making it ideal for circuit protection and voltage stabilization applications. With single element configuration and a maximum power dissipation of 300mW, it delivers robust performance under challenging conditions. The device offers a voltage tolerance of ±5% and excellent thermal stability with a typical voltage temperature coefficient of - 3.5mV/K.
Reliability is further underscored by AEC-Q101 automotive standard compliance, supporting use in automotive and commercial systems. Its wide operating temperature window, from - 65°C to 150°C, allows deployment across diverse industrial environments. The maximum Zener impedance is rated at 95Ω, while the low reverse leakage current (5µA) minimizes parasitic losses.
Mechanically, the SOT-23 package measures 3.04mm in length and 1.11mm in height, optimizing space-saving in modern electronic designs. The 3-pin configuration simplifies mounting, and the device is suitable for high-density assembly processes. No special standards or approvals are listed, but the series is noted for robust construction and reliable voltage breakdown characteristics.
Common industrial, manufacturing, electronics, automotive and laboratory applications include voltage regulation, circuit overvoltage protection, reference voltage circuits, and signal conditioning. The product is especially favored in commercial PCB designs and automated manufacturing environments.
For more advanced Zener diodes and related voltage regulation devices, explore the full EnvMart Zener Diodes category or browse onsemi's industrial semiconductor solutions.
