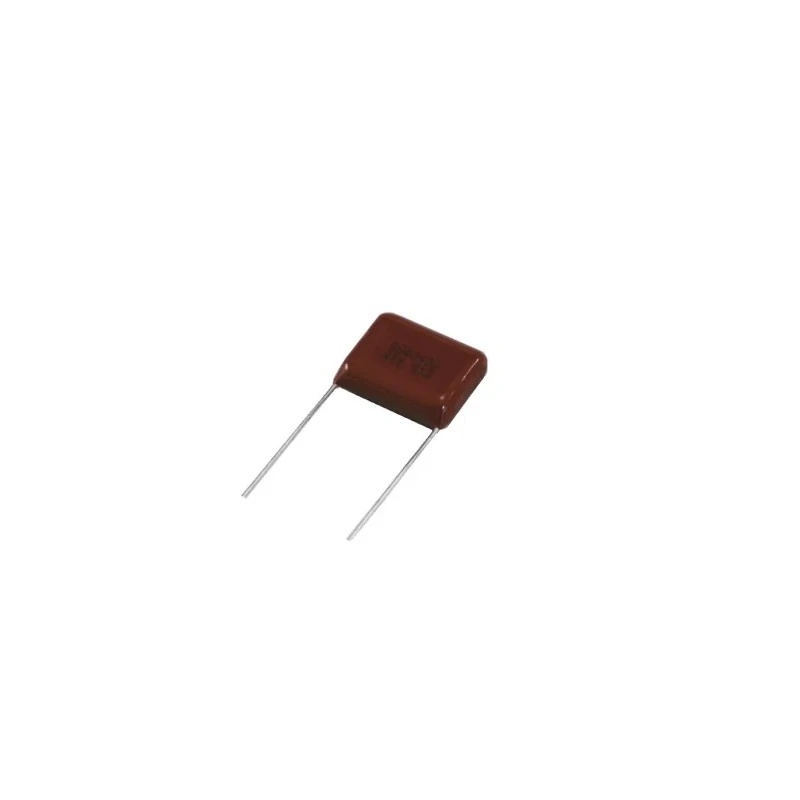

NISSEI MMX Film Capacitor 10 nF 630V AC 630V DC Through Hole, 7.5mm Lead Pitch MMX0630K10300000000
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | NISSEI |
| Height | 7.7mm |
| Length | 9.8mm |
| Model | MMX0630K10300000000 |
| Width | 4.2mm |
| Mount Type | Through Hole |
| Series | MMX |
| Maximum Operating Temperature | 85°C |
| Capacitance | 10nF |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Rated AC Voltage | 630V ac |
| Rated DC Voltage | 630V dc |
| Lead Pitch | 7.5mm |
| Lead Diameter | 0.6mm |
Key Features
- Provides a nominal capacitance of 10 nF for precise circuit tuning.
- Operates reliably at 630V AC and 630V DC for versatile power configurations.
- Through hole mounting ensures secure physical installation and dependable connectivity.
- Features a 7.5mm lead pitch facilitating easy PCB layout integration.
- Compact size and flame-retardant epoxy coating for improved safety and miniaturization.
- Self-healing performance enhances overall reliability in critical environments.
- Maximum operating temperature of 85°C supports robust thermal endurance.
- Lead diameter of 0.6mm assists in sturdy mounting and electrical performance.
Product Description
NISSEI MMX Film Capacitor MMX0630K10300000000 is a high quality passive electronic component engineered to deliver reliable performance in demanding AC and DC applications. Offering a capacitance of 10 nF, it is specifically designed for general purpose circuit use where stability and durability are essential. The device supports both 630V AC and 630V DC voltage ratings, allowing for flexible design choices and compatibility across diverse industrial and electronic systems.
Its through hole construction ensures secure installation and makes it suitable for PCBs requiring robust components. The 7.5mm lead pitch is ideal for standard PCB layouts, while a compact size (length: 9.8mm, height: 7.7mm, width: 4.2mm) enables integration in space-constrained assemblies. With a lead diameter of 0.6mm, mounting is stable and electrical contact is efficient.
Built with uniform flame-retardant epoxy resin coating thanks to advanced resin technology, the MMX capacitor offers enhanced safety and miniaturization. Its self-healing characteristic significantly increases operational reliability, especially in environments subject to voltage surges or transient events. Rated for a maximum operating temperature of 85°C, this capacitor maintains performance under challenging thermal conditions.
This MMX series capacitor is RoHS compliant and supports general purpose industrial, power electronics, laboratory, and automotive-adjacent (non-automotive standard) circuit applications. Ideal for use in high-voltage signal filtering, bypassing, coupling, and decoupling applications where reliability and safety are paramount.
Please note that this model is manufactured in Japan, guaranteeing high production standards and quality assurance. Its pin count is 2, aligning with standard through hole capacitor requirements.
Browse the EnvMart Electronics Components category to explore similar passive device options and other NISSEI capacitors suited to various industrial, laboratory, and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The NISSEI MMX Film Capacitor has a nominal capacitance of 10 nF.
It operates reliably at 630V AC and 630V DC, making it suitable for versatile power configurations.
The lead pitch of this model is 7.5mm, facilitating easy integration into PCB layouts.
This capacitor has a length of 9.8mm, a height of 7.7mm, and a width of 4.2mm.
The maximum operating temperature is rated at 85°C, supporting robust thermal endurance.
It features a pin count of 2, which aligns with standard through hole capacitor requirements.
This model uses through hole mounting, ensuring secure physical installation and dependable connectivity.
Yes, the NISSEI MMX Film Capacitor is RoHS compliant, ensuring it meets environmental standards.
The lead diameter is 0.6mm, which assists in sturdy mounting and efficient electrical performance.
It is designed for general purpose industrial, power electronics, laboratory, and automotive-adjacent circuit applications.
This model is manufactured in Japan, ensuring high production standards and quality assurance.
The self-healing characteristic enhances operational reliability, especially in environments subject to voltage surges or transients.
