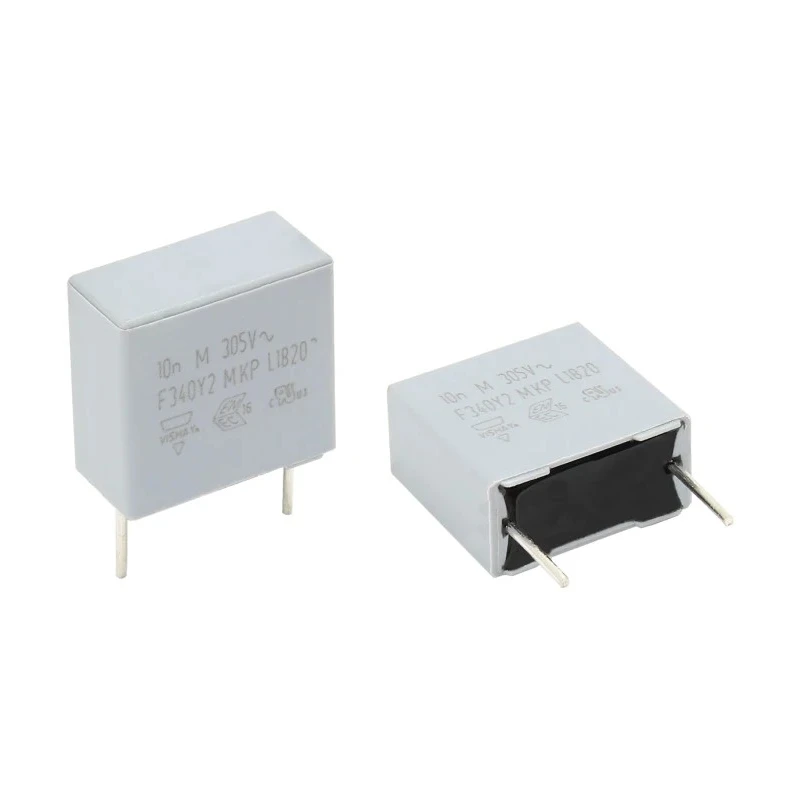

Vishay F340Y2 Y2 Film Capacitor 220nF, ±20% Tolerance, Through Hole, 305V AC/DC, Bulk, F340Y242230MIM2T0
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 22mm |
| Length | 26mm |
| Model | F340Y242230MIM2T0 |
| Packaging | Bulk |
| Width | 12mm |
| Mount Type | Through Hole |
| Series | F340Y2 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±20 % |
| Capacitance | 220nF |
| Terminal type | Radial |
| Lead Length | 5mm |
| Package/Case | T |
| Pin Count | 2 |
| Rated AC Voltage | 305V ac |
| Rated DC Voltage | 305V dc |
| Lead Pitch | 22.5mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 |
| Suppression Class | Y2 |
Key Features
- Y2 safety class film capacitor for line bypass applications.
- Capacitance of 220nF with ±20% tolerance ensures stable filtering performance.
- Designed for through hole mounting on PCBs.
- Rated for 305V AC and 305V DC for reliable operation in high voltage environments.
- Radial lead configuration with 22.5mm pitch and 5mm lead length.
- Meets automotive standard AEC-Q200 and suppression class Y2.
- Maximum operating temperature of 105°C for broad application range.
Product Description
Vishay F340Y242230MIM2T0 is a high-quality Y2 class Film Capacitor designed for standard line bypass applications, offering outstanding suppression performance between line and ground. It provides a precise capacitance of 220nF with a tolerance of ±20%, suitable for filtering and energy storage in electronic circuits where safety is vital.
Featuring a through hole mount configuration, this capacitor is easy to implement in PCB designs. Its radial leads with a 22.5mm pitch and 5mm lead length allow secure and reliable placements and connections in various assemblies. The robust construction supports a maximum operating voltage of 305V AC and DC, ensuring compatibility with high-voltage systems in industrial, automotive, and commercial applications.
The F340Y2 series adheres to stringent automotive standards, including AEC-Q200, and suppression class Y2, making it applicable in automotive electronics and line bypass protection. Its compact body, measuring 26mm in length, 22mm in height, and 12mm in width, fits easily into tight spaces, while the 0.8mm lead diameter ensures strong mechanical and electrical contacts.
This capacitor is certified to international standards (IEC 60384-14:2013, EN 60384-14, CSA, UL 60384-14, CQC, IEC 60065), confirming its reliability and quality for use in critical circuits. Bulk packaging facilitates efficient handling for manufacturing processes and reduces waste.
Y2 safety class for line bypass and ground protection. 220nF capacitance with ±20% tolerance for stable performance. Through hole mount, radial lead configuration. Certified to global standards for safety and performance.
Automotive AEC-Q200 compliance. 305V AC/DC rating supporting high-voltage applications.
Typical industrial use cases include electrical safety in consumer electronics, HVAC control boards, water treatment panels, and energy management systems. The Vishay brand ensures consistent performance under demanding conditions. Explore more Vishay capacitors and components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance value of 220nF with a tolerance of ±20%.
It is rated for a maximum operating voltage of 305V AC and 305V DC.
The capacitor measures 26mm in length, 22mm in height, and 12mm in width.
This unit is designed for through hole mounting on printed circuit boards (PCBs).
It features a radial lead configuration with a lead length of 5mm and a lead pitch of 22.5mm.
It meets the automotive standard AEC-Q200, ensuring suitability for automotive applications.
This model is classified as Y2 suppression class, suitable for line bypass applications.
The maximum operating temperature for this capacitor is 105°C.
It is packaged in bulk, which facilitates efficient handling during manufacturing processes.
The lead diameter is 0.8mm, ensuring strong mechanical and electrical contacts.
Typical applications include electrical safety in consumer electronics, HVAC control boards, and energy management systems.
It is certified to international standards including IEC 60384-14:2013, EN 60384-14, CSA, UL 60384-14, and CQC.
