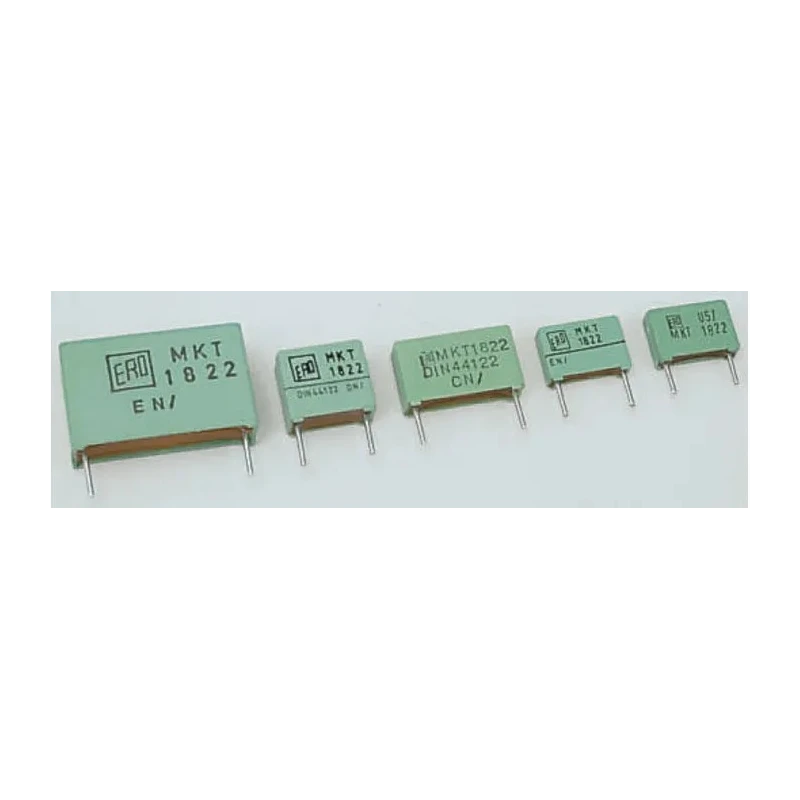

Vishay MKT 1822 Film Capacitor, 220 nF, 40V AC, 63V DC, Through Hole MKT1822422065

The Vishay MKT 1822 Series Film Capacitor, model MKT1822422065, is a highly reliable passive component engineered for precision blocking, bypassing, filtering, timing, coupling, and decoupling operations in low voltage circuits. With a capacitance of 220 nF, it meets demanding requirements for signal interference suppression and stable circuit performance.

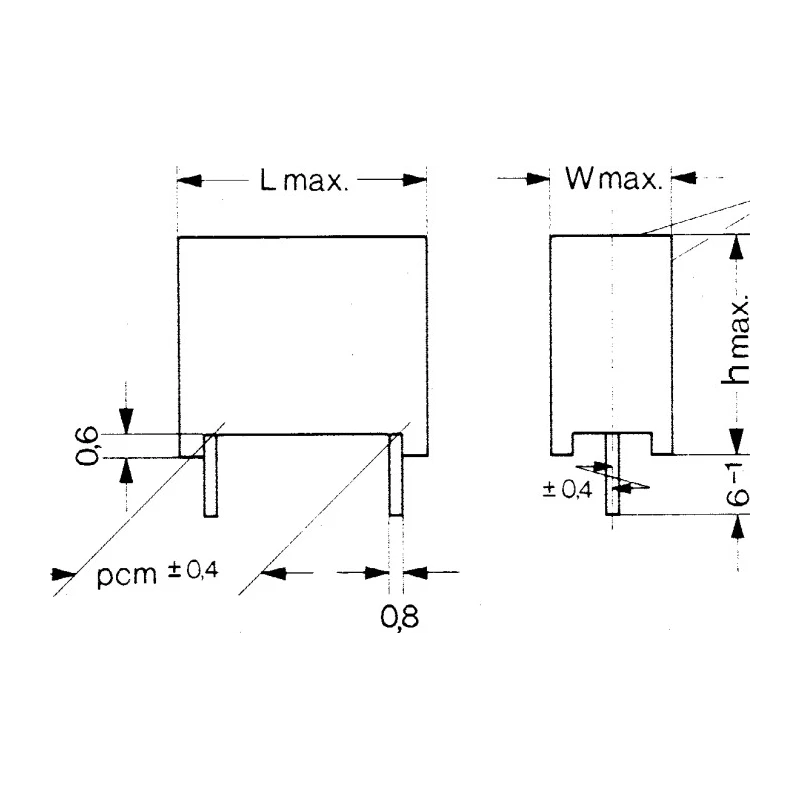

This capacitor is rated for 40V AC and 63V DC, enabling versatile use across an array of electronic designs. Its through hole mounting style allows for robust attachment to PCBs, enhancing mechanical durability and electrical connectivity. The lead pitch of 10 mm, combined with a lead diameter of 0.8 mm, fits standard PCB layouts and ensures secure and stable installation.

Featuring dimensions of 13 mm (length), 9 mm (height), and 4 mm (width), the component is compact, facilitating integration in space-constrained applications without compromising performance. The MKT 1822 Series is designed to operate reliably at temperatures up to 100°C, suitable for industrial and commercial electronics where durability is essential.

Compliance with IEC 60384-2 standards underscores the capacitor’s quality and reliability in professional applications. Its primary uses include interference suppression, signal coupling, decoupling, blocking, filtering, and timing circuits. The capacitor supports low voltage tasks in consumer electronics, industrial automation, laboratory instrumentation, and PCB manufacturing.

Key applications span industrial control systems, laboratory test equipment, HVAC controls, and manufacturing electronics, enabling consistent signal integrity and minimising electromagnetic interference. The Vishay MKT1822422065 is a dependable choice for engineers and designers seeking robust film capacitors for advanced circuit protection and signal processing.

220 nF film capacitor designed for blocking, filtering, and decoupling applications. Rated for 40V AC and 63V DC operation, supporting versatile circuit requirements. Through hole mounting style ensures stable installation on PCBs.

Lead pitch is 10 mm for compatibility with standard layouts. Dimensions are 13 mm length, 9 mm height, and 4 mm width. Maximum operating temperature up to 100°C for robust performance. Complies with IEC 60384-2 standards.

Applications include interference suppression, coupling, and timing circuits. Browse more Vishay capacitors in the Film Capacitors category on EnvMart for additional options and technical solutions.
