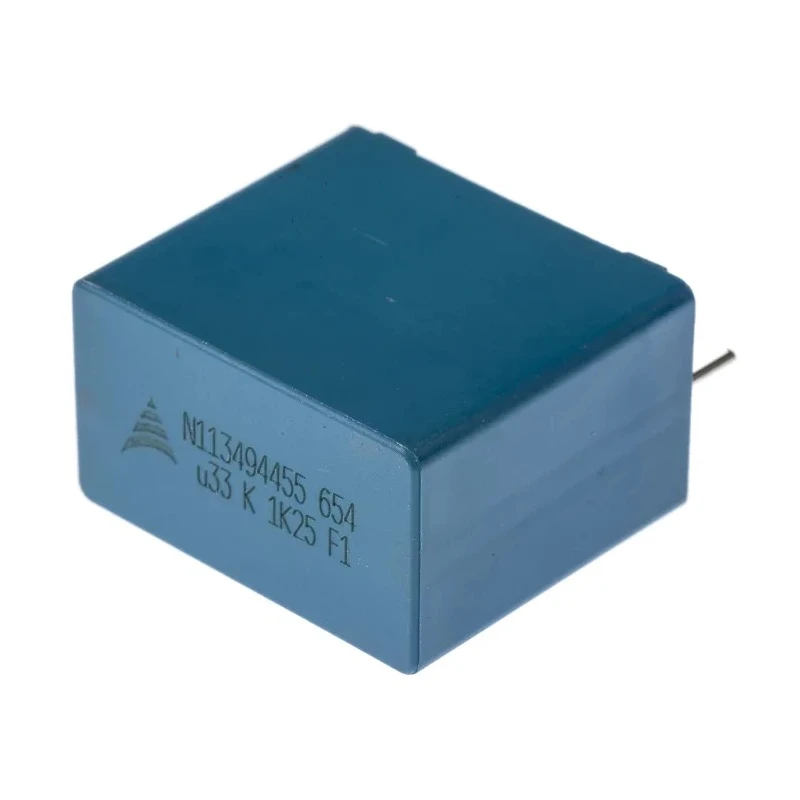

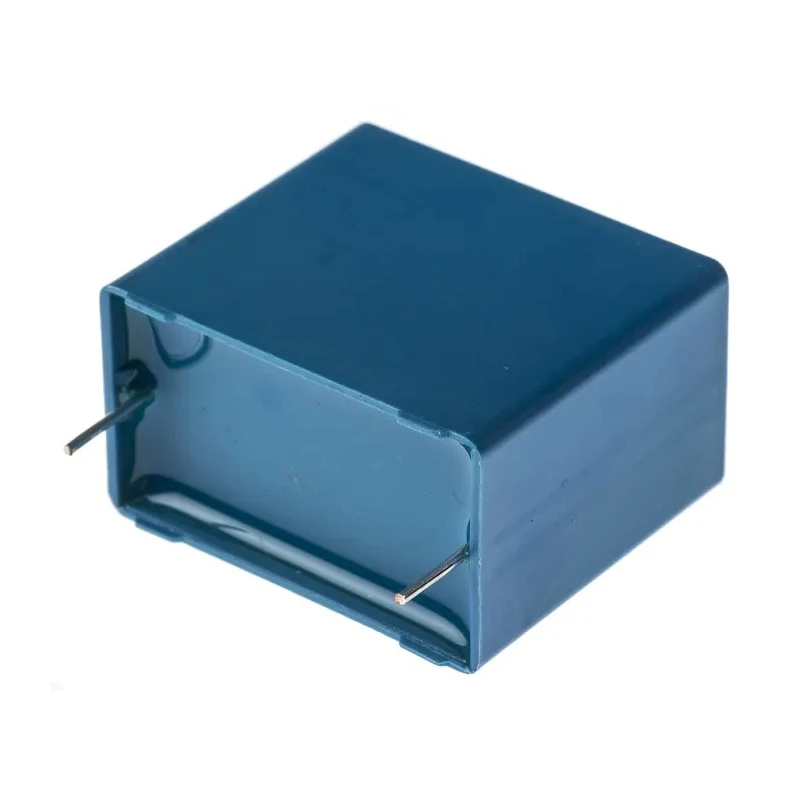

TDK B32654 Film Capacitor 330 nF 500V AC 1.25 kV DC Through Hole B32654A7334K000

Free Delivery in India | Lowest Global Shipping Charges

TDK B32654 Film Capacitor 330 nF 500V AC 1.25 kV DC Through Hole B32654A7334K000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	27.5mm
Length	31.5mm
Model	B32654A7334K000
Width	18mm
Mount Type	Through Hole
Series	B32654
Maximum Operating Temperature	100°C
Capacitance	330nF
Standards/Approvals	UL, RoHS
Pin Count	2
Rated AC Voltage	500V ac
Rated DC Voltage	1.25kV dc
Lead Pitch	27.5mm
Lead Diameter	0.8mm
Automotive Standard	AEC-Q200 Rev D

Key Features

High-quality film capacitor rated for 330 nF capacitance.
Supports 500V AC and 1.25 kV DC maximum rated voltage.
Through hole mount for secure PCB integration.
Lead pitch of 27.5mm and lead diameter 0.8mm suitable for industrial installation.
Automotive-standard AEC-Q200 Rev D compliance.
UL and RoHS approvals for enhanced safety and environmental compatibility.
Maximum operating temperature up to 100°C.

Product Description

The TDK B32654A7334K000 Film Capacitor is a premium passive component designed for reliable performance in demanding electronic circuits. With a capacitance rating of 330 nF, this capacitor supports high voltage applications with a maximum AC voltage of 500V and DC voltage up to 1.25 kV. Through hole mounting ensures firm integration into PCB designs, suitable for industrial, automotive, and commercial uses.

This capacitor features wound technology and an internal series connection, providing high pulse strength for circuits requiring stable operation. Constructed with a flame retardant plastic case UL 94 V-0 and epoxy resin sealing, it meets rigorous safety standards. The compact form factor with dimensions of 31.5mm by 18mm by 27.5mm allows for space-saving designs.

Compliance with the automotive standard AEC-Q200 Rev D makes this film capacitor ideal for automotive applications and other environments requiring vibration and thermal resistance. Its lead pitch of 27.5mm and lead diameter of 0.8mm facilitate ease of installation and compatibility with standard PCB layouts.

High contact reliability and durability are ensured by the robust materials and construction. The operating temperature range up to 100°C allows usage in a wide array of applications, from TV S-correction and flyback circuits to electronic ballasts and industrial controls.

Additional approvals include UL and RoHS, confirming adherence to industry safety and ecological requirements. The encapsulated construction helps protect components from moisture and mechanical stress, enhancing long-term reliability.

330 nF capacitance supports filtering and coupling circuits. Automotive and commercial uses benefit from AEC-Q200 compliance. High pulse strength suitable for demanding circuit applications. Space-saving dimensions simplify PCB layout integration.

Operating temperature up to 100°C extends application range. Stable performance under varying environmental factors. UL and RoHS certifications ensure safety and compliance. Through hole design simplifies installation and maintenance.

EnvMart offers a wide range of TDK film capacitors supporting industrial, automotive, and advanced electronics. Browse more electronic components in the Film Capacitor category for optimal passive solutions.
