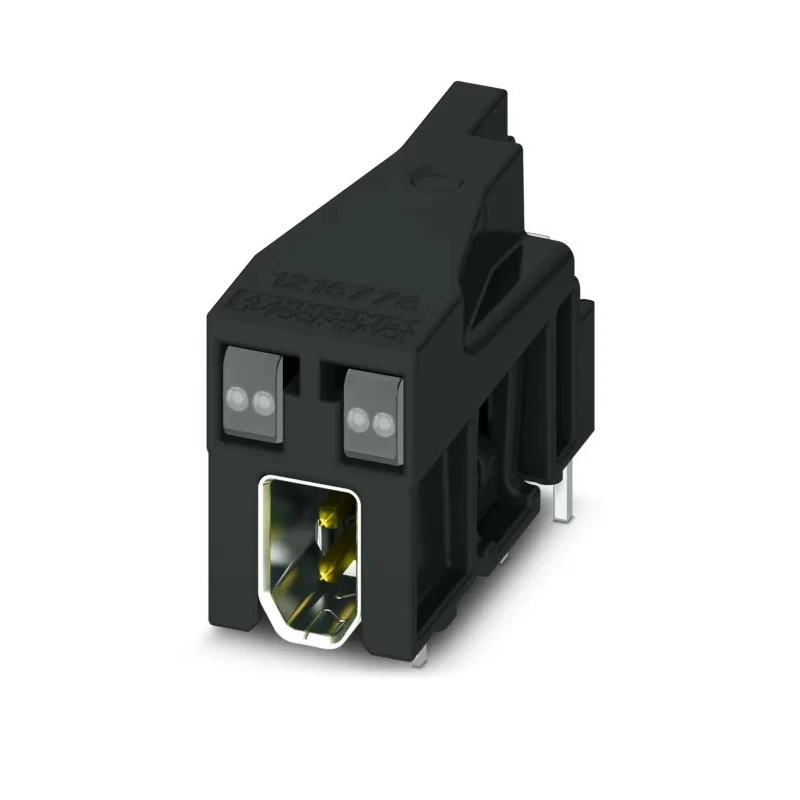

Phoenix Contact SPE Series Ethernet Connector Female, PCB Mount, CatB, Straight, 1 Port, 2 Way 1215778
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Phoenix Contact |
| Orientation | Straight |
| Length | 20.6mm |
| Model | 1215778 |
| Depth | 13.33mm |
| IP Rating | IP20 |
| Connector Type | Ethernet |
| Number Of Ways | 2 |
| Width | 7.52mm |
| Mount Type | PCB |
| Contact Material | Copper Alloy |
| Series | SPE |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | IEC, UL, RoHS |
| Contact Plating | Gold over Nickel |
| Connector Gender | Female |
| LAN Category | CatB |
| Ethernet Connector Type | SPE |
Key Features
- This Ethernet connector is suitable for industrial and networking applications.
- It supports data transmission up to 600 MHz with a robust industrial design.
- The connector features THR solder connection mounting type for PCB installation.
- Constructed with copper alloy contacts plated with gold over nickel for reliable conductivity.
- IP20 rated with a temperature operating range from -40°C to 85°C.
- Equipped with LED indicators and supports IEC, UL, RoHS standards compliance.
Product Description
Phoenix Contact 1215778 SPE Series Ethernet Connector is a high-quality female connector designed for PCB mounting applications, rated for CatB LAN category. Featuring two ways and one port, this straight orientation connector enables data transmission frequencies up to 600 MHz suitable for demanding industrial and electronic networking setups.
The connector has a robust industrial design with THR solder termination ensuring secure PCB installation. Contact material is a copper alloy plated with gold over nickel, guaranteeing excellent electrical conductivity and corrosion resistance. The IP20 rating ensures protection against solid objects but is not sealed for liquids.
Operating within a temperature range of -40°C to 85°C, this connector meets multiple international standards including IEC, UL, and RoHS, supporting safe and environmentally compliant deployments. Its compact dimensions of 20.6 mm length, 7.52 mm width, and 13.33 mm depth make it suitable for space-constrained electronic assemblies.
The connector includes LED indicators for status signaling and is suitable for use in industrial, laboratory, manufacturing, and commercial telecommunication equipment and systems.
This Ethernet connector is suitable for industrial and networking applications. It supports data transmission up to 600 MHz with a robust industrial design. The connector features THR solder connection mounting type for PCB installation.
Constructed with copper alloy contacts plated with gold over nickel for reliable conductivity. IP20 rated with a temperature operating range from -40°C to 85°C. Equipped with LED indicators and supports IEC, UL, RoHS standards compliance.
Dimensions are 20.6 mm length, 7.52 mm width, and 13.33 mm depth.
This Ethernet connector is an ideal solution for applications requiring reliable and high-performance network connections directly on printed circuit boards. It is designed primarily for industrial, laboratory, and manufacturing use where robust connector reliability and compliance with industry standards are critical.
Explore the broad range of Phoenix Contact Ethernet Connectors and related components on EnvMart for high-quality industrial electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This Ethernet connector supports data transmission frequencies up to 600 MHz, making it suitable for demanding industrial and electronic networking applications.
The dimensions of this connector are 20.6 mm in length, 7.52 mm in width, and 13.33 mm in depth, making it compact for space-constrained applications.
This connector operates within a temperature range of -40°C to 85°C, allowing it to function in various environmental conditions.
It features a THR solder connection mounting type designed for PCB installation, ensuring a secure fit on printed circuit boards.
The connector has an IP20 rating, which provides protection against solid objects but does not protect against liquids.
The contacts are made from a copper alloy and are plated with gold over nickel, ensuring reliable conductivity and corrosion resistance.
This model features one port, allowing for a single connection point in networking applications.
It complies with IEC, UL, and RoHS standards, supporting safe and environmentally compliant deployments.
The connector is designed with a straight orientation, suitable for direct connections on PCBs.
Yes, it is equipped with LED indicators for status signaling, providing visual feedback during operation.
This Ethernet connector is suitable for industrial, laboratory, manufacturing, and commercial telecommunication equipment and systems.
This model is a female connector, designed to accept male connectors in networking setups.
