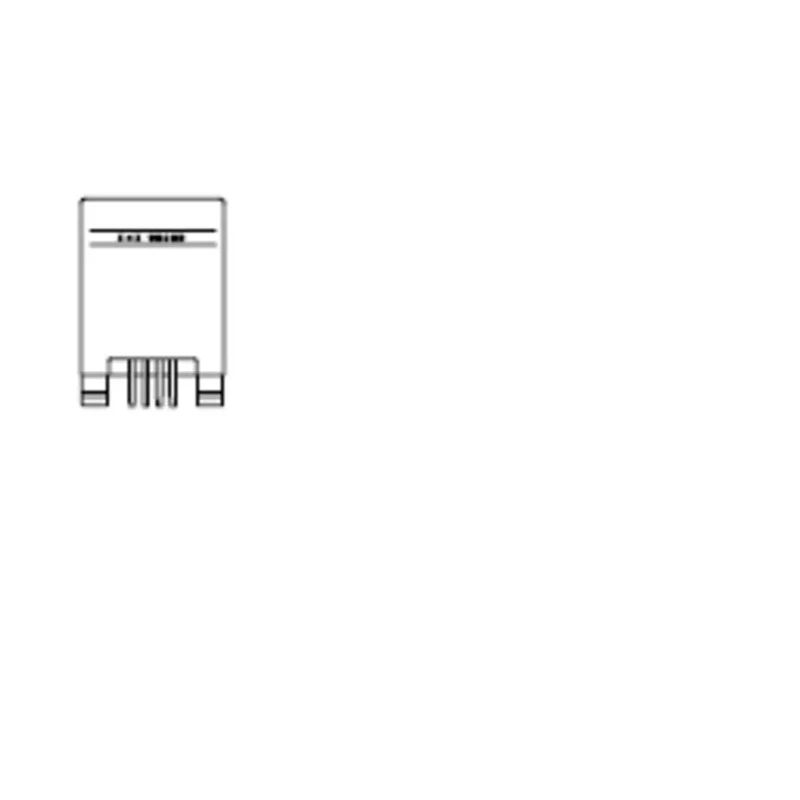

Molex RJ45 Connector Female Surface Mount Cat3 Unshielded Vertical 1 Port 6 Way
Specifications
| Country of Origin | Ireland |
|---|---|
| Brand | Molex |
| Orientation | Vertical |
| Length | 13.21mm |
| Model | RJ45 |
| Depth | 16.25mm |
| Connector Type | Modular Jack |
| Number Of Ways | 6 |
| Width | 16.64mm |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | 95522 |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Shield Type | Unshielded |
| Contact Plating | Tin |
| Connector Gender | Female |
| LAN Category | Cat3 |
| Ethernet Connector Type | RJ45 |
Key Features
- Surface mount type for easy PCB integration.
- Unshielded RJ45 connector suitable for Cat3 networking.
- Vertical orientation with a modular jack connector type.
- Constructed with copper alloy contacts plated in tin.
- Operates reliably between -40°C and 85°C.
- Features six ways and one port for connections.
- Designed with through-hole solder termination for durability.
- Manufactured in Ireland ensuring high quality standards.
Product Description
Molex RJ45 95522-2647 Connector is a high-quality female RJ45 modular jack designed for surface mounting on printed circuit boards. It is specifically engineered for Cat3 unshielded telecommunication and networking applications requiring a reliable Ethernet connection.
This Ethernet connector features a vertical orientation and a compact, high-profile design with integrated ribs for mechanical stability. It includes six ways and one port, accommodating up to six connections, making it suitable for multi-line telecom or networking equipment.
The connector contacts are made of copper alloy and are plated with tin, providing corrosion resistance and consistent signal quality over its rated operating temperature range from -40°C to 85°C. The termination type is solder, optimized for through-hole PCBs to ensure robust mechanical and electrical connections.
Dimensions of the connector are precise with a width of 16.64mm, depth of 16.25mm, and length of 13.21mm, allowing for space-efficient design on densely populated boards. This product is manufactured in Ireland, guaranteeing adherence to stringent quality controls.
This RJ45 female connector is ideal for industrial, telecommunications, and electronic component manufacturing sectors, delivering reliable network interconnect performance in equipment requiring Cat3 level LAN connectivity.
Surface mount type for easy PCB integration. Unshielded RJ45 connector suitable for Cat3 networking. Vertical orientation with a modular jack connector type. Constructed with copper alloy contacts plated in tin. Operates reliably between -40°C and 85°C.
Features six ways and one port for connections. Designed with through-hole solder termination for durability. Compact dimensions: 16.64mm width, 16.25mm depth, 13.21mm length. Manufactured in Ireland ensuring high quality standards.
Explore more Molex components and connectors in EnvMart’s extensive catalog for industrial and electronic applications.
Explore more products in our Ethernet Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This RJ45 connector features a vertical orientation, making it suitable for specific PCB layouts.
It operates reliably between -40°C and 85°C, allowing for use in various environments.
This connector has one port, accommodating a single connection point.
It uses a solder termination type, optimized for through-hole printed circuit boards.
The dimensions are 16.64mm in width, 16.25mm in depth, and 13.21mm in length, allowing for efficient use of space on PCBs.
The contacts are made of copper alloy and are plated with tin, providing corrosion resistance.
This connector is rated for Cat3 networking applications, suitable for telecommunication systems.
It is manufactured in Ireland, ensuring adherence to high quality standards.
This model is classified as a modular jack connector, specifically designed for Ethernet applications.
This RJ45 connector supports six ways, allowing for multiple connections.
This connector is unshielded, making it suitable for specific networking environments where shielding is not required.
It is suitable for industrial, telecommunications, and electronic component manufacturing sectors requiring Cat3 level LAN connectivity.
