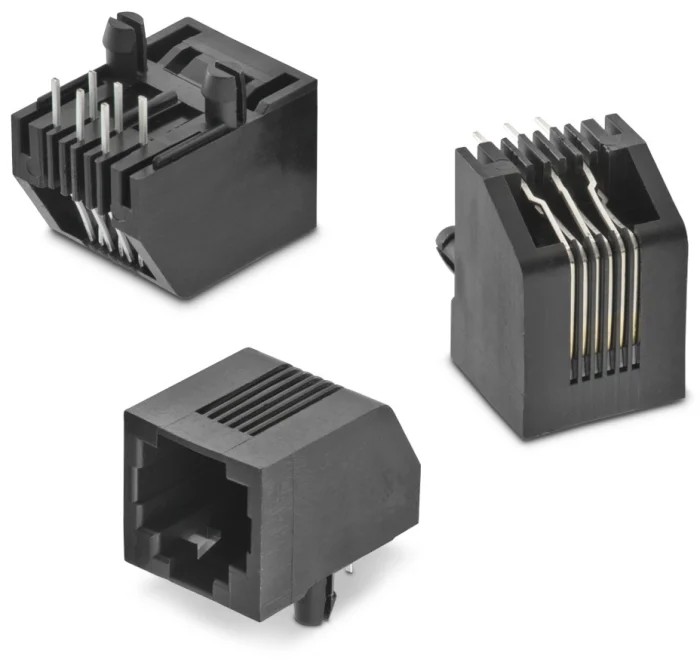

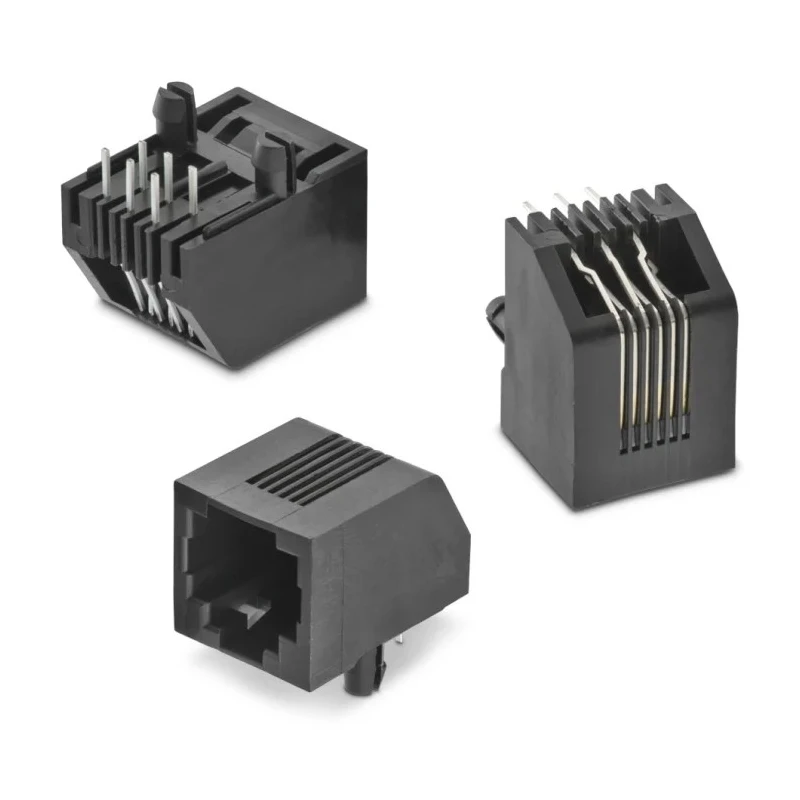

Wurth Elektronik WR-MJ Series RJ45 Connector Female PCB Unshielded Horizontal 1 Port 6 Way RJ45
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Length | 13.21mm |
| Model | RJ45 |
| Depth | 18.1mm |
| Connector Type | Modular Jack |
| Number Of Ways | 6 |
| Width | 12.57mm |
| Mount Type | PCB |
| Contact Material | Copper Alloy |
| Series | WR-MJ |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Shield Type | Unshielded |
| Contact Plating | Gold |
| Connector Gender | Female |
| Ethernet Connector Type | RJ45 |
Key Features
- Constructed for solder termination on PCB.
- Features copper alloy contacts plated with gold for reliable connectivity.
- Designed for horizontal mounting with plastic tab down.
- Operates reliably in a temperature range from -40°C to 85°C.
- Supports up to 500 mating cycles.
- Compact dimensions with length 13.21mm, width 12.57mm, and depth 18.1mm.
- Complies with RoHS standards.
- Ideal for Ethernet network applications requiring unshielded connections.
Product Description
Wurth Elektronik RJ45 Connector RJ45 is a female modular jack designed for electronic applications on printed circuit boards. This unshielded Ethernet connector has a horizontal orientation enabling easy integration into PCB designs. Its plastic tab-down form factor and six-position six-contact configuration ensure reliable and efficient connectivity in network setups.
Manufactured using copper alloy contact material and gold plating, it provides excellent electrical conductivity and corrosion resistance. The connector supports solder termination allowing a strong mechanical and electrical bond with PCB.
Operating temperature ranges from -40°C up to 85°C, ensuring performance stability under various environmental conditions. Additionally, it supports 500 mating cycles, making it suitable for repeated connect-disconnect operations commonly found in industrial, communication, and networking equipment.
The connector’s compact dimensions of 13.21mm in length, 12.57mm in width, and 18.1mm in depth make it suitable for space-constrained applications. Being RoHS compliant, the connector meets environmental and safety standards required in modern electronics manufacturing.
This Wurth Elektronik RJ45 connector is best suited for use in industrial automation, telecommunications, data networking, and other electronic equipment requiring a reliable PCB-mounted Ethernet interface.
Constructed for solder termination on PCB. Copper alloy contacts plated with gold for durability and conductivity. Horizontal orientation with plastic tab down for optimal PCB integration. Operating temperature from -40°C to 85°C.
Supports up to 500 mating cycles ensuring longevity. Compact size facilitates use in dense electronic assemblies. Meets RoHS compliance for environmentally safe manufacturing. Explore more products in the Ethernet Connectors category to find compatible and complementary components for your electronic systems at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C.
This connector is designed for horizontal mounting with the plastic tab down.
It supports up to 500 mating cycles, making it suitable for repeated connect-disconnect operations.
The connector has compact dimensions of 13.21mm in length, 12.57mm in width, and 18.1mm in depth.
This model uses solder termination for a strong mechanical and electrical bond with the PCB.
The contacts are made of copper alloy and are plated with gold for reliable connectivity.
Yes, it complies with RoHS standards, ensuring it meets environmental and safety standards required in electronics manufacturing.
The minimum operating temperature is -40°C, allowing for performance stability in various conditions.
This connector features one port in its design.
It is suitable for industrial automation, telecommunications, data networking, and other electronic equipment requiring a reliable PCB-mounted Ethernet interface.
The connector gender is female, designed for use in various electronic applications.
This model belongs to the WR-MJ series of connectors.
