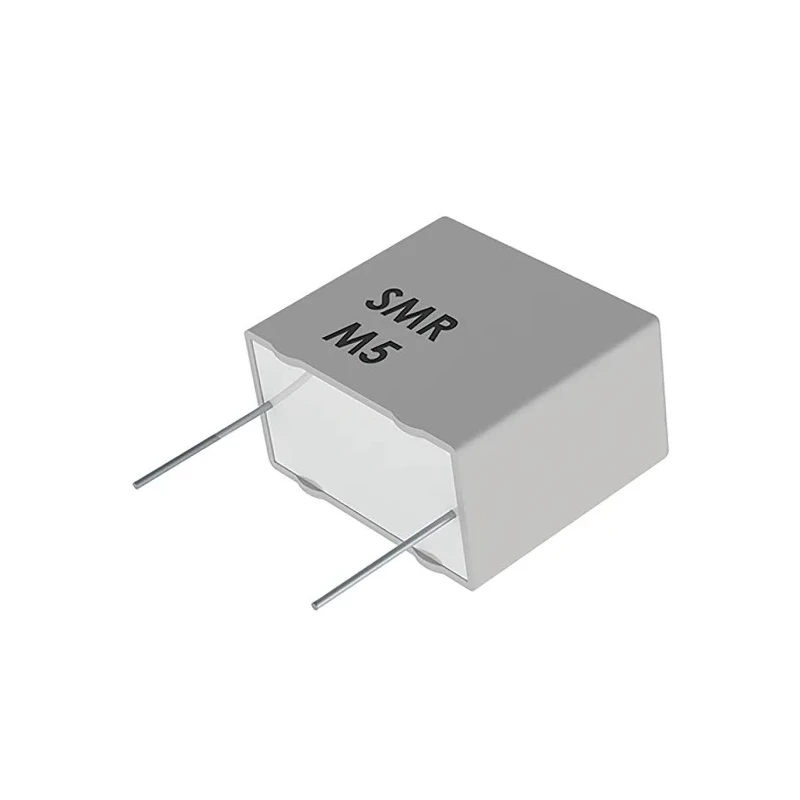

KEMET SMR Film Capacitor Through Hole 100 nF ±5% 63V DC 40V AC SMR5104J63J02L16.5CBULK
Specifications
| Country of Origin | Finland |
|---|---|
| Capacitance Range | 0.001 - 22 μF |
| Brand | KEMET |
| Height | 8mm |
| Length | 7.2mm |
| Model | SMR5104J63J02L16.5CBULK |
| Packaging | Bag |
| Width | 3.5mm |
| Mount Type | Through Hole |
| Series | SMR |
| Maximum Operating Temperature | 150°C |
| Tolerance | ±5 % |
| Capacitance | 100nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Solder |
| Lead Length | 16.5mm |
| Standards/Approvals | IEC 60068-1, RoHS |
| Pin Count | 2 |
| Rated AC Voltage | 40V ac |
| Rated DC Voltage | 63V dc |
| Lead Pitch | 5mm |
| Lead Diameter | 0.5mm |
| Capacitance tolerance | ±10%, ±20%, ±2.5% and ±5% |
| Lead Spacing | 5 - 27.5 mm |
Key Features
- Metallized polyphenylene sulfide film construction for stable performance.
- Offers 100 nF nominal capacitance with ±5% tolerance.
- Operates at 63V DC and 40V AC voltage ratings.
- Features through hole mounting with 5 mm lead pitch and 16.5 mm lead length.
- Supports automotive and industrial applications with wide operating temperature from -55°C to 150°C.
- Complies with IEC 60068-1 and RoHS standards for quality and safety.
- Solder type terminal with 2 pin configuration.
Product Description
KEMET SMR5104J63J02L16.5CBULK is a high-quality film capacitor engineered with a metallized polyphenylene sulfide film, designed for demanding electronic and automotive circuits. This capacitor delivers reliable performance, featuring a nominal capacitance of 100 nF and a tight tolerance of ±5%. Its stable characteristics ensure long-term functionality for precision electronic applications.
The device is rated for both 63V DC and 40V AC, making it versatile for a range of AC and DC circuit designs. With a through hole mount, installation is straightforward, facilitated by a 5 mm lead pitch and 16.5 mm lead length. Its 2 pin solder-type terminals offer secure connectivity in PCB assemblies.
Engineered for harsh environments, this capacitor operates across a wide temperature spectrum from -55°C to 150°C, making it well-suited for automotive, industrial, and commercial electronics where thermal conditions fluctuate. The robust encapsulation in self-extinguishing material provides additional safety in high-reliability contexts.
The SMR series incorporates vacuum-evaporated aluminum electrodes for enhanced electrical properties and radial leads welded to the contact metal layer at the winding ends. The compact form factor, with dimensions of 7.2 mm length, 3.5 mm width, and 8 mm height, enables efficient placement even in densely packed circuit boards.
Compliance with IEC 60068-1 and RoHS directives ensures this capacitor meets international standards for quality, environmental safety, and reliability. Its package is supplied in a bag format, optimal for bulk handling and manufacturing operations.
This capacitor is ideal for automotive, industrial electronics, power supply filtering, coupling and decoupling circuits, and signal processing modules. Its wide operating range and certified performance make it a preferred choice among engineers and OEMs.
Browse more film capacitors and related passive electronics under KEMET in the Film Capacitor category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a nominal capacitance of 100 nF with a tolerance of ±5%.
It is rated for a maximum of 63V DC and 40V AC, making it suitable for various circuit designs.
This unit features a through hole mounting design, which simplifies installation.
The dimensions are 7.2 mm in length, 3.5 mm in width, and 8 mm in height.
It has a 2 pin configuration with a lead pitch of 5 mm and a lead length of 16.5 mm.
It complies with IEC 60068-1 and RoHS standards, ensuring quality and environmental safety.
It features solder-type terminals, which provide secure connectivity in PCB assemblies.
It is constructed with metallized polyphenylene sulfide film, enhancing its performance stability.
It is suitable for automotive, industrial electronics, power supply filtering, and signal processing modules.
The lead diameter is 0.5 mm, which is compatible with standard PCB holes.
The capacitor is supplied in a bag format, which is optimal for bulk handling.
