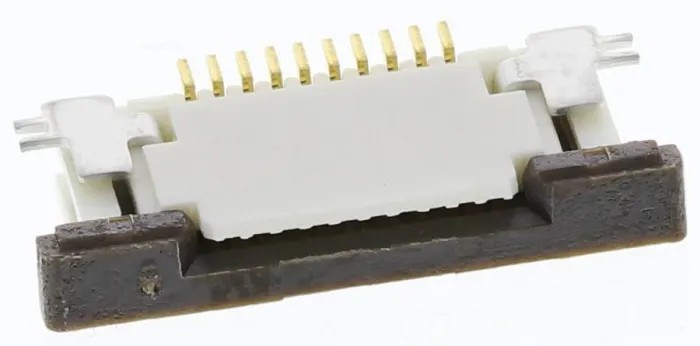

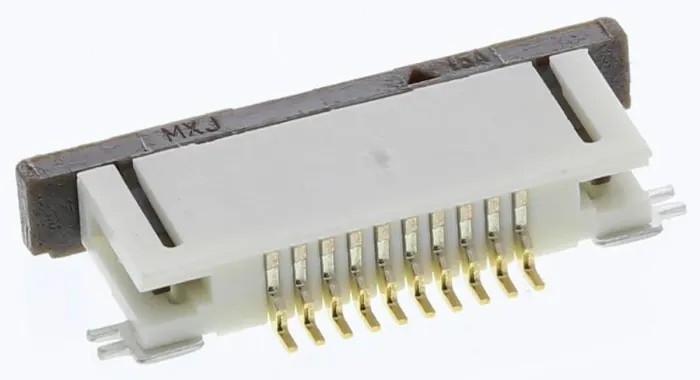

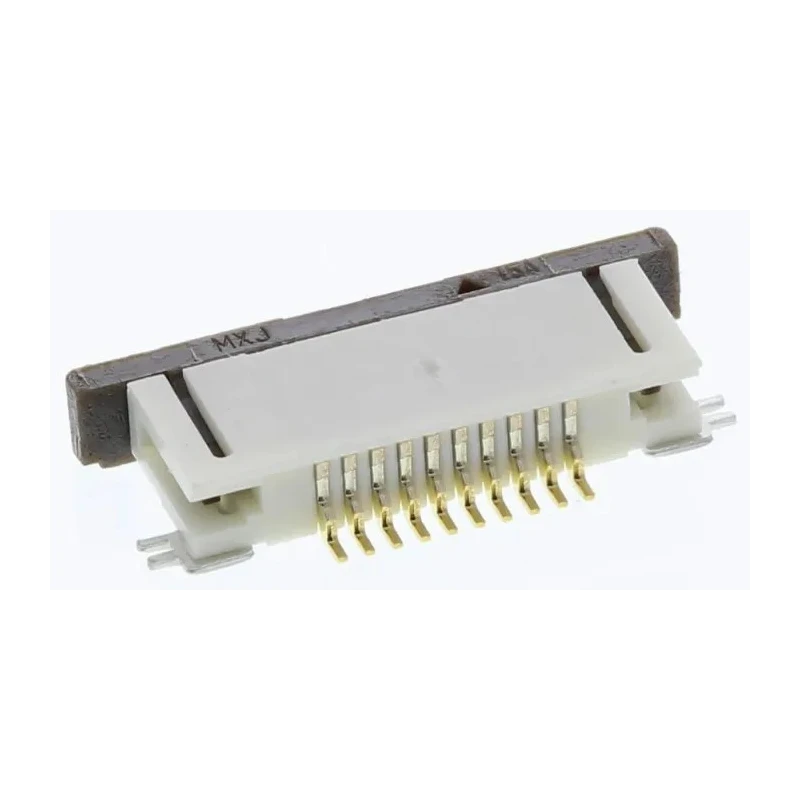

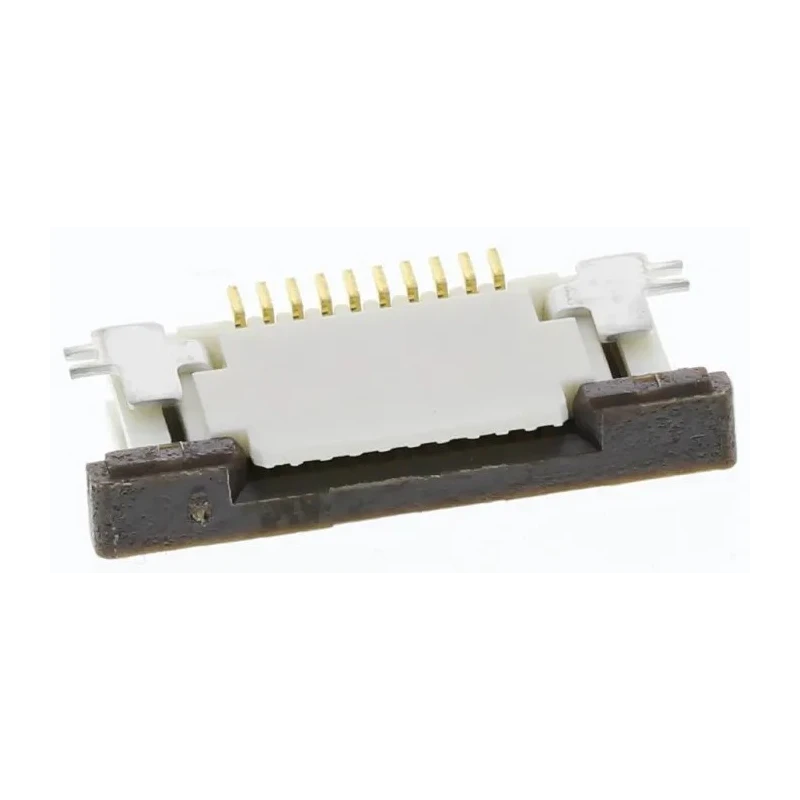

Molex FPC Connector 0.5 mm Pitch 10 Way Right Angle Female, Surface Mount, Solder Termination 52746-1071

Molex 52746-1071 is a high-quality FPC Connector featuring a 0.5 mm pitch and 10 right-angle female contacts, designed for surface mount technology with solder termination. This connector is part of the 52746 series, which offers Zero Insertion Force (ZIF) technology via a slide-type actuator, allowing for reliable, repeatable connections with minimal wear over time. The connector's hinged actuator design facilitates the easy insertion of flexible printed circuits (FPCs), making it suitable for compact and space-constrained electronic assemblies.

The contacts are composed of phosphor bronze with gold plating over nickel, ensuring excellent electrical conductivity and corrosion resistance. The nylon housing provides robust mechanical support and insulation. With a rated voltage of 50V AC and current capacity of 500mA, it is compatible with many signal and data transmission applications.

Operating temperature ranges from -20°C to 85°C, enabling the connector to perform reliably in diverse industrial and consumer environments. Its locking mechanism secures the connection, and the solder tabs on the base add enhanced PCB retention and strain relief, increasing durability and mechanical stability during thermal cycling and vibration.

This connector series is widely used in automotive navigation and audio systems, digital imaging equipment, home security, mobile devices such as smartphones and tablets, medical monitors, and computing devices including tablets and notebooks. Its compact dimensions and top-aligned contacts that flex with cable movement ensure long-lasting reliable connections even in dynamic conditions.

Space-saving design for dense packaging scenarios. ZIF slide actuator minimizes insertion force and wear. Gold-over-nickel phosphor bronze contacts ensure excellent conductivity. Nylon housing for durable insulation and mechanical strength.

Solder tabs increase PCB retention and strain relief. Operating temperature range from -20°C to 85°C. 50V AC voltage and 500mA current rating. Locking mechanism enhances connector stability. Ideal for automotive, consumer electronics, medical, and mobile device applications.
