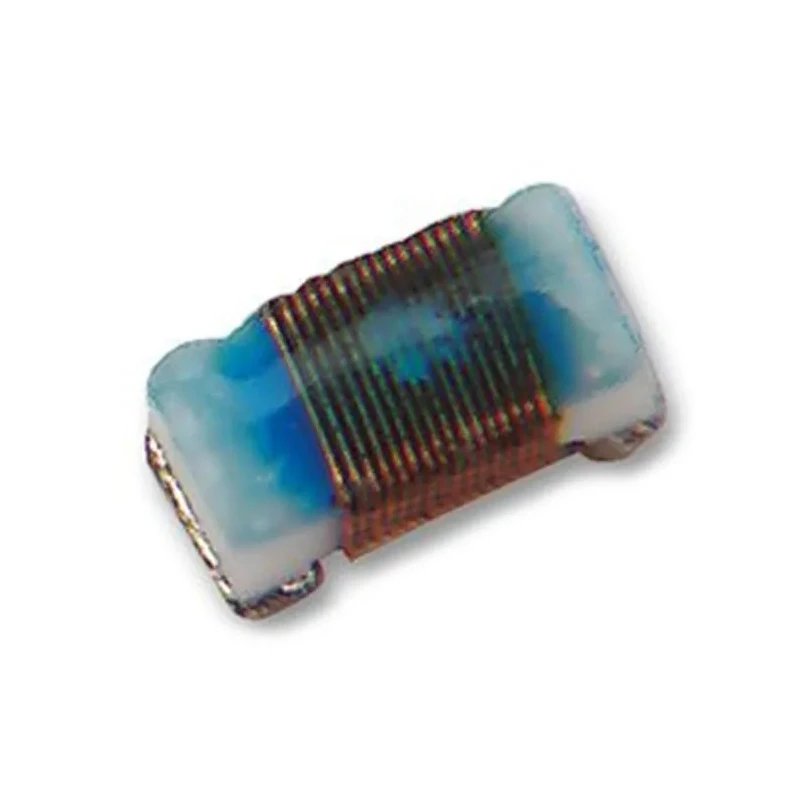

Murata LQW Series Unshielded Wirewound Surface Mount Inductor, Non-Magnetic Ceramic Core, 0.012 μH ±3 %, 1005 LQW15AN12NH00D

The Murata LQW15AN12NH00D is an unshielded wirewound surface mount inductor engineered for demanding high-frequency circuit applications. Designed with a non-magnetic ceramic core, it provides stable inductance and minimizes electromagnetic interference, making it ideal for use in VHF and UHF circuit designs, wireless telecommunication equipment, Bluetooth, GSM, and WLAN modules.

This component features a compact 1005 package, occupying minimal board space in advanced electronic assemblies, especially for portable and high-density PCB applications. With an inductance value of 0.012 μH and tolerance of ±3 %, it delivers precise performance where low tolerance is critical. The wirewound construction enhances resonance frequency and resistance to mechanical stress, supporting reliability and electrical stability.

The inductor supports a maximum DC current of 500 mA, allowing transmission of significant current while maintaining inductive behavior, and a DC resistance of 140 mΩ. It is suited for applications that require high-quality inductance and resilience against temperature and environmental changes, as the device operates efficiently from -55°C to 125°C. Its two solderable terminals ensure simple surface mount installation and dependable connectivity.

The non-magnetic ceramic core optimizes performance for high-frequency circuits. Its RoHS compliance and high minimum quality factor (Q ≥ 30) reinforce suitability for consumer electronics, communication modules, industrial controls, and advanced PCB designs. The wirewound inductor construction provides high resonance frequency, essential for minimizing signal losses and ensuring consistent circuit behavior at very high frequencies.

This Murata inductor provides a blend of high-quality construction, reliable inductance, and precision for wireless telecommunications, networking equipment, and industrial electronics requiring robust surface mount passive components.

Compact footprint for modern PCB layouts in 1005 package. High inductance accuracy and stable core materials. Wide temperature range for harsh environments. Wirewound construction for excellent electrical performance and durability.

RoHS compliant and built to Murata's advanced quality standards. Suitable for high-frequency wireless telecom, mobile, and industrial applications. Explore more Murata inductors in the Surface Mount Inductor category at EnvMart for advanced passive components in high-performance electronics.
