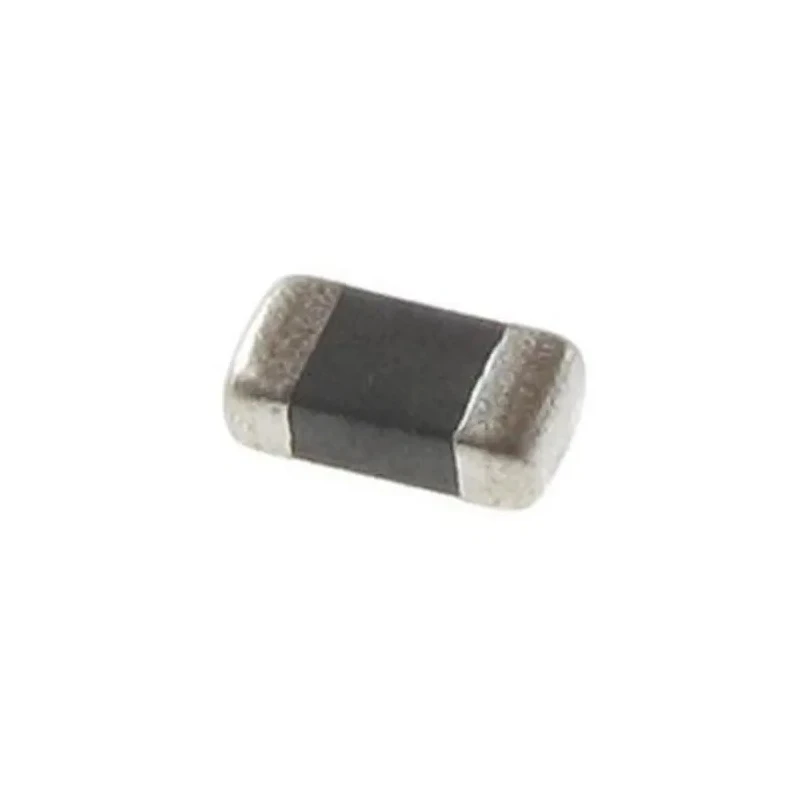

Murata Ferrite Bead 0.85 mm Surface Mount (0805 Chip Bead) 600 Ω Impedance at 100 MHz BLM21AG601SH1D

Murata BLM21AG601SH1D ferrite bead is a surface mount device in an 0805 package, with a height of 0.85 mm and dimensions of 2 mm length and 1.25 mm depth. It provides a high impedance of 600 Ω at 100 MHz, making it ideal for EMI filtering in various electronic circuits.

This chip bead is designed to act nearly as a resistor at noise frequencies, reducing the possibility of resonances while leaving signal waveforms undistorted. Its nickel barrier electrode construction ensures excellent solder heat resistance during manufacturing processes.

The ferrite bead supports a continuous current of up to 600mA with a maximum DC resistance of 0.21Ω, offering efficient noise suppression with minimal power loss. It operates reliably in temperature ranges from -55°C to 125°C, making it suitable for automotive, safety, powertrain, and industrial electronics applications.

The product complies with environmental standards RoHS and REACH and meets automotive standard AEC-Q200, confirming its suitability for automotive and other demanding environments. Manufactured in Japan, it ensures premium build quality and performance consistency.

Compact 0805 surface mount package suitable for dense PCB layouts. High impedance of 600 Ω at 100 MHz to attenuate high-frequency noise effectively. Current rating of 600mA supports moderate power electronic circuits. Operating temperature range from -55°C to 125°C for reliable performance in harsh environments.

Maximum DC resistance of 0.21Ω ensures minimal power loss. Constructed from high-quality ferrite material for excellent suppression of electromagnetic interference. Compliant with RoHS and REACH environmental standards. Certified to automotive standard AEC-Q200 for automotive and industrial applications.

Nickel barrier external electrodes provide superior solder heat resistance. Manufactured in Japan ensuring high-quality production and consistency.

This ferrite bead is widely used in industrial electronics, automotive electronics, powertrain control units, and safety systems where EMI filtering is critical. It is suitable for design engineers and technicians requiring high reliability in noise suppression components for compact PCB footprints.
