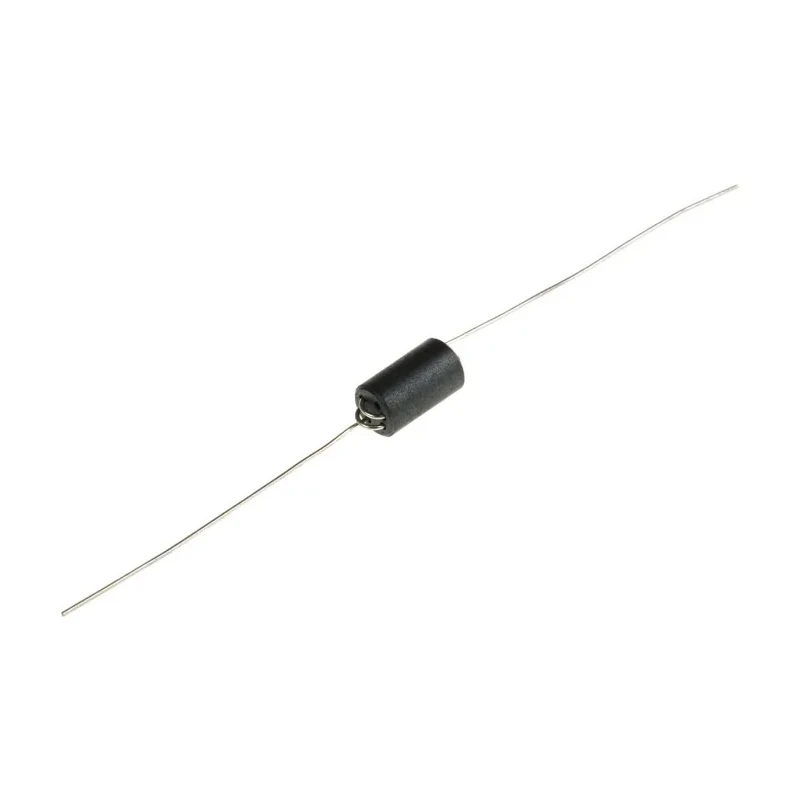

Wurth Elektronik Ferrite Bead 6 mm Axial Through Hole 6-Hole 489Ω at 25 MHz 600Ω at 100 MHz 3A Current Rating 7427503
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 6mm |
| Brand | Wurth Elektronik |
| Material | 3W180 |
| Height | 6mm |
| Length | 10mm |
| Model | 7427503 |
| Packaging | Bulk |
| Mount Type | Through Hole |
| Current Rating | 3A |
| Series | WE-UKW |
| Maximum Operating Temperature | 125°C |
| Package Type | Axial |
| Sub Type | 6-Hole |
| Minimum Operating Temperature | -25°C |
| Standards/Approvals | IPC/JEDEC J-STD-020D |
| Pin Count | 2 |
| Maximum DC Resistance | 20mΩ |
| Impedance at 100 MHz | 600Ω |
| Impedance at 25 MHz | 489Ω |
Key Features

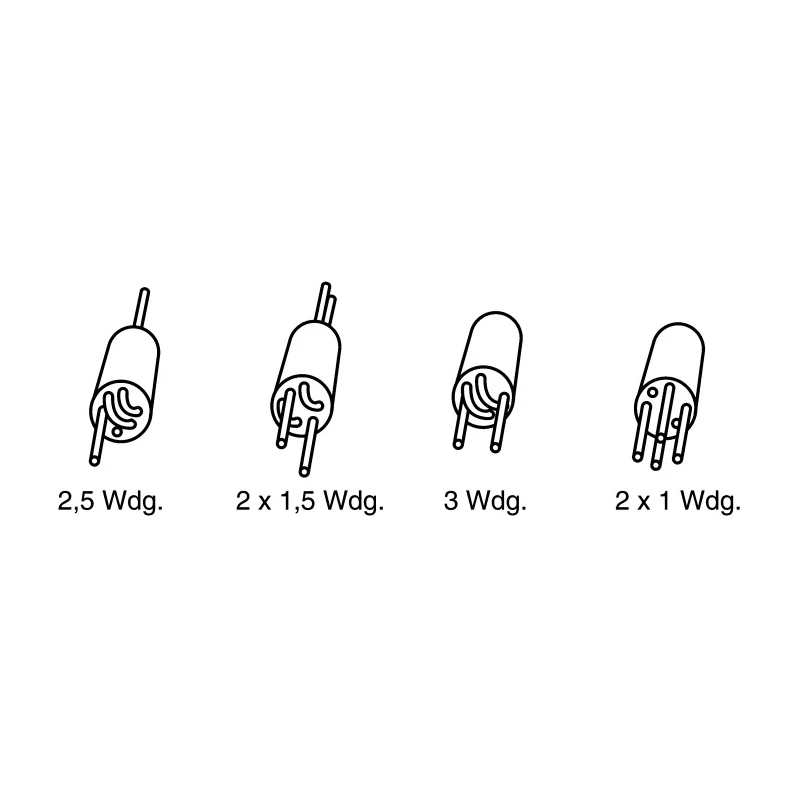

- The ferrite bead features a 6-hole choke core for effective EMI noise reduction.
- It supports a continuous current rating of 3A for reliable circuit protection.
- Impedance rises to 600Ω at 100 MHz, enhancing high-frequency filtering performance.
- Constructed with 3W180 material, providing durable electrical characteristics.
- Operates within a temperature range of -25°C to 125°C, suitable for various environments.
- The compact form factor includes a 6 mm diameter and 10 mm length for PCB integration.
- Maximum DC resistance is 20 milliohms, ensuring minimal signal loss.
- Complies with IPC/JEDEC J-STD-020D standards for quality and reliability.
Product Description
Wurth Elektronik model 7427503 is an axial ferrite bead with a 6 mm diameter designed for through-hole mounting, primarily utilized in electronic circuits to suppress high-frequency interference effectively. The six-hole ferrite core aids in choking undesirable EMI signals, making it an excellent choice for EMI filters and protection applications.
This ferrite bead supports a nominal continuous current of 3A, with the ability to handle short bursts of up to 5A. It exhibits an impedance of 489Ω at 25 MHz and 600Ω at 100 MHz, delivering enhanced noise suppression across a range of frequencies. The component is manufactured using 3W180 material, which ensures robust performance across a wide operating temperature range from -25°C to 125°C.
With dimensions of 6 mm in diameter and 10 mm in length, and a maximum DC resistance of only 20 milliohms, this ferrite bead offers minimal signal attenuation while providing effective interference filtering. The product complies with IPC/JEDEC J-STD-020D standards, ensuring reliability in various industrial and commercial electronics applications including text processing and radio frequency interference protection.
The ferrite bead features a six-hole choke design for effective EMI noise suppression. Supports continuous current up to 3A with short bursts up to 5A for transient protection. Provides impedance of 489Ω at 25 MHz and 600Ω at 100 MHz for broad frequency filtering.
Constructed from 3W180 material ensuring high electrical performance and durability. Operates within a temperature range of -25°C to +125°C for wide application scope. Compact size with 6 mm diameter and 10 mm length for easy PCB mounting.
Maximum DC resistance of 20 milliohms reduces power loss in circuits. Compliant with IPC/JEDEC J-STD-020D standards for industrial-grade quality.
This Ferrite Bead is ideal for industrial, laboratory, manufacturing, and commercial electronic devices requiring EMI filtering and protection. Its through-hole mounting compatibility and robust performance make it reliable for integration in power connectors, EMI filter circuits, and other electronic components.
Explore more Wurth Elektronik products and related categories on EnvMart for advanced electronics components and superior EMI solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model exhibits an impedance of 489Ω at 25 MHz and 600Ω at 100 MHz, providing effective noise suppression across these frequencies.
It supports a continuous current rating of 3A, with the capability to handle short bursts of up to 5A for transient protection.
The ferrite bead has a diameter of 6 mm and a length of 10 mm, making it suitable for PCB integration.
It operates within a temperature range of -25°C to 125°C, allowing for use in various environments.
The maximum DC resistance is 20 milliohms, which helps minimize signal loss in circuits.
It is constructed from 3W180 material, ensuring robust electrical characteristics.
This unit features a through-hole mounting type, facilitating easy integration into electronic circuits.
It complies with IPC/JEDEC J-STD-020D standards, ensuring quality and reliability in electronic applications.
The ferrite bead has a pin count of 2, suitable for its through-hole design.
This model is part of the WE-UKW series, designed for effective EMI filtering applications.
It is suitable for industrial, laboratory, manufacturing, and commercial electronic devices requiring EMI filtering and protection.
The ferrite bead is packaged in bulk, which is typical for electronic components.
