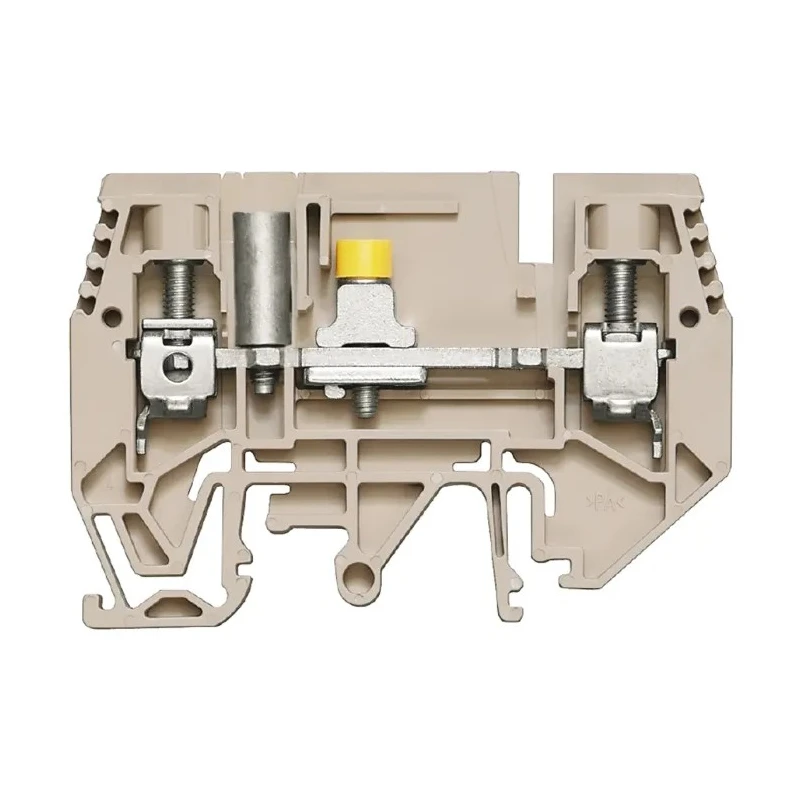

Weidmüller W Series Disconnect Terminal Block Brown, 6mm², 1-Level, Screw Termination 1934800000
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | Weidmüller |
| Colour | Brown |
| Series | W |
| Termination Type | Screw |
| Maximum Operating Temperature | 120°C |
| Number of Levels | 1 |
| Minimum Operating Temperature | -50°C |
| Pitch | 7.9mm |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 8AWG |
| Cable CSA | 6mm² |
| Terminal Block Current | 57A |
Key Features
- Designed to support a current rating of 57 A for reliable power transmission.
- Operates at voltage up to 500 V with high safety standards.
- Constructed from brown nylon 6.6 material with UL94V-0 self-extinguishing rating.
- Supports a wire size range from AWG20 minimum to AWG8 maximum.
- Features snap-on mounting compatible with standard Top Hat DIN rails.
- Suitable for operating temperatures from -50°C to 120°C for versatile environments.
- Offers touch-proof terminals compliant with BS 3042 as safety measure.
- Combines screw clamp and spring connection technologies for versatile use.
Product Description
Weidmüller 1934800000 W Series Disconnect Terminal Block is a high-quality electrical connector designed for industrial and commercial applications requiring secure disconnect and measurement circuits. It is engineered with a single-level screw termination system and supports cable cross sections of 6mm², making it suitable for medium current connections up to 57 A at 500 V.
The brown terminal block is made from durable nylon 6.6, providing a continuous temperature resistance up to 120°C and short-term tolerance up to 180°C. This material is self-extinguishing to UL94V-0 standards, ensuring fire safety in demanding electrical environments.
Its snap-on mounting system fits on standard Top Hat DIN rails (BS5584:1978, EN 50022), simplifying installation and equipment organization within control panels. The terminal block supports wire sizes ranging from AWG20 minimum to AWG8 maximum, accommodating a variety of conductor sizes. The combination of screw clamp and spring connection technology allows for reliable electrical contact and ease of wiring.
Designed for use in industrial, electrical power, and automation systems, this disconnect terminal block ensures safe and sophisticated current and voltage measurements, making it critical in transformer wiring and control circuits.
Safety is further enhanced by touch-proof terminals compliant with BS 3042 standards, protecting personnel from accidental contact. The product is free from cadmium and halogen materials, aligning with environmental compliance standards.
Designed to support a current rating of 57 A for reliable power transmission. Operates at voltage up to 500 V with high safety standards. Constructed from brown nylon 6.6 material with UL94V-0 self-extinguishing rating. Supports a wire size range from AWG20 minimum to AWG8 maximum.
Features snap-on mounting compatible with standard Top Hat DIN rails. Suitable for operating temperatures from -50°C to 120°C for versatile environments. Offers touch-proof terminals compliant with BS 3042 as safety measure.
Combines screw clamp and spring connection technologies for versatile use. Ideal for safe and sophisticated measurement of current and voltage parameters.
This product is engineered for industrial, laboratory, HVAC, manufacturing, and commercial electrical applications that require secure and precise terminal connections on DIN rails.
Explore the Weidmüller product range and other DIN Rail Terminal Blocks at EnvMart for comprehensive electrical connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 57 A, making it suitable for reliable power transmission.
This terminal block operates at a maximum voltage of 500 V.
It accommodates wire sizes ranging from AWG20 minimum to AWG8 maximum.
It is suitable for operating temperatures from -50°C to 120°C.
It is constructed from brown nylon 6.6, which has a UL94V-0 self-extinguishing rating.
It features a snap-on mounting system compatible with standard Top Hat DIN rails.
It utilizes a screw termination system for secure connections.
The pitch of the terminal block is 7.9 mm, which is standard for DIN rail applications.
Yes, it is designed for industrial, laboratory, HVAC, manufacturing, and commercial electrical applications.
The country of origin for this terminal block is India.
