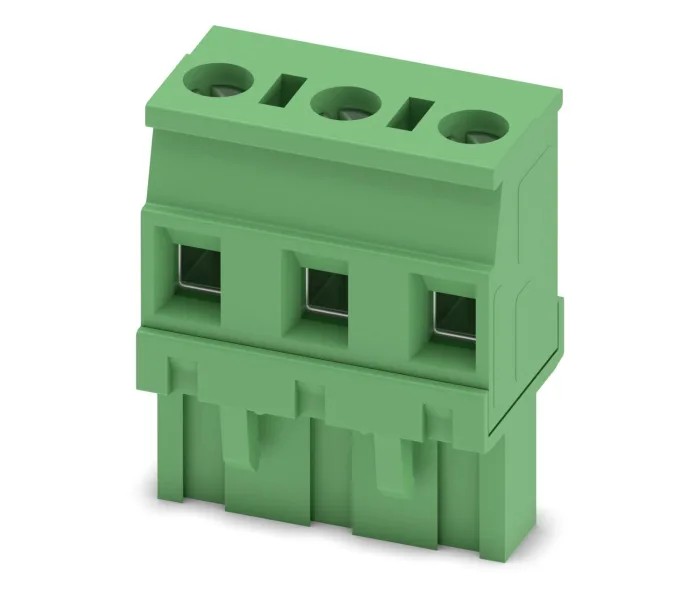

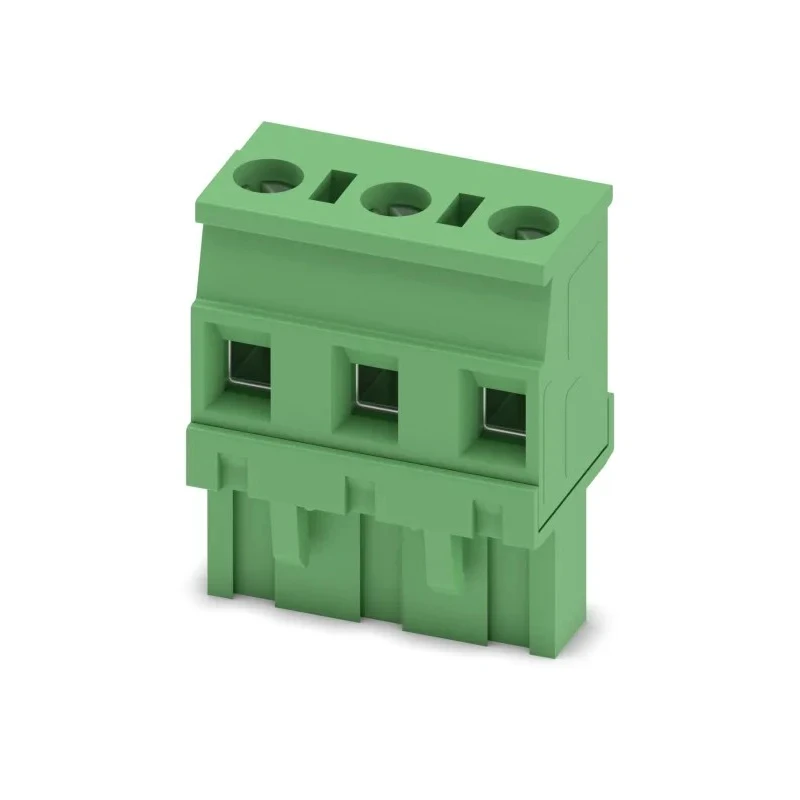

Phoenix Contact GMVSTBR 2.5/3-ST-7.62 Series Pluggable Terminal Block, 3-Contact, 7.62 mm Pitch, 1 Row, 12A 1832536
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Right Angle |
| Current | 12A |
| Length | 12.6mm |
| Model | 1832536 |
| Depth | 26mm |
| Width | 20.82mm |
| Housing Material | Polyamide |
| Series | GMVSTBR 2.5/3-ST-7.62 |
| Number of Rows | 1 |
| Contact Surface | Tin |
| Pitch | 7.62mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 3 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 2mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 12AWG |
| Wire Connection Method | Screw |
| PCB connector, nominal current | 12 A, rated voltage (III/2): 630 V, number of positions: 3, pitch: 7.62 mm, connection method: Screw connection with tension sleeve, colour: green, contact surface: Tin |
Key Features
- Three-contact pluggable terminal block for streamlined PCB connections.
- 7.62 mm pitch provides compatibility with demanding power systems.
- Housing made of durable polyamide ensures flame-retardant safety.
- Supports up to 12A nominal current for robust electrical distribution.
- Right angle orientation facilitates efficient board packing and layout.
- Screw connection with tension sleeve ensures secure and reliable wire attachment.
- Accommodates wire sizes from 2 mm² to 2.5 mm² and AWG 24 to AWG 12.
- Insulated for operator safety to minimize risk of electric shock.
Product Description
The Phoenix Contact GMVSTBR 2.5/3-ST-7.62 pluggable terminal block, model 1832536, is a high-quality, industrial-grade PCB connector designed for reliable signal, data, and power transmission. This terminal block features a 7.62 mm pitch and offers three contact positions, making it ideal for use in complex electronic assemblies where secure and efficient connections are essential.
Constructed with a polyamide housing, the terminal block is flame-retardant, enhancing safety for industrial and commercial environments. The right angle orientation enables compact and efficient board packing, and its compact size (12.6 mm L x 20.82 mm W x 26 mm D) supports installations in space-constrained applications. The green color coding assists in easy identification within panel layouts.
This pluggable terminal block supports a nominal current rating of up to 12A and voltages up to 1 kV, allowing it to deliver reliable performance under demanding electrical conditions. For additional safety, the terminal block can handle surges up to 6 kV. It accommodates wire sizes between 2 mm² and 2.5 mm², as well as AWG 24 to AWG 12, offering broad compatibility with standard wiring practices.
The screw connection method, with a tension sleeve, ensures that wires are securely fixed while minimizing the need for frequent re-tightening. The contact surface is tin-plated, enhancing conductivity and longevity. The terminal block's design means that it is well suited for PCB layouts needing connection in a single row and for applications in automotive manufacturing, food processing, industrial controls, and other sectors requiring robust connectivity solutions.
Integrated tension sleeve for secure and repeatable wire retention. Flame-retardant polyamide housing increases fire safety. RoHS-compliant for environmental responsibility in electronics manufacturing. Compact footprint maximizes PCB board packing efficiency.
Green color facilitates panel identification and layout management.
This terminal block is typically used in industrial automation, equipment controls, process instrumentation, and commercial electronics, where performance, safety, and reliability are crucial. Browse more Phoenix Contact connectors and PCB terminal blocks in the PCB Terminal Block category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a nominal current rating of up to 12A, allowing for robust electrical distribution.
The terminal block can handle voltages up to 1 kV, making it suitable for demanding electrical conditions.
Its dimensions are 12.6 mm in length, 20.82 mm in width, and 26 mm in depth.
It accommodates wire sizes from 2 mm² to 2.5 mm² and AWG 24 to AWG 12.
It uses a screw connection method with a tension sleeve, ensuring secure wire attachment.
The housing is made of polyamide, which is flame-retardant for enhanced safety.
This model features three contact positions, facilitating efficient connections in PCB layouts.
The pitch size of this terminal block is 7.62 mm, which provides compatibility with various power systems.
It is green in color, which aids in easy identification within panel layouts.
Yes, it is RoHS-compliant, ensuring environmental responsibility in electronics manufacturing.
It is commonly used in industrial automation, equipment controls, process instrumentation, and commercial electronics.
The terminal block has a right angle orientation, which facilitates efficient board packing and layout.
