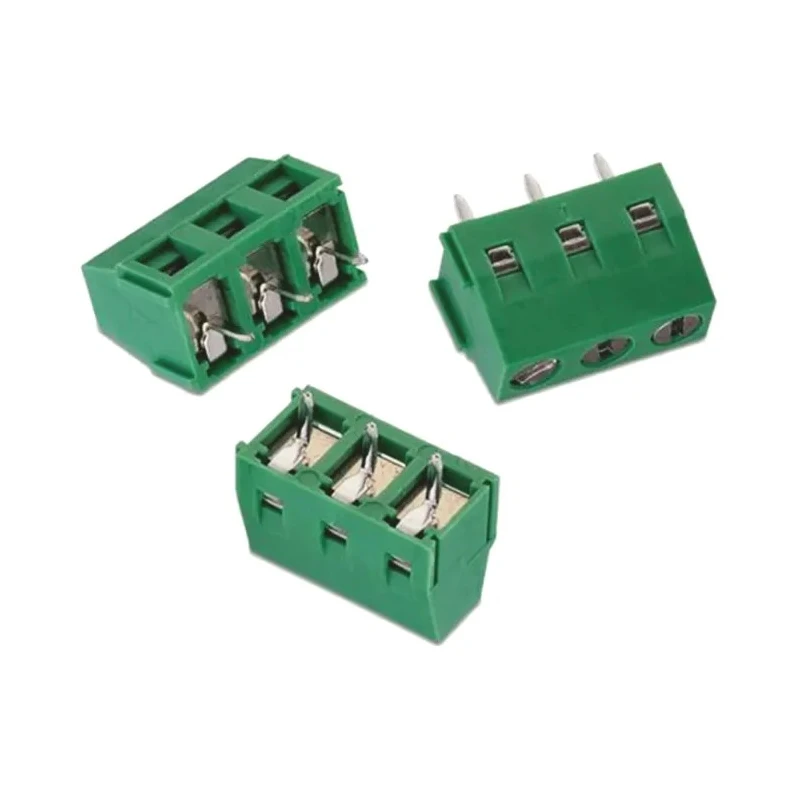

Wurth Elektronik 213 Series PCB Terminal Block, 3-Contact, 5 mm Pitch, 1 Row, 691213710003

Wurth Elektronik 691213710003 PCB Terminal Block from the 213 Series is a high-quality component designed for electronics assemblies requiring reliable and safe connections. This pluggable terminal block features a 3-contact configuration with a 5 mm pitch and a single row, making it suitable for compact PCB layouts in industrial and electronic equipment.

The housing is constructed of durable polyamide material with a green UL94-V0 PA66 rating, providing flame retardancy and excellent insulation properties. The contacts consist of tin plated brass, which offers resistance against corrosion and ensures reliable electrical performance over time.

This terminal block supports wire sizes ranging from 26 AWG to 16 AWG (0.13 mm² to 1.31 mm²) and uses a rising cage clamp connection method. This allows for secure horizontal entry of wires using an M2.5 slot type screw terminal, ensuring firm clamping and minimal contact resistance.

Rated for a maximum current of 10A and voltage up to 300 V AC, the block is ideal for various power and signal applications across electronics manufacturing, industrial automation, and control systems.

Detailed dimensions include a length of 15.6 mm, width of 8.3 mm, and depth of 10 mm, enabling easy integration into densely packed circuit boards. The terminal block features a pitch size of 5 mm, ensuring compact PCB layout integration.

Supports a maximum current of 10 A suitable for various electrical applications. Constructed with polyamide housing material providing durability and high insulation. Compatible with wire sizes from 26 AWG to 16 AWG for versatile connectivity.

Designed with a rising cage clamp wire connection method for secure and reliable wiring. The terminal block is oriented straight for simplified horizontal PCB mounting. Voltage rating of 300 V AC ensures safety in high-voltage circuits.

Dimensions include a length of 15.6 mm, width of 8.3 mm, and depth of 10 mm, suitable for compact designs. The connector is green in color with tin plated brass contacts for corrosion resistance. This product complies with Wurth Elektronik's 213 Series standard for modular terminal block connectors.

This PCB Terminal Block is widely used in electronics manufacturing, electrical power distribution, industrial control systems, and automation equipment where secure and reliable connections are needed.
