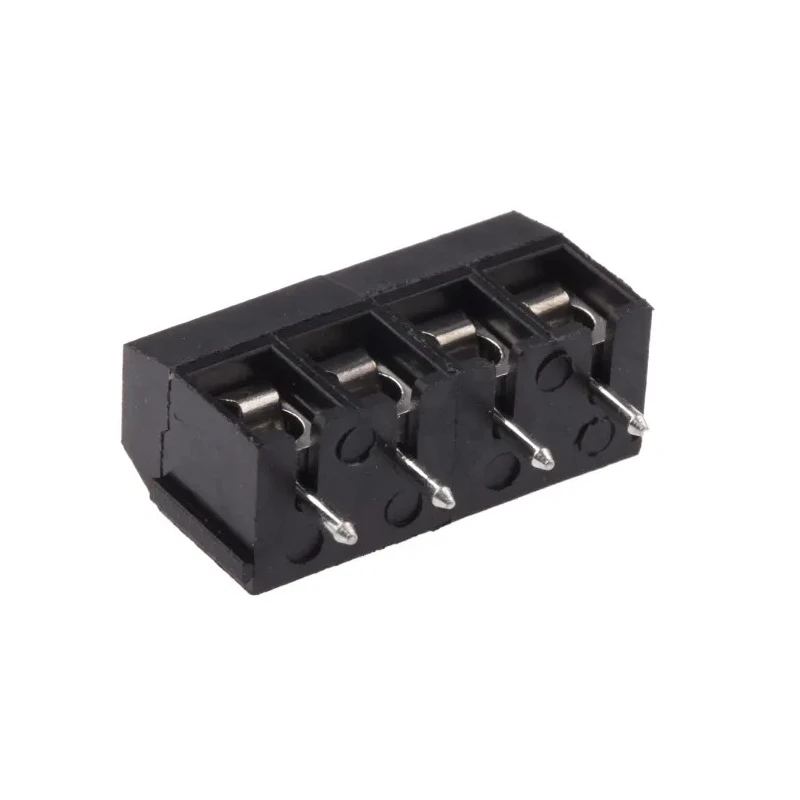

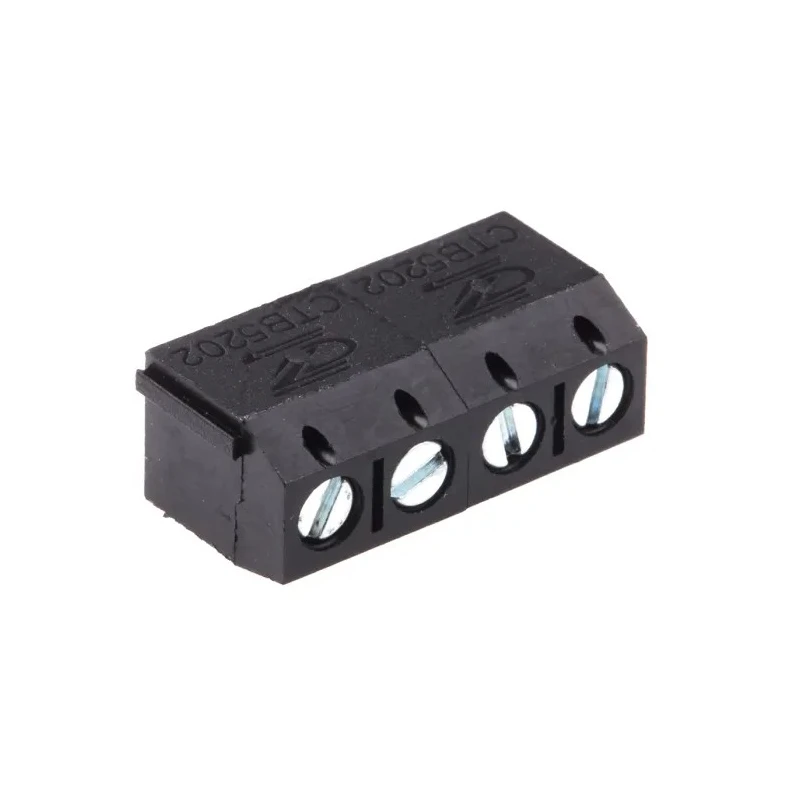

RS PRO PCB Terminal Block, 4-Contact, 5 mm Pitch, 1 Row, 16A, Screw Connection, Polyamide Housing 897-0749

RS PRO 897-0749 PCB Terminal Block is a high-quality, low-profile pluggable terminal block designed for efficient and secure PCB electrical connections. With 4 contact points arranged in a single row and a 5 mm pitch, this component ensures precise and reliable connections for electronic circuits.

Capable of carrying a current of up to 16A and rated for 250V, it is designed to meet the requirements of industrial, commercial, and electronic manufacturing applications. The screw-type wire connection provides a robust and stable termination, while the use of black polyamide housing material ensures durability and flame retardance as per UL94-V0 standards.

The terminal block accommodates wire sizes ranging from 0.32 mm² (14 AWG) to 3.3 mm² (22 AWG), making it versatile for various wiring needs. Its compact form factor with dimensions of 20 mm length, 7.6 mm width, and 10.2 mm depth minimizes PCB footprint while maintaining ease of installation.

Additional features such as stainless steel wire protectors and M2.5 nickel-plated stainless steel screws enhance corrosion resistance and mechanical strength. The straight orientation and guided pin alignment facilitate straightforward PCB mounting and connectivity.

The terminal block supports a current rating of 16A for robust electrical performance. It features a screw connection method that ensures firm wire retention. Constructed with a black polyamide housing offering UL94-V0 flame retardant properties.

Suitable for wire sizes ranging from 0.32 mm² to 3.3 mm² (14 AWG to 22 AWG). The terminal block has a low profile with a compact height of 10.2 mm for efficient PCB space utilization. Its straight orientation supports versatile PCB mounting configurations.

Length, width, and depth measure 20 mm, 7.6 mm, and 10.2 mm respectively to fit standard applications. Designed to operate at a voltage rating of 250V for various electronic applications. Stainless steel wire protectors and nickel-plated stainless steel M2.5 screws provide durability and corrosion resistance.

This component is essential for electronic manufacturing, laboratory equipment, industrial automation systems, and power control circuits requiring reliable PCB connectivity. Its Chinese origin assures a consistent production standard aligned with industry needs.
