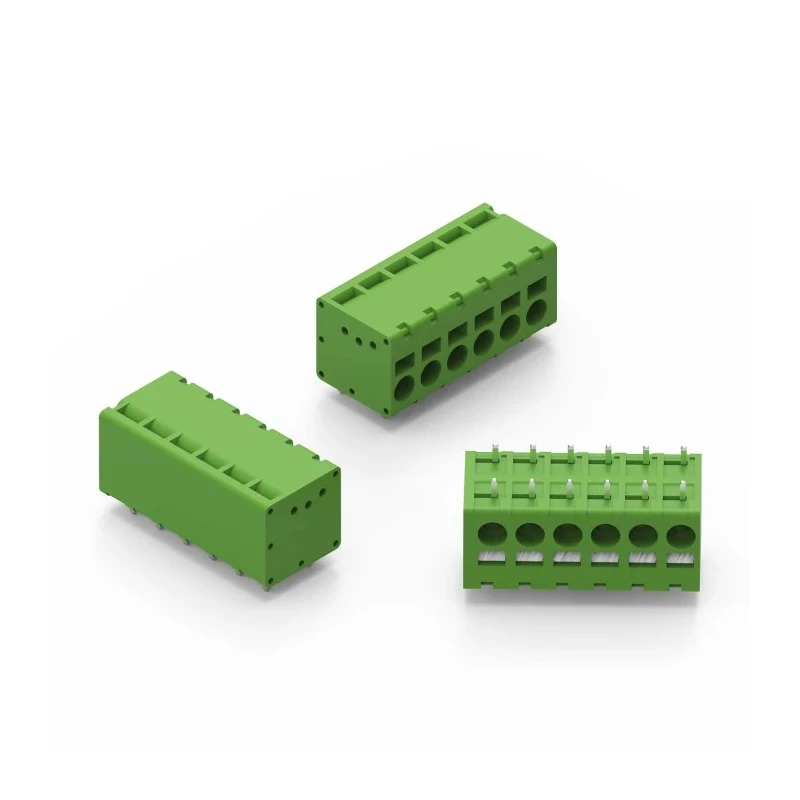

Wurth Elektronik WR-TBL Series PCB Terminal Block 6-Contact 5.08 mm Pitch 1 Row 300V Push-in Connection 691406510006B

Wurth Elektronik 691406510006B WR-TBL Series PCB Terminal Block is a high-quality connector component engineered for electronic and electrical applications requiring reliable printed circuit board connections. This pluggable terminal block features a 6-contact configuration with a 5.08 mm pitch and single-row design. It is ideal for current loads up to 20A with a rated voltage of 300V, making it suitable for industrial, automation, power distribution, and manufacturing equipment.

The terminal block incorporates a push-in spring connection method, allowing fast, tool-free wiring with cable sizes ranging from 0.2 mm² to 2.5 mm², including both solid and stranded conductors from AWG 24 to 12. Its robust green polyamide housing provides strong mechanical resistance, excellent electrical insulation, and flame retardant properties certified to UL94 V-0 standards.

Measuring 31.88 mm in length, 14.4 mm in width, and 13.05 mm in depth, the compact design facilitates efficient board space utilization while ensuring secure horizontal mounting orientation. The contact resistance is kept low at approximately 20 milliohms to maintain signal integrity and reduce energy loss. It operates reliably in temperature conditions ranging from -40°C to +105°C, suitable for harsh environments.

This PCB terminal block is sourced from China and forms part of the WR-TBL series known for engineering precision and durability. It does not include specific approvals but adheres to industry-standard specifications for terminal blocks. This product is suited for use in electronic component assemblies, power connectors, and other industrial electrical setups requiring dependable, stable PCB connections.

Features a push-in spring connection for easy wire insertion and maintenance. Supports cables from 0.2 to 2.5 mm² or AWG 24 to 12 solid or stranded wires. Constructed with green polyamide housing for durability and insulation.

Operates at a current rating of 20A and voltage rating of 300V. Compact dimensions including length 31.88 mm, width 14.4 mm, and depth 13.05 mm. Designed for horizontal orientation and has UL94 V-0 flammability rating. Contact resistance of approximately 20 mΩ ensures reliable electrical connections.

Operating temperature range is from -40°C up to +105°C.

This product is ideal for use in industrial manufacturing settings, electronic device assembly, automation systems, power connectors, and PCB wiring applications. Explore more Wurth Elektronik solutions and PCB Terminal Block options on EnvMart for your precise connection needs.
