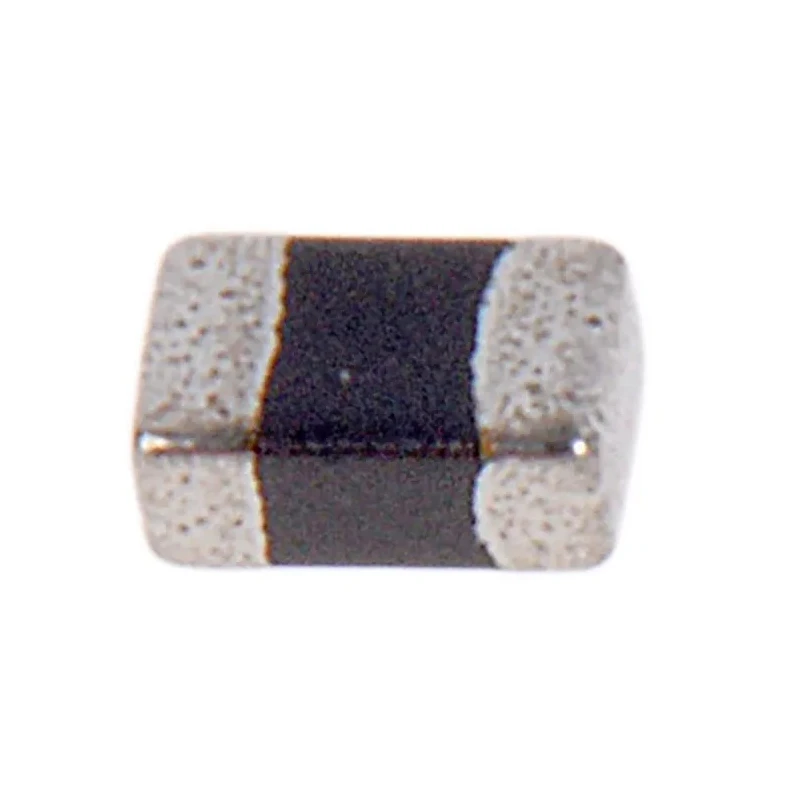

Murata Ferrite Bead 0.85 mm Surface Mount 0805 Chip Ferrite Bead 600 Ω Impedance at 100 MHz BLM21RK601SN1D

Free Delivery in India | Lowest Global Shipping Charges

Murata Ferrite Bead 0.85 mm Surface Mount 0805 Chip Ferrite Bead 600 Ω Impedance at 100 MHz BLM21RK601SN1D

Name: Murata Ferrite Bead 0.85 mm Surface Mount 0805 Chip Ferrite Bead 600 Ω Impedance at 100 MHz BLM21RK601SN1D
Brand: Murata
SKU: 103485
Price: 0.06 USD
Availability: InStock



Category Ferrite Bead Brand Murata Condition New

Specifications

Country of Origin	Japan
Brand	Murata
Material	Ferrite
Height	0.85mm
Length	2mm
Model	BLM21RK601SN1D
Depth	1.25mm
Mount Type	Surface
Current Rating	200mA
Series	BLM21RK
Maximum Operating Temperature	125°C
Package Type	0805
Sub Type	Chip Ferrite Bead
Minimum Operating Temperature	-55°C
Standards/Approvals	REACH, RoHS
Maximum DC Resistance	300mΩ
Impedance at 100 MHz	600Ω

Key Features

Provides 600 Ω impedance at 100 MHz for effective EMI noise filtering.
Compact 0805 package size with dimensions 2 mm x 0.85 mm x 1.25 mm.
Rated for continuous current of 200 mA to suit low power applications.
Operates reliably between -55°C and 125°C temperature range.
Constructed of ferrite material ensuring stable EMI suppression performance.
Surface mount device (SMD) type for easy PCB assembly.
Maximum DC resistance of 300 mΩ to minimize power losses.
Complies with ROHS and REACH standards for environmental compliance.

Product Description

Murata BLM21RK601SN1D ferrite bead is a 0.85 mm surface mount 0805 chip ferrite bead designed to provide effective EMI suppression with a 600 Ω impedance at 100 MHz. This component is intended for use in digital interface circuits to reduce electromagnetic interference and improve signal integrity.

The ferrite bead features a compact surface mount design with dimensions of 2 mm length, 0.85 mm height, and 1.25 mm depth making it suitable for dense PCB layouts. It supports a continuous current rating of 200 mA and a maximum DC resistance of 300 mΩ, balancing noise filtering and power efficiency.

Constructed from high-quality ferrite material, the bead ensures stable performance across a wide operating temperature range from -55°C to 125°C, making it viable for harsh industrial and electronic environments. It conforms to environmental standards including RoHS and REACH ensuring compliance with regulations.

Its design minimizes resonance possibilities and avoids signal distortion, essential for digital interface applications requiring precise EMI filtering. The device is surface mounted, facilitating automated PCB assembly processes to improve production efficiency.

Manufactured in Japan, the BLM21RK601SN1D ferrite bead combines reliability and quality, making it an excellent choice for industrial, consumer electronics, telecommunications, and other electronics manufacturing sectors.

Provides 600 Ω impedance at 100 MHz for EMI noise suppression. Compact 0805 surface mount package suitable for dense PCBs. Supports 200 mA continuous current rating for low power applications. Operates within -55°C to 125°C ensuring stable thermal performance.

Made of ferrite material for optimal EMI filtering effectiveness. Maximum DC resistance capped at 300 mΩ to reduce power loss. RoHS and REACH compliant for environmental safety. Manufactured in Japan for quality assurance.

Designed for digital interface EMI filtering in electronic devices. Surface mount device compatible with automated PCB assembly. Explore more high-quality electronic components and Ferrite Beads in the Electronics & Electricals category at EnvMart for your industrial and commercial requirements.
